Home > All Industries > Boost DC DC Converter > 12v to 24v Boost DC-DC Converter

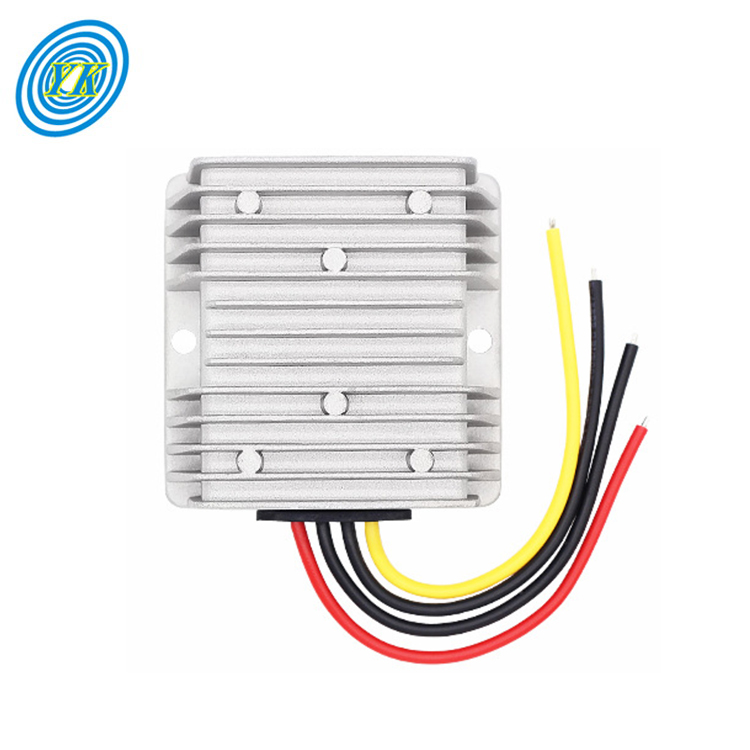

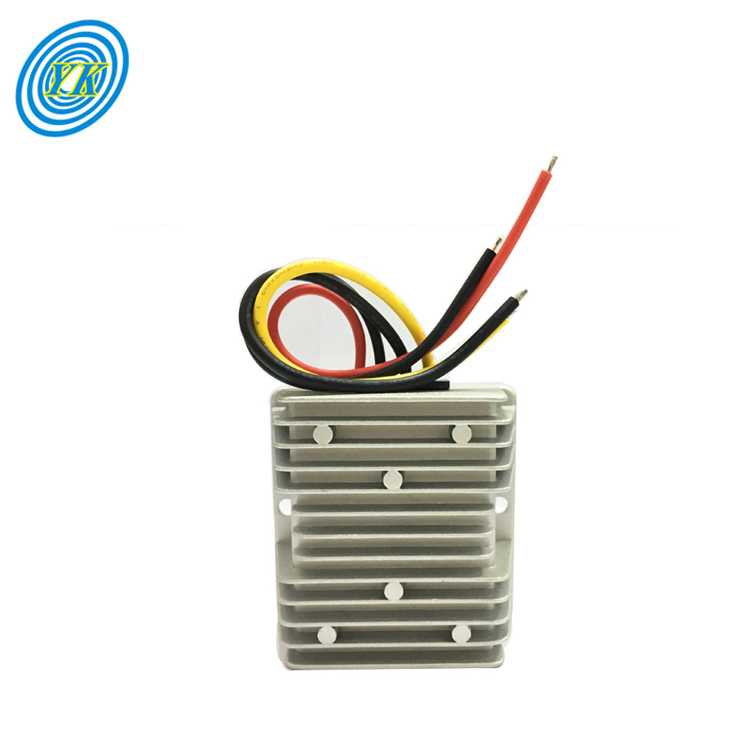

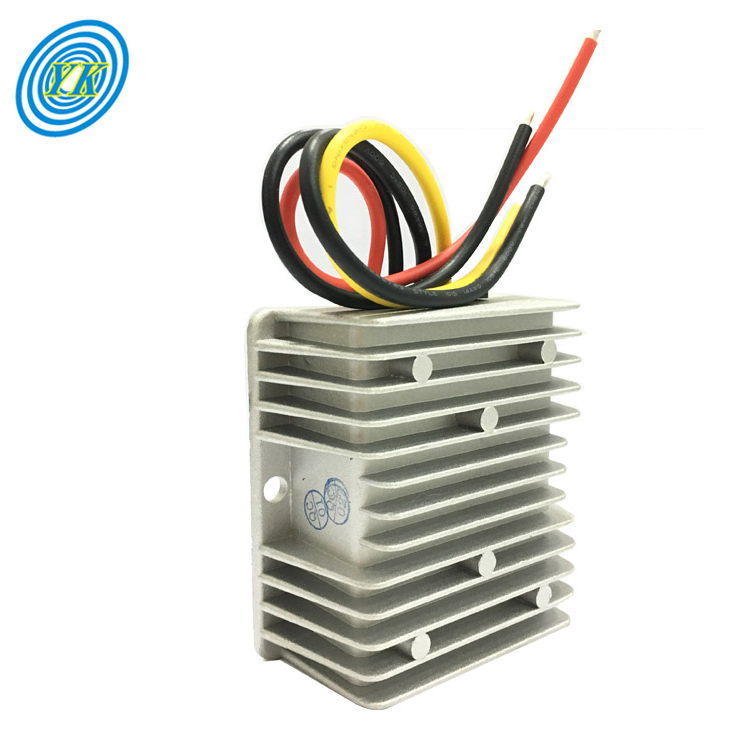

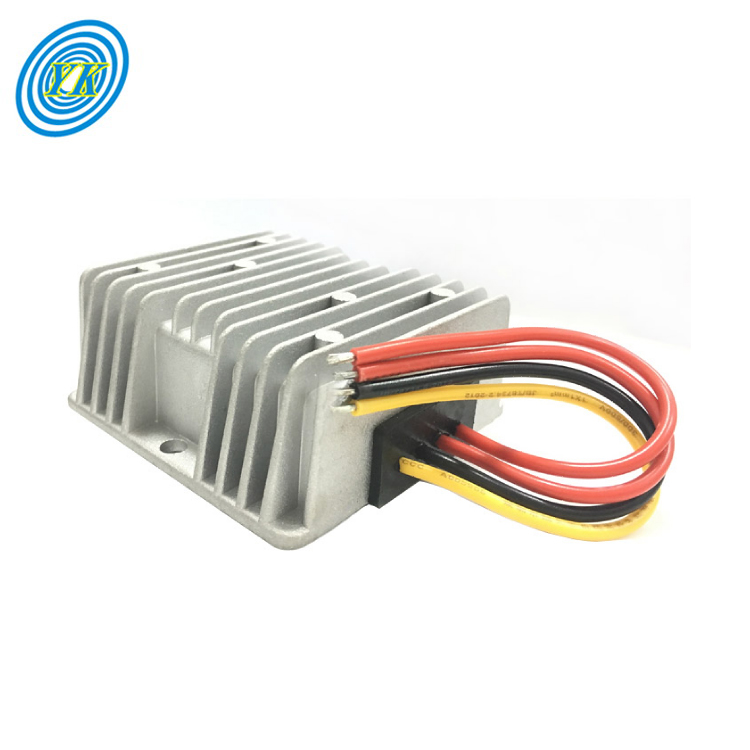

  • dc dc converter 12v to 24v 5a dc converter for electric bike step up boost converter 5a 120w
  • Move the mouse over the graph to enlarge the picture
  • dc dc converter 12v to 24v 5a dc converter for electric bike step up boost converter 5a 120w dc dc converter 12v to 24v 5a dc converter for electric bike step up boost converter 5a 120w dc dc converter 12v to 24v 5a dc converter for electric bike step up boost converter 5a 120w dc dc converter 12v to 24v 5a dc converter for electric bike step up boost converter 5a 120w dc dc converter 12v to 24v 5a dc converter for electric bike step up boost converter 5a 120w

dc dc converter 12v to 24v 5a dc converter for electric bike step up boost converter 5a 120w

USD 6.5-8.24

  • Input Voltage
  • 12Vdc(9-16Vdc)
  • Output Voltage
  • 24Vdc
  • Output Power
  • 120W
  • Customization
  • Customized logo (Min. Order: 300 Sets)

    Customized packaging (Min. Order: 300 Sets)

    Graphic customization (Min. Order: 300 Sets)

  • Protection
  • Trade Assurance

    On-time Dispatch Guarantee

    Refund Policy

  • Product Details

    Quick Details

    Product Name:
    DC DC Converter
    Input voltage:
    12V (9-16V)
    Output voltage:
    24V
    Current:
    5A
    Certificate:
    CE ROHS
    Protections:
    Over-current / voltage / load protection
    Warranty:
    1 year
    Working temperature:
    -40 ~ +80°c
    Output rated power:
    120 Watts
    Size:
    74*74*32mm


    Product Description

    1. 100% full power & stable current output

    2. 100% Imported components

    3. 100% waterproof & anti-shock protection, Ultra compact size, light weight

    4. Certificates: CE/RoHS

    5. Waterproof level: IP68

    6. Aluminum shell, epoxy potting, Cooling by free air convection,

    7. Protections: Over-current, Over-voltage, Over-temperature, Over-load and

    8. Short-circuit, Auto-recovery when device is back to normal operating

    9. Non-Isolated Module

    10. 1 year warranty, lifetime up to 100,000 hours.

    Product Parameters

    Model

    YK-DD12S2405

    Input rated voltage

    12VDC

    Input voltage range

    9-16VDC

    Efficiency

    93% (half load)

    Output voltage

    48VDC

    Output current

    5Amps

    Output rated power

    120 Watts

    Output peak power

    125%

    Voltage regulation

    <;;1%

    Load regulation

    <;;2%

    Ripple (full load test)

    240mV (full load)

    No-load current

    40mA @24V input

    Working Temperature

    -40°c ~ +80°c

    Waterproof rating

    IP 68

    Protections

    Over-temperature, Over-voltage

    Machine size

    74*74*32MM

    N. Weight

    250g

    Cooling way

    Free air convection

    Certifications

    CE, RoHS

    Others

    Carton packing


    Detail Images

    photobank (1).jpg

    photobank (3).jpg


    Recommend Products Range

    BUCK DC-DC CONVERTER MODEL LIST
    Model SeriesInput-VOutput-VOutput Current
    YK-DD1224S5**12V/24V5v3A|5A|10A|15A|20A|30A|40A|50A|60A
    YK-DD24S12**24v12v1.5A|3A|5A|8A|10A|15A|20A|30A|40A|50A|60A|85A|100A
    YK-DD24S13.8**24v13.8V
    5A|10A|15A|20A|30A|40A|50A|60A
    YK-DD24S19**24V19V5A|10A|15A
    YK-DD36S12**36V12V5A|10A|15A|20A|30A|50A|60A
    YK-DD48S5**48V5V5A|10A|15A|20A
    YK-DD48S12**48V12V5A|10A|15A|20A|30A|40A|50A|60A
    YK-DD48S13.8**48V13.8V5A|10A|15A|20A|30A|40A|50A|60A
    YK-DD48S19**48V19V5A|8A|10A
    YK-DD48S24**48V24V3A|5A|10A|15A|20A|30A|40A|50A
    YK-DD60S12**60V12V5A|10A|15A
    YK-DD60S24**60V24V5A|10A
    BOOST DC-DC CONVERTER MODEL LIST
    Model SeriesInput-VOutput-VOutput Current
    YK-DD12S24**12V24V1A|2A|3A|5A|8A|10A|15A|20A|25A|30A|40A|50A
    YK-DD12S19**12V19V5A|8A|10A|15A|20A
    YK-DD12S28**12V28V3A|5A|8A|10A|15A|20A|25A|30A|40A
    YK-DD12S48**12V48V1A|2A|3A|4A|8A|10A|15A|20A
    YK-DD24S48**24V48V3A|5A|10A|20A|30A|40A
    YK-DD24S36**24V36V5A
    BUCK& BOOST DC-DC CONVERTER MODEL LIST
    Model SeriesInput-VOutput-VOutput Current
    YK-DD12S12**8-40V12V1A|2A|3A|5A|6A|10A|15A|20A|25A
    YK-DD12S13.8**8-40V13.8V3A|5A|10A|15A|20A|25A
    YK-DD24S24**9-40V24V2A|3A|4A|6A|10A|15A
