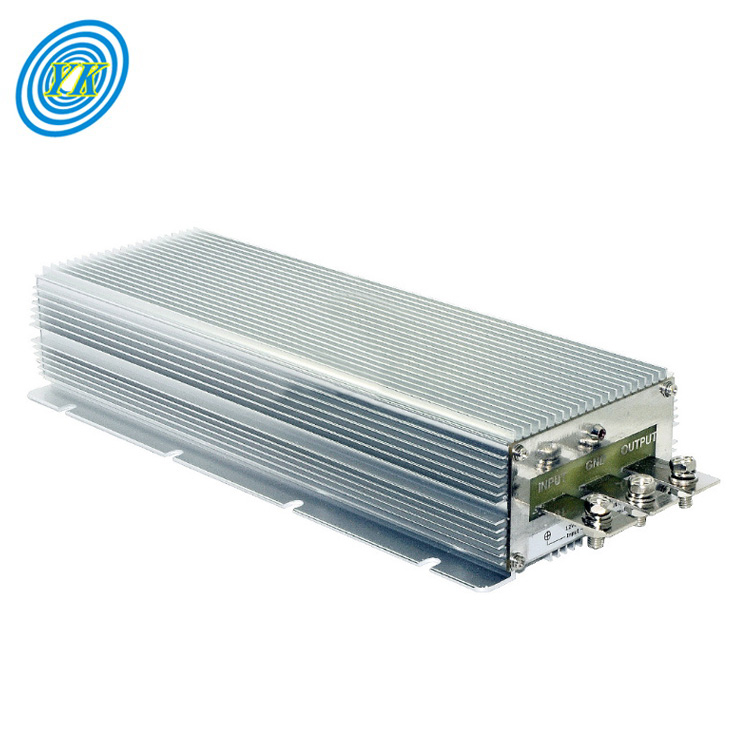

YUCOO High voltage dc to dc converters 12v to 48v step up converter 20A 960w booster IP68

88.94~97.65USD

Input Voltage

12VDC

Output Voltage

48VDC

Output Voltage

20A

Output Power

960W

Customization

Customized logo (Min. Order: 300 Sets)

Customized packaging (Min. Order: 300 Sets)

Graphic customization (Min. Order: 300 Sets)

Protection

Trade Assurance

On-time Dispatch Guarantee

Refund Policy

Product Details

Quick Details

Product name:: dc to dc step up booster

Place of Origin:: Guangdong, China

Brand Name:: YUCOO

Output Type:: Single

Type:: DC/DC Converters

Input voltage range:: 9-16V DC

Voltage regulation:: < 1%

Load regulation:: < 2%

Output peak power:: 125%

Ripple (full load test):: < 120-130mV

No-load current:: < 30mA

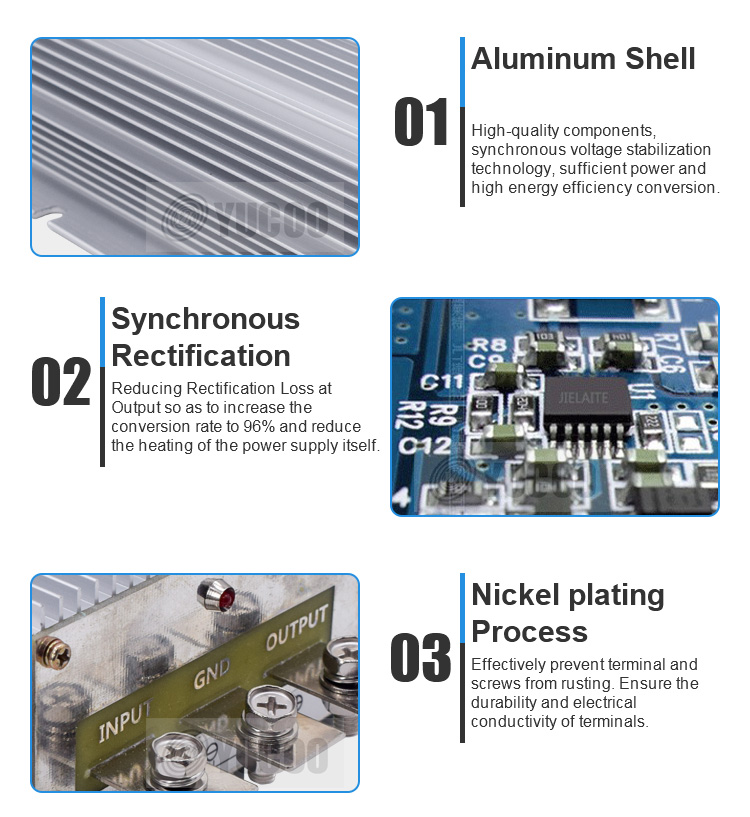

Product Description

1. Constant voltage design

2. SMT Process

3. Non-Isolated Module

4. Wide input range

5. Built-in EMI filter, low ripple noise

6.100% full load burn-in test

7. Certificates :CE

8. Waterproof level : IP67

9. Protections: Short circuit/Over load /voltage /Automatic recovery work

10. Ultra compact size, light weight , high reliability

11. 1 year warranty, lifetime up to 100,000 hours

Product Parameters

Product name	DC DC Converter
Model	YK-DD12S4820
Input Voltage	12 VDC
Voltage range	9~16 VDC
Output Voltage	48 VDC
Output Current	20 Amps
Output Power	960 Watts
Effciency	93%
Working temperature	-40℃~+80℃
Weight	2.3Kg

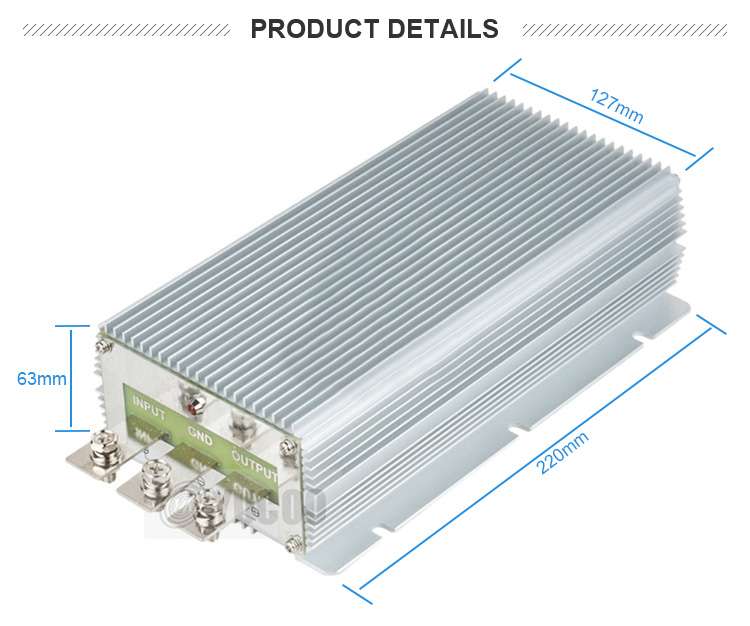

Size	22012763MM
Installation length	13-15cm

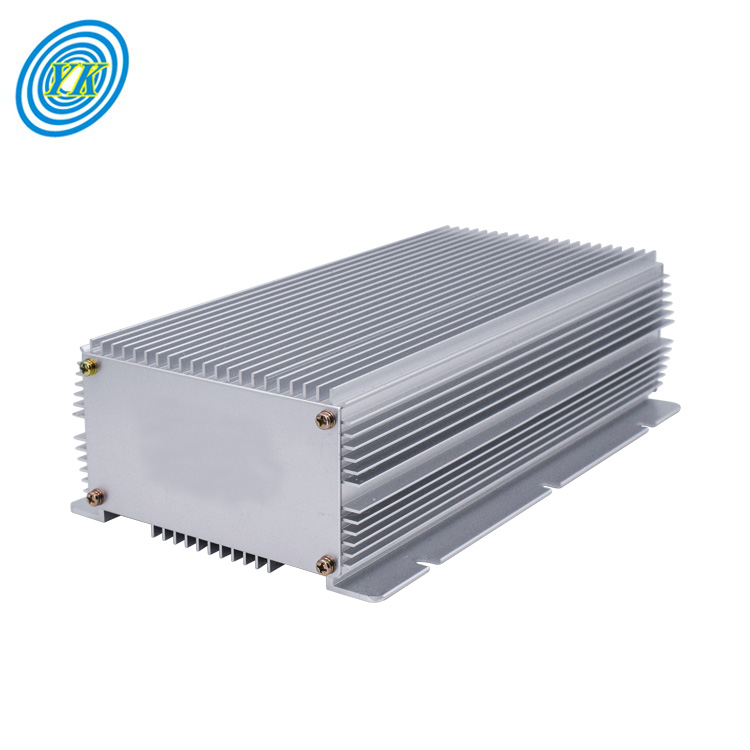

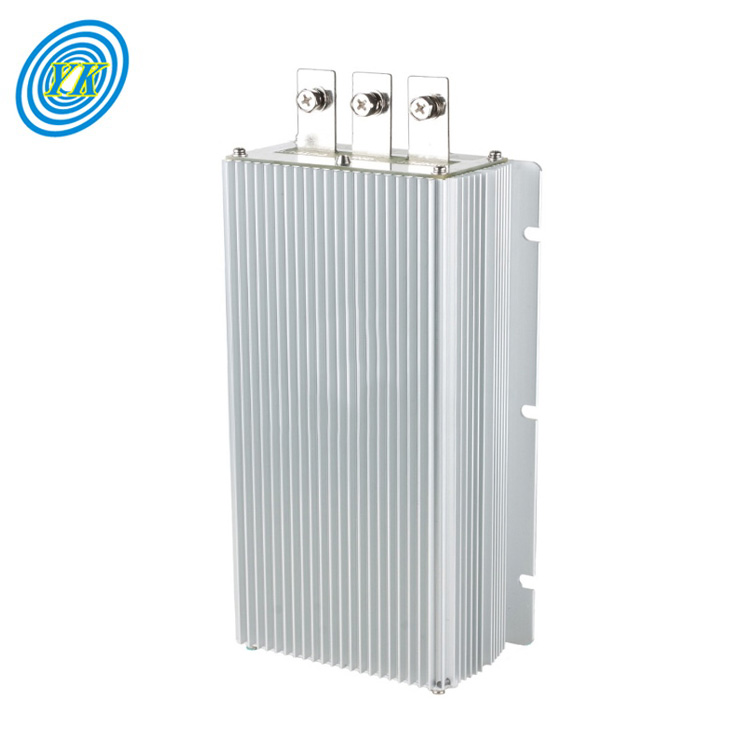

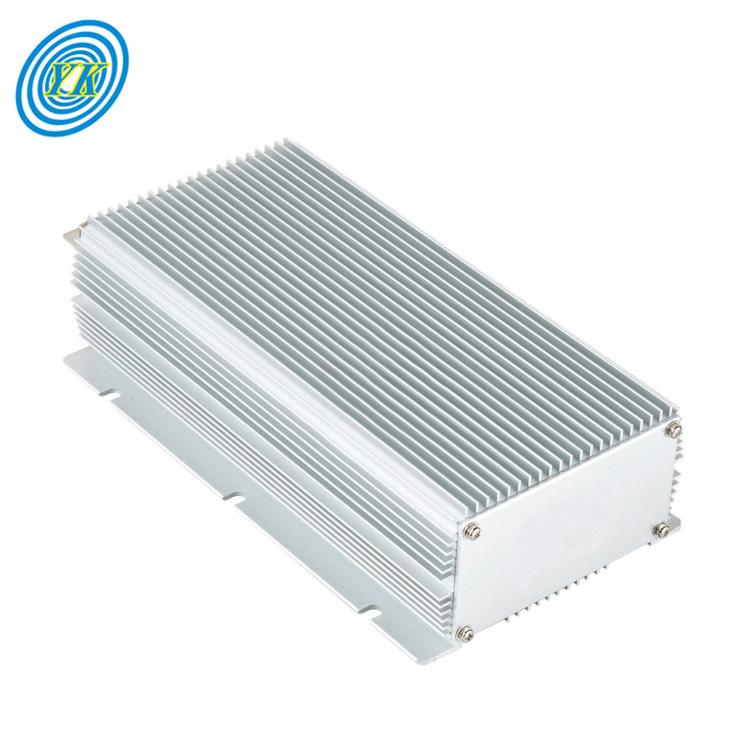

Details Images

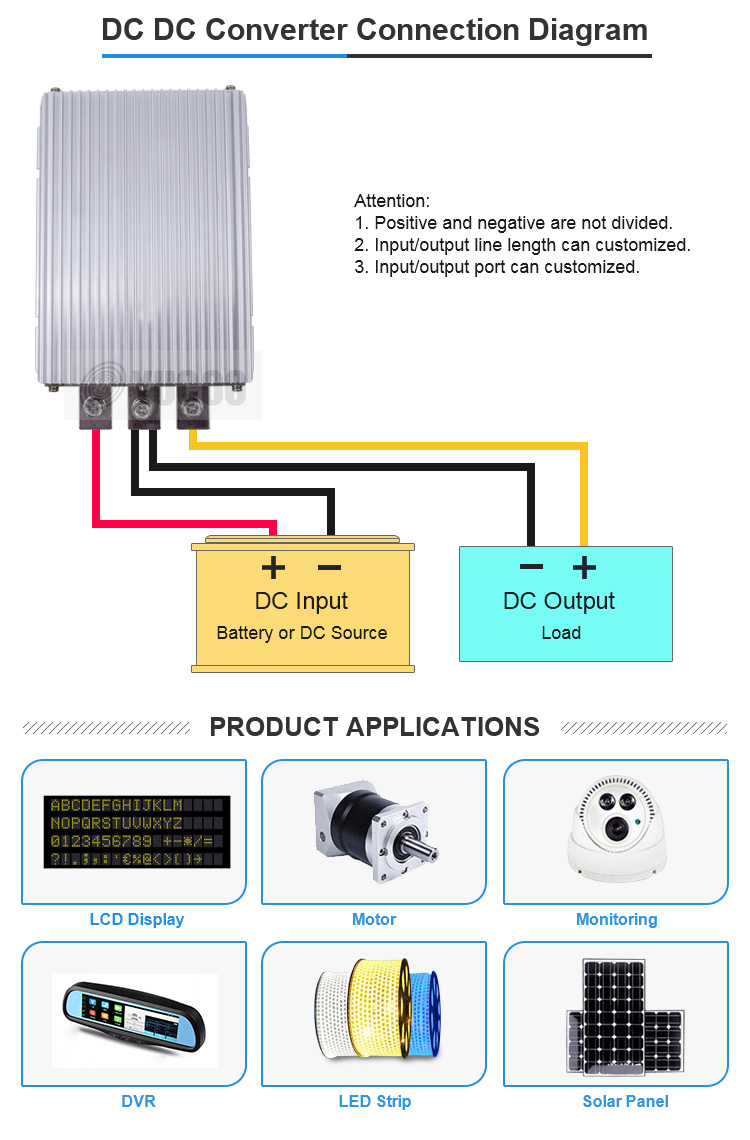

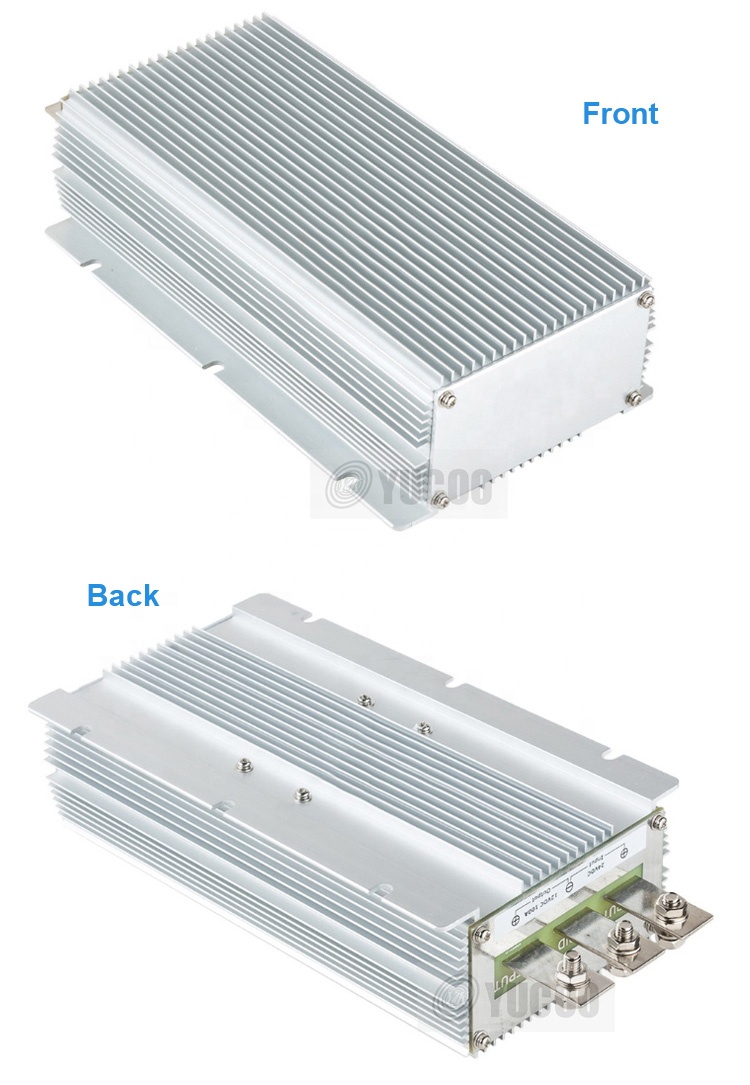

dc dc cnverter (1).jpg dc dc cnverter (2).jpg dc dc cnverter (3).jpg dc dc cnverter (4).jpg dc dc cnverter (5).jpg

Recommend Products Range

BUCK DC-DC CONVERTER MODEL LIST
Model Series	Input-V	Output-V	Output Current
YK-DD1224S5**	12V/24V	5v	3A\|5A\|10A\|15A\|20A\|30A\|40A\|50A\|60A
YK-DD24S12**	24v	12v	1.5A\|3A\|5A\|8A\|10A\|15A\|20A\|30A\|40A\|50A\|60A\|85A\|100A
YK-DD24S13.8**	24v	13.8V	5A\|10A\|15A\|20A\|30A\|40A\|50A\|60A
YK-DD24S19**	24V	19V	5A\|10A\|15A
YK-DD36S12**	36V	12V	5A\|10A\|15A\|20A\|30A\|50A\|60A
YK-DD48S5**	48V	5V	5A\|10A\|15A\|20A
YK-DD48S12**	48V	12V	5A\|10A\|15A\|20A\|30A\|40A\|50A\|60A
YK-DD48S13.8**	48V	13.8V	5A\|10A\|15A\|20A\|30A\|40A\|50A\|60A
YK-DD48S19**	48V	19V	5A\|8A\|10A
YK-DD48S24**	48V	24V	3A\|5A\|10A\|15A\|20A\|30A\|40A\|50A
YK-DD60S12**	60V	12V	5A\|10A\|15A
YK-DD60S24**	60V	24V	5A\|10A
BOOST DC-DC CONVERTER MODEL LIST
Model Series	Input-V	Output-V	Output Current
YK-DD12S24**	12V	24V	1A\|2A\|3A\|5A\|8A\|10A\|15A\|20A\|25A\|30A\|40A\|50A
YK-DD12S19**	12V	19V	5A\|8A\|10A\|15A\|20A
YK-DD12S28**	12V	28V	3A\|5A\|8A\|10A\|15A\|20A\|25A\|30A\|40A
YK-DD12S48**	12V	48V	1A\|2A\|3A\|4A\|8A\|10A\|15A\|20A
YK-DD24S48**	24V	48V	3A\|5A\|10A\|20A\|30A\|40A
YK-DD24S36**	24V	36V	5A
BUCK& BOOST DC-DC CONVERTER MODEL LIST
Model Series	Input-V	Output-V	Output Current
YK-DD12S12**	8-40V	12V	1A\|2A\|3A\|5A\|6A\|10A\|15A\|20A\|25A
YK-DD12S13.8**	8-40V	13.8V	3A\|5A\|10A\|15A\|20A\|25A
YK-DD24S24**	9-40V	24V	2A\|3A\|4A\|6A\|10A\|15A
