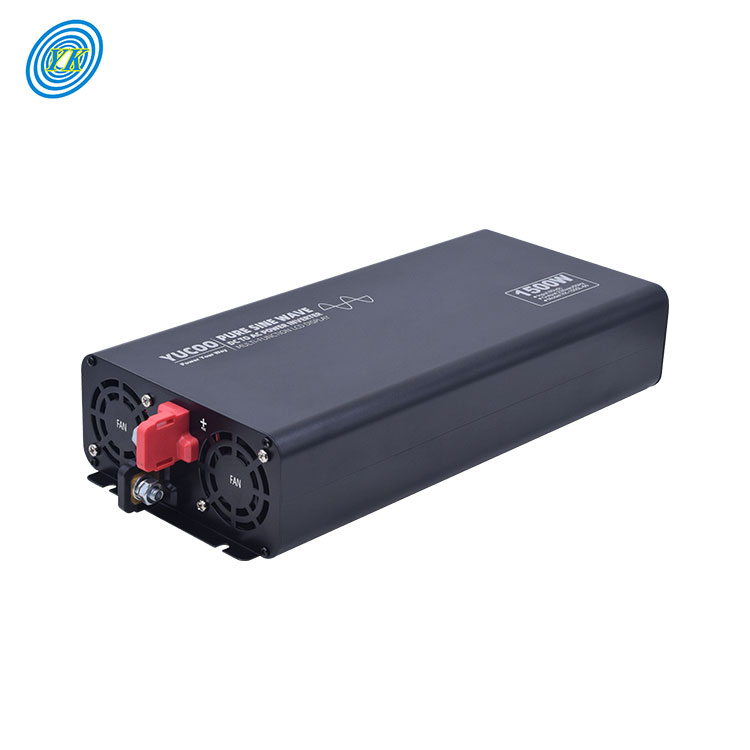

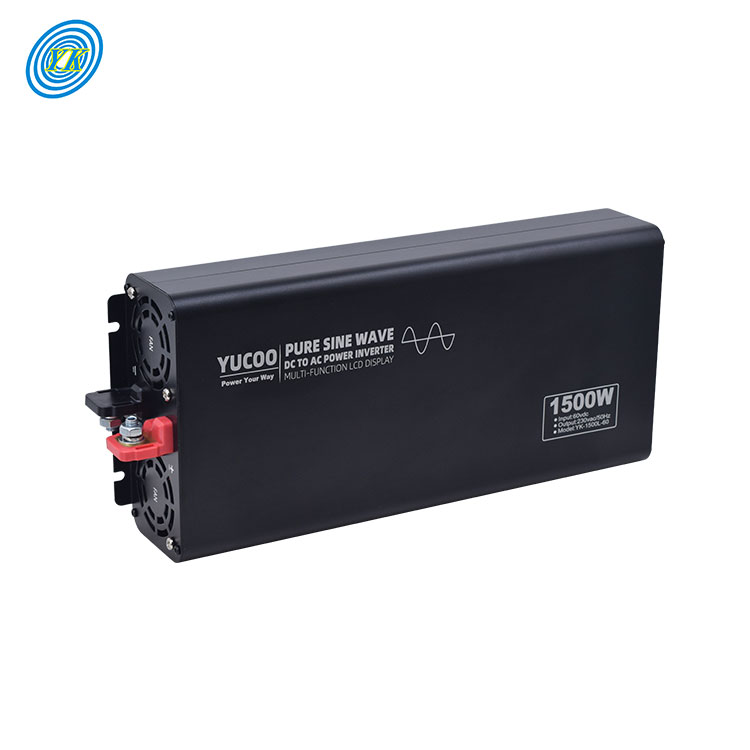

1500W 12V To 220V Inverter 1500W 12V To 110V Inverter ac power inverter for car

Display

LCD Display

Rate voltage

12Vdc/24Vdc/48Vdc/60Vdc/72Vdc

Output Voltage

110Vac or 220Vac±5％

Output Frequency

50Hz or 60Hz±0.1%

Wave

Pure Sine wave

Output Power

600W

1000W

1500W

2000W

3000W

4000W

5000W

Peak Power

1200W

2000W

3000W

4000W

6000W

8000W

10000W

Efficiency

≥90%

Protect function

Function

Input reverse connection protection: Fuse

Function

Input low voltage protection : 20Vdc±0.3V

Function

Recovery voltage : 24V(25.5V±0.3)

Function

Input high voltage protection: 30Vdc±0.3V

Function

Over temperature protect: 80°±5°

No-load current

0.3A

0.6A

0.7A

0.7A

1.0A

1.0A

1.0A

Over load protection

660±50W

1100±50W

1650±50W

2200±50W

3300±50W

4000±50W

5000±50W

Total Harmonic Distortion

≤3%

Working temperature

-5～+50℃

Storage temperature

-20～+70℃

Cooling method

Intelligent temperature controlled air cooling

Mechanical properties

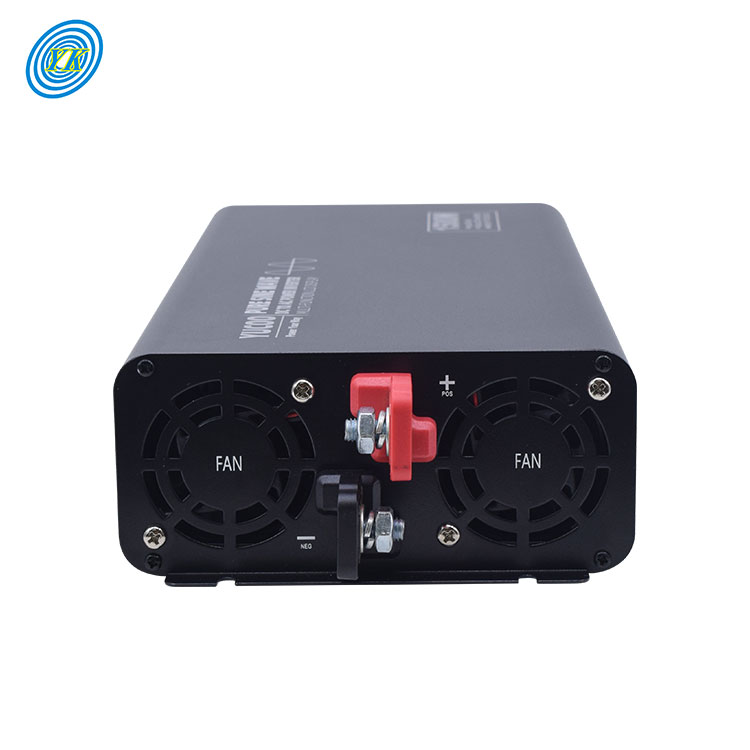

terminal

Terminal form

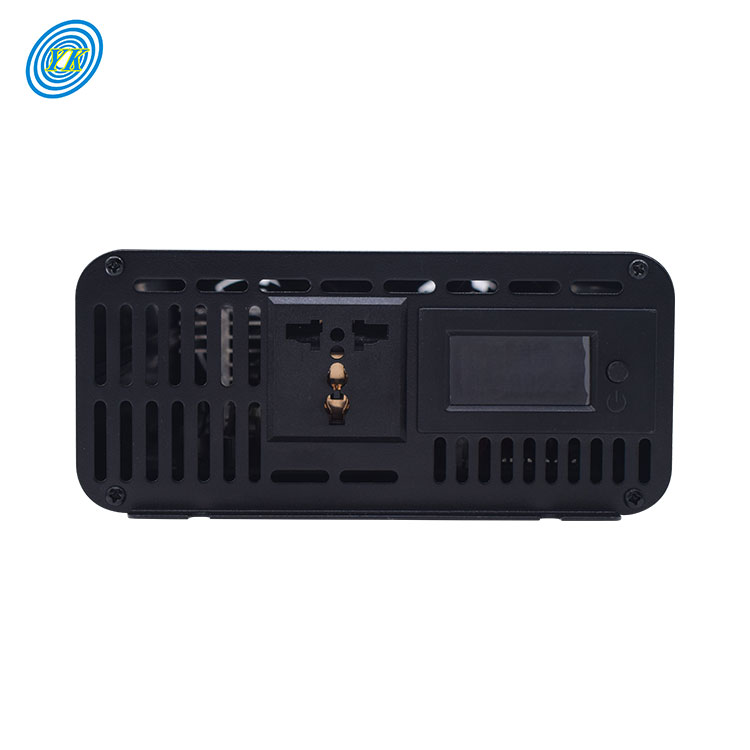

Output socket

According request

Housing material

Aluminum

Size(mm)

200*173*76

310*173*76

340*173*76

360*173*76

400*242*88

400*242*88

400*242*88
