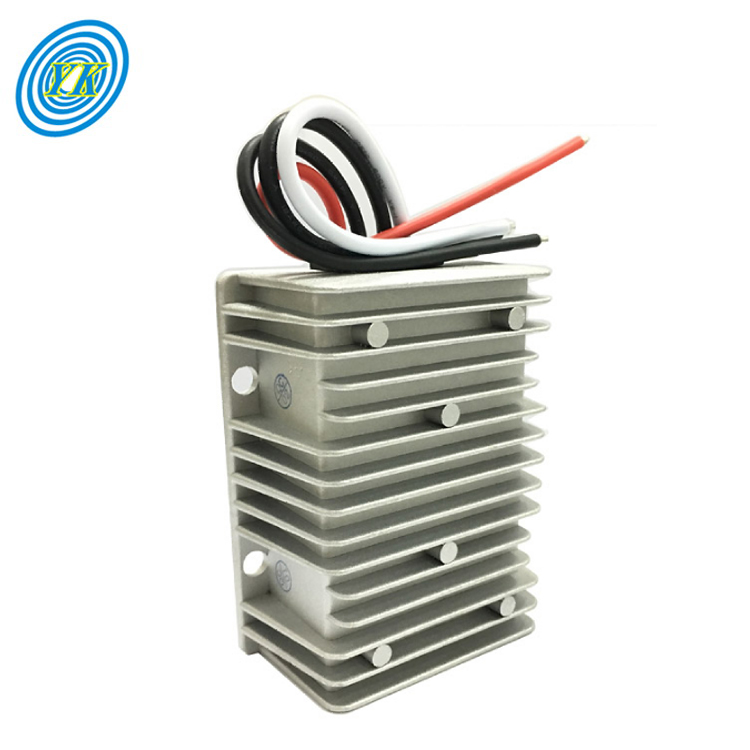

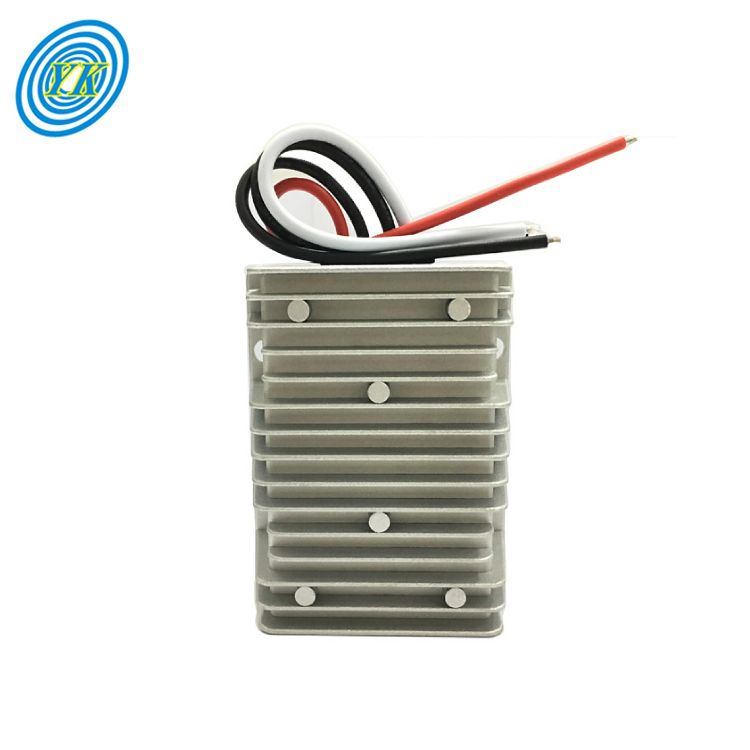

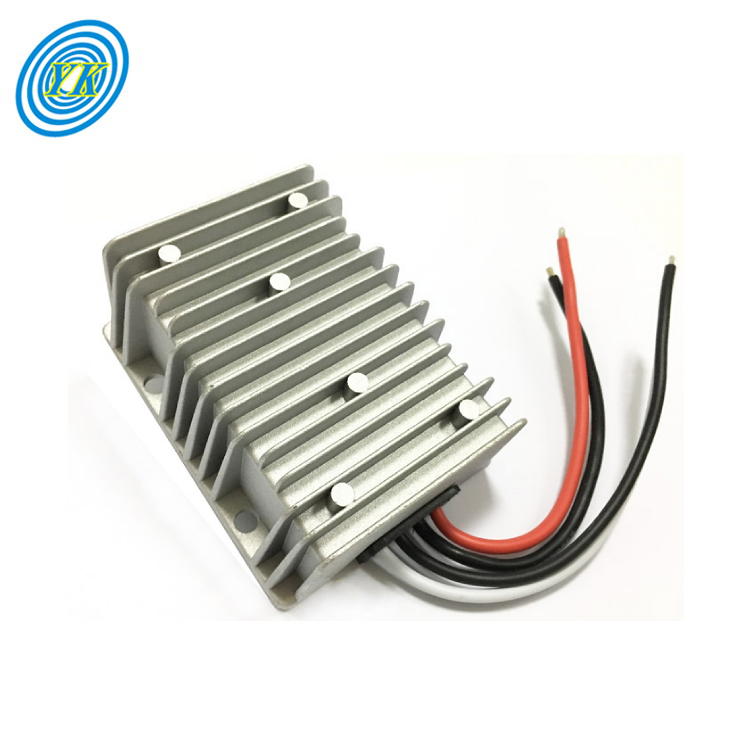

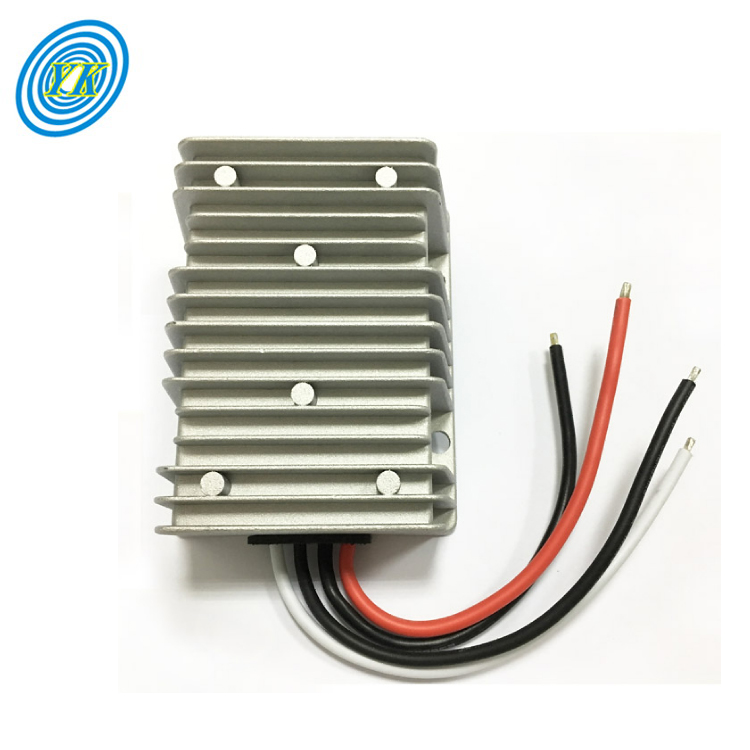

  • YUCOO dc dc converter 72v to 12v for electric bike voltage regulator 72V to 12V 20A dc converter
  • Move the mouse over the graph to enlarge the picture
  • YUCOO dc dc converter 72v to 12v for electric bike voltage regulator 72V to 12V 20A dc converter YUCOO dc dc converter 72v to 12v for electric bike voltage regulator 72V to 12V 20A dc converter YUCOO dc dc converter 72v to 12v for electric bike voltage regulator 72V to 12V 20A dc converter YUCOO dc dc converter 72v to 12v for electric bike voltage regulator 72V to 12V 20A dc converter YUCOO dc dc converter 72v to 12v for electric bike voltage regulator 72V to 12V 20A dc converter

YUCOO dc dc converter 72v to 12v for electric bike voltage regulator 72V to 12V 20A dc converter

USD 33.59-35.9

  • Input Voltage
  • 72Vdc(30-90Vdc)
  • Output Voltage
  • 12Vdc
  • Output Power
  • 240W
  • Customization
  • Customized logo (Min. Order: 300 Sets)

    Customized packaging (Min. Order: 300 Sets)

    Graphic customization (Min. Order: 300 Sets)

  • Protection
  • Trade Assurance

    On-time Dispatch Guarantee

    Refund Policy

  • Product Details

    Quick Details

    Product Name:
    DC DC Converter
    Input voltage:
    72V (30-90V)
    Output voltage:
    12V
    Current:
    20A
    Certificate:
    CE ROHS
    Protections:
    Over-current / voltage / load protection
    Warranty:
    1 year
    Working temperature:
    -40 ~ +80°c
    Output rated power:
    225 Watts

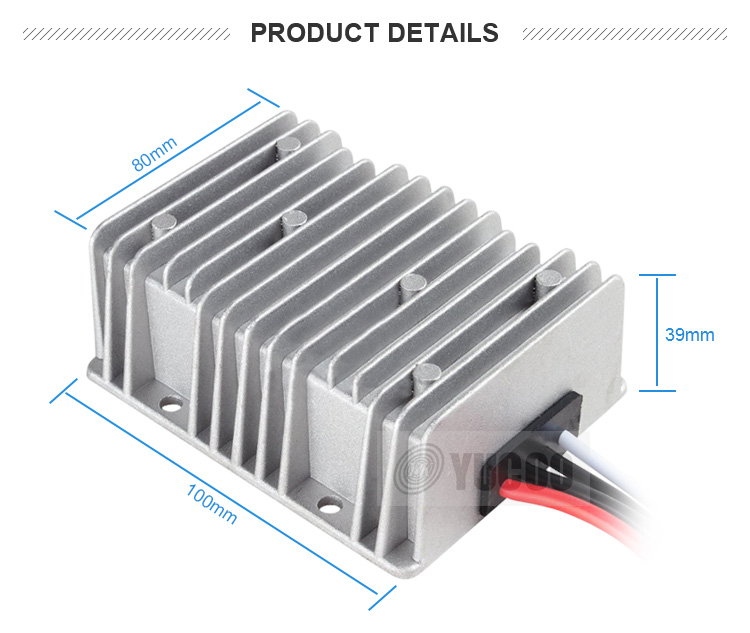

    Size:
    100*80*38mm


    Product Description

    1. 100% full power & stable current output

    2. 100% Imported components

    3. 100% waterproof & anti-shock protection, Ultra compact size, light weight

    4. Certificates: CE/RoHS

    5. Waterproof level: IP68

    6. Aluminum shell, epoxy potting, Cooling by free air convection,

    7. Protections: Over-current, Over-voltage, Over-temperature, Over-load and

    8. Short-circuit, Auto-recovery when device is back to normal operating

    9. Non-Isolated Module

    10. 1 year warranty, lifetime up to 100,000 hours.

    Product Parameters

    Model

    YK-DD72S1220

    Input rated voltage

    72VDC

    Input voltage range

    30-90VDC

    Efficiency

    93% (half load)

    Output voltage

    24VDC

    Output current

    10Amps

    Output rated power

    240 Watts

    Output peak power

    125%

    Voltage regulation

    <;;;;;;1%

    Load regulation

    <;;;;;;2%

    Ripple (full load test)

    150mV (full load)

    No-load current

    60mA @24V input

    Working Temperature

    -20°c ~ +80°c

    Waterproof rating

    IP 68

    Protections

    Over-temperature, Over-voltage

    Machine size

    100*80*38MM

    N. Weight

    500g

    Cooling way

    Free air convection

    Certifications

    CE, RoHS

    Others

    Carton packing

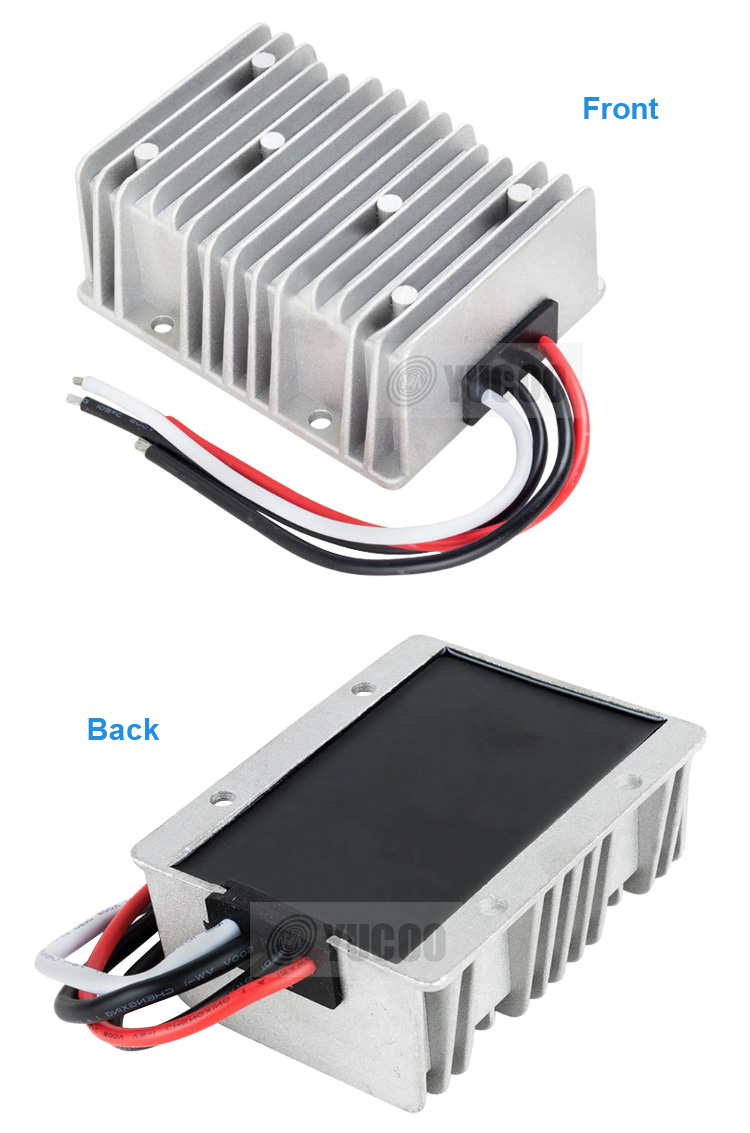

    Product details


    photobank (1).jpg

    photobank (3).jpg

    photobank (3).jpg

    photobank (4).jpg

    Recommend Products Range

    BUCK DC-DC CONVERTER MODEL LIST
    Model SeriesInput-VOutput-VOutput Current
    YK-DD1224S5**12V/24V5v3A|5A|10A|15A|20A|30A|40A|50A|60A
    YK-DD24S12**24v12v1.5A|3A|5A|8A|10A|15A|20A|30A|40A|50A|60A|85A|100A
    YK-DD24S13.8**24v13.8V
    5A|10A|15A|20A|30A|40A|50A|60A
    YK-DD24S19**24V19V5A|10A|15A
    YK-DD36S12**36V12V5A|10A|15A|20A|30A|50A|60A
    YK-DD48S5**48V5V5A|10A|15A|20A
    YK-DD48S12**48V12V5A|10A|15A|20A|30A|40A|50A|60A
    YK-DD48S13.8**48V13.8V5A|10A|15A|20A|30A|40A|50A|60A
    YK-DD48S19**48V19V5A|8A|10A
    YK-DD48S24**48V24V3A|5A|10A|15A|20A|30A|40A|50A
    YK-DD60S12**60V12V5A|10A|15A
    YK-DD60S24**60V24V5A|10A
    BOOST DC-DC CONVERTER MODEL LIST
    Model SeriesInput-VOutput-VOutput Current
    YK-DD12S24**12V24V1A|2A|3A|5A|8A|10A|15A|20A|25A|30A|40A|50A
    YK-DD12S19**12V19V5A|8A|10A|15A|20A
    YK-DD12S28**12V28V3A|5A|8A|10A|15A|20A|25A|30A|40A
    YK-DD12S48**12V48V1A|2A|3A|4A|8A|10A|15A|20A
    YK-DD24S48**24V48V3A|5A|10A|20A|30A|40A
    YK-DD24S36**24V36V5A
    BUCK& BOOST DC-DC CONVERTER MODEL LIST
    Model SeriesInput-VOutput-VOutput Current
    YK-DD12S12**8-40V12V1A|2A|3A|5A|6A|10A|15A|20A|25A
    YK-DD12S13.8**8-40V13.8V3A|5A|10A|15A|20A|25A
    YK-DD24S24**9-40V24V2A|3A|4A|6A|10A|15A
