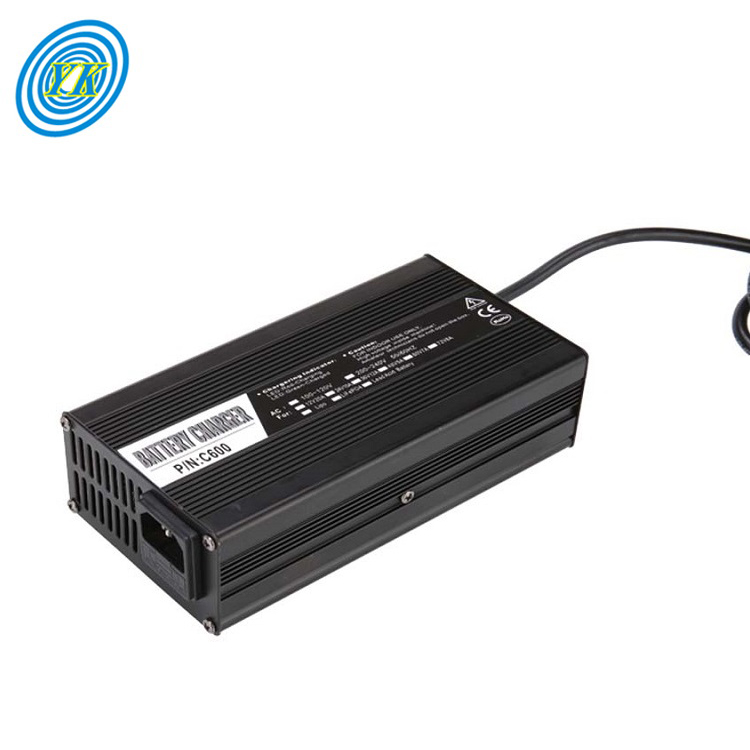

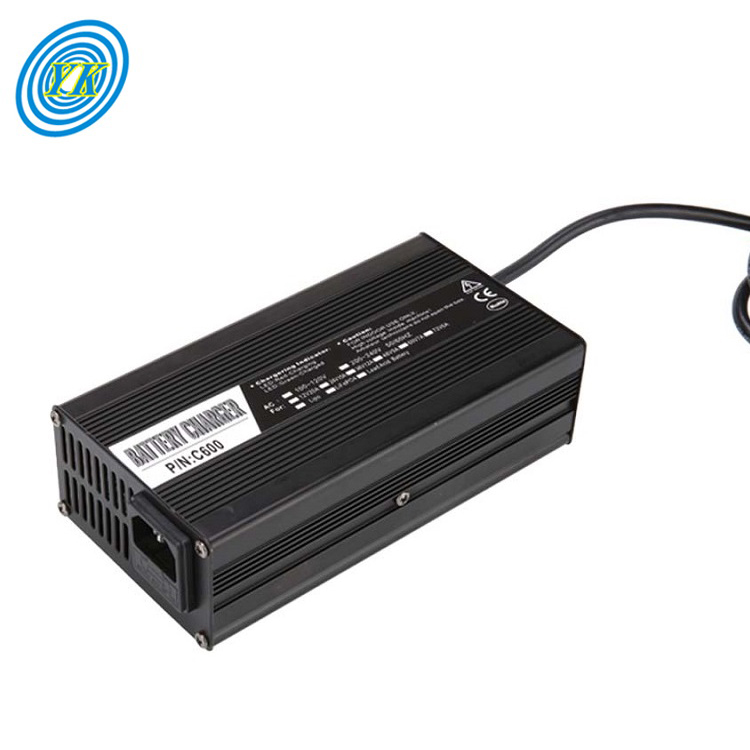

Yucoo 24V 20A lead acid Battery Charger for Civil use 480W

USD58.1-62.5

  • Input voltage
  • 100-132VAC
  • Output voltage
  • 24VDC
  • Output current
  • 20A
  • Customization
  • Customized logo (Min. Order: 300 Sets)

    Customized packaging (Min. Order: 300 Sets)

    Graphic customization (Min. Order: 300 Sets)

  • Protection
  • Trade Assurance

    On-time Dispatch Guarantee

    Refund Policy

  • Product Details

    Quick Details

    Product name:
    battery charger
    Model Number:
    YK-CD2420
    Efficiency:
    ≥90%
    Input voltage:
    100-132VAC
    Output current:
    20A
    Output voltage:
    24VDC
    Weight:
    1.5kg
    Dimension:
    173*90*51mm


    Product Description

    1. Short-circuit protection: output current will cut off automatically when short-circuit.
    2. Overload protection: Output Current Will Be Limited Automatically When Overload.
    3. Reverse polarity protection: it will shut down until fuse or the fault removed.
    4. 3-stage charging mode: CC, CV and trickle (or Cut off) .
    5. Long lifetime: In the MTBF test, it makes more than 30,000 POH (power on hours) ,which means about 10 years if it work 8 hours every day.
    6. LED Meter available: Show Charging Voltage and Charging Current.
    7. All kinds of production has passed the CE certification and ROHS.

    8. Efficiency: 94%( full capacity).

    Product Parameters

    Product name
    battery charger
    Model
    YK-CD2420
    Input Voltage100-132VAC
    Voltage range100-132VAC
    Output Voltage24VDC
    Output Current20Amps
    Output Power480Watts
    Effciency≥90%
    Working temperature-30℃~+50℃
    Weight1.5kg
    Size173*90*51mm
    Suitable battery type

    Lead Acid / LiFePO4 /Li-ion

    Lipo battery voltage is 4.2V

    LiFePO4 battery voltage is 3.65V

    Lead acid battery voltage is 14.7V

    Equal voltage
    29.4V
    Float voltage
    27.6V

    LiFePO4/3.65V

    Charge voltage

    29.2(8s)

    Lipo/4.2V

    Charge voltage

    25.2(6s)

    29.4(7s)

    Charging Principle

    Full automatic transition CC,CV and Float/Cut-off

    Charging Time

    Cut-off point for Li battery is 5% of CC and

    it can be set between 3-10%.(charging time:4 hours

    High-Efficiency

    ≥90%

    Dielectric Strength

    Input to shell ≥AC1500V

    Input to output ≥AC1500V

    Output to shell ≥AC500V

    Operating Temperature

    -20℃~50℃

    Store Temperature

    (-40~70)℃

    Related humidity

    90%(40±2℃)

    Protection Function

    Over voltage/Over temperature/Over current/Short

    circuit and Reverse polarity Protect

    Dispaly

    Two LED indicators

    Advantage

    Light/small/stable/safe

    AC Plug

    Accept any plug base on your request

    Warranty

    1 YEAR

    MTBF

    ≥50000h

    Multi protection

    Short circuit protection/Reverse protection

    /Over-current protection/Overheating protection/

    Low voltage protection/Overvoltage protection
