Yucoo 1920w variable dc power supply adjustable 24v 80a dc power supply

USD 360-450

  • Input Voltage
  • 24V
  • Output current
  • 80A
  • Output Power
  • 1920W
  • Customization
  • Customized logo (Min. Order: 300 Sets)

    Customized packaging (Min. Order: 300 Sets)

    Graphic customization (Min. Order: 300 Sets)

  • Protection
  • Trade Assurance

    On-time Dispatch Guarantee

    Refund Policy

  • Product Details

    Quick Details

    Product Name:
    Adjustable dc power supply
    Input voltage:
    1phase AC110V±15% 50/60Hz/ 1phase AC220V±15% 50/60Hz/ 3 phase AC380V±15% 50/60Hz
    Output voltage range:
    0-24VDC
    Output current range :
    0-80A
    Power:
    1920W
    Source Voltage Regulation:
    constant voltage ≤0.2%
    Protection:
    over-temperature automatic protection; output overvoltage, over-current and short-circuit protection
    Weight:
    4.5kg
    Warranty:
    12months
    MTTF:
    ≥50000h


    Product Description

    1. Advanced switching mode power supply technology and components, excellent design, small volume, light weight, high efficiency, which ensures the stability and reliability of long-term full-load operation.

    2. Constant voltage value and constant current value can be continuously adjustable within the range 0~100%

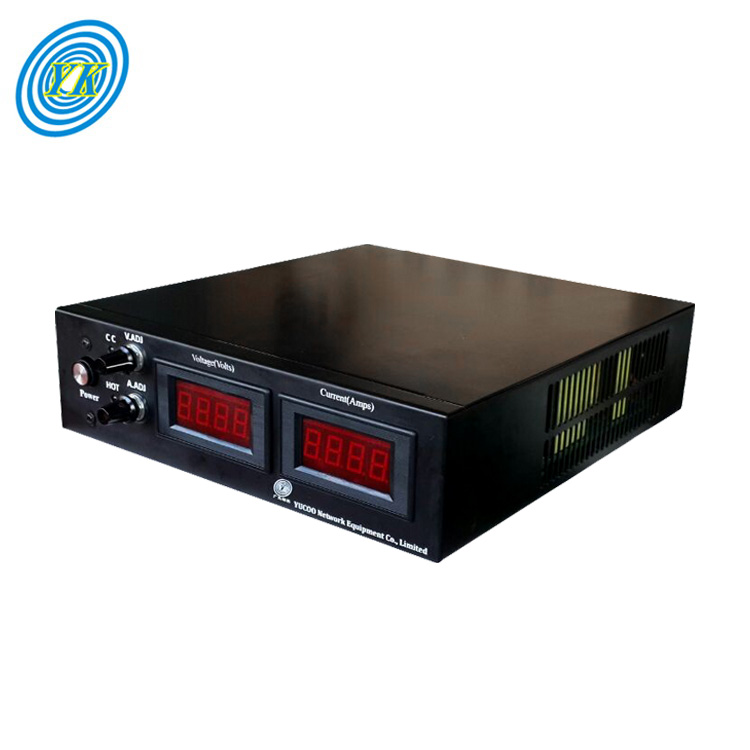

    3. Digital display output voltage and output current.

    4. Temperature control fan, over-temperature automatic protection; output overvoltage, over-current and short-circuit protection; start up delay soft starting can avoid the overshoot voltage when start up.

    5. Simple operation, convenient use.

    6. Store temperature: (-40~70), Working temperature: (-20~50)

    7. Relative humidity: 90% (40±2), atmospheric pressure (70-106)kPa

    Customize range

    Regards the Variable DC power supply,

    We can customize any constant voltage and constant current according to your request.

    Such as:

    1. 0-1500V variable or appointed

    2. 0-2000A variable or appointed

    Product Parameters

    Test Item

    Performance Parameter

    Model(YK-AD Series)

    YK-AD2480

    Output range

    0-24V 0-80A

    Output mode

    Constant voltage (or appointed) variable/adjustable

    Constant current (or appointed) variable/adjustable

    AC wide input

    1phase AC110V±15% 50/60Hz/

    1phase AC220V±15% 50/60Hz/

    3 phase AC380V±15% 50/60Hz

    Power

    Max 1920W

    Source Voltage

    Regulation

    constant voltage ≤0.2%

    Load Regulation

    constant voltage ≤1%; constant current≤2%

    Line regulation:

    constant voltage ≤0.3%

    Ripple Voltage

    total ripple Vpp≤2% (max voltage)(60V*2%=1.2V)

    100Hz Ripple: Vpp≤0.5%(max voltage)(60V*0.5%=0.3V)

    Operation Environment

    temperature

    (-10~45)

    Efficiency

    ≥89%

    Digital meter

    voltage meter and current meter

    Digital display

    Precision of output voltage±1.5%
    Precision of output current±2.0%

    Insulating resistance

    Input-Output:≥20MΩ


    Input— Shell:≥20MΩ


    Output-Shell:≥80MΩ

    Insulating Strength

    Input-Output:AC1500V,10mA,1minute


    Input— Shell:AC1500V,10mA,1minute


    Output-Shell:AC1500V,10mA,1minute

    Imbalance of equalized

    current

    ≤5%+2.5A

    Protection

    Temperature control fan, over-temperature automatic protection; output overvoltage,

    over-current and short-circuit protection; switch-on delay soft starting

    can avoid the over swung output voltage when switching on.

    over-temperature

    protection

    (70~80)

    MTTF

    ≥50000h

    External dimension

    253(W)*68(H)*268(D)mm

    Weight

    NW 4.5kg

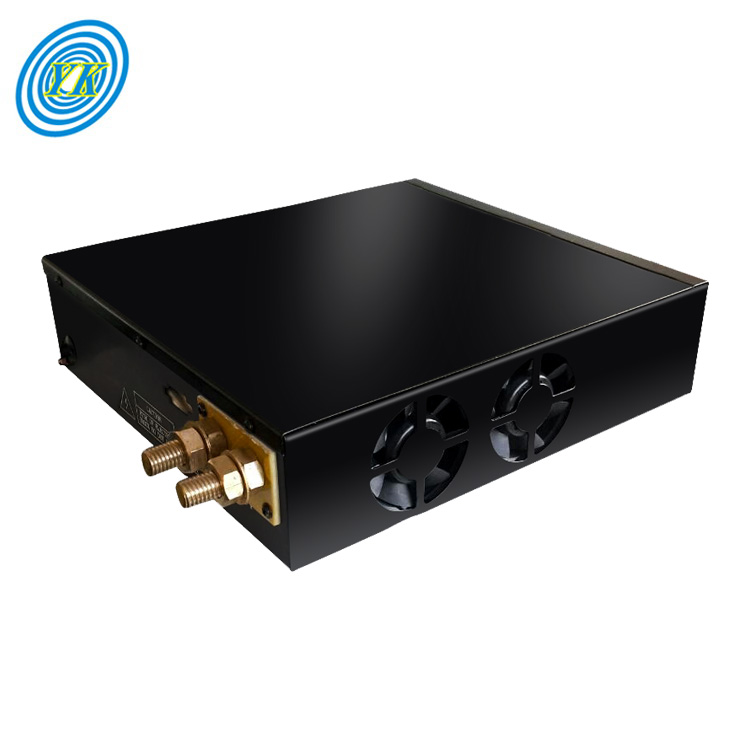

    Radiating wind hole

    Internal radiating wind hole

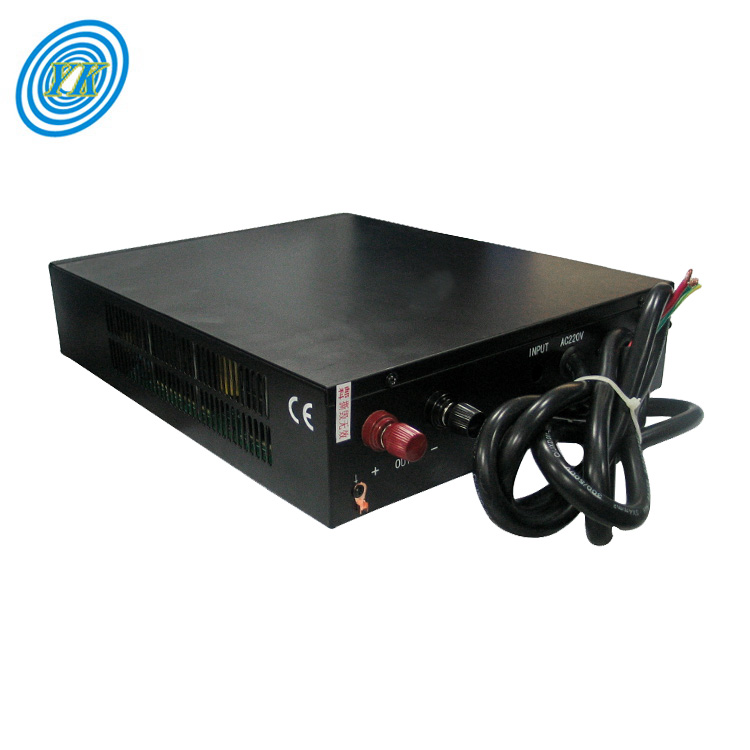

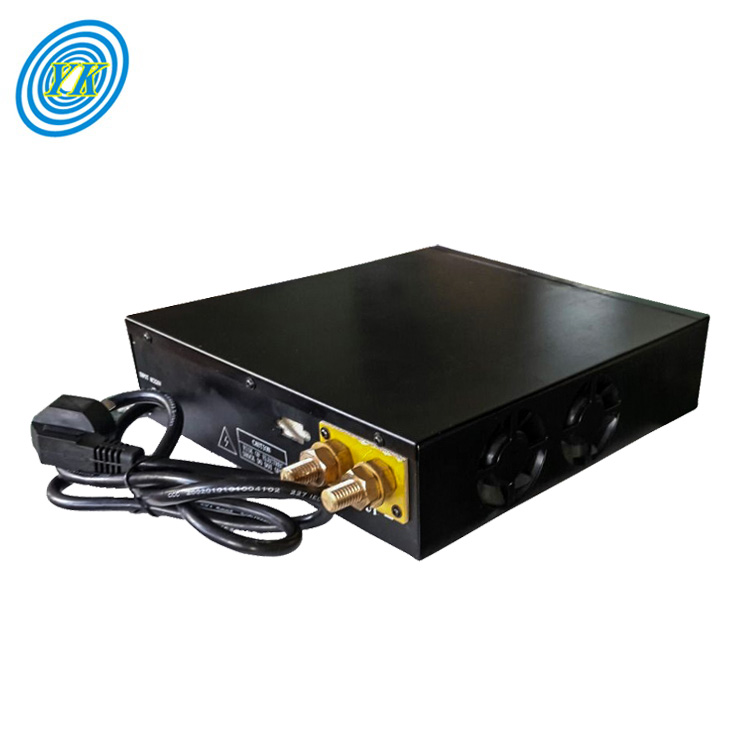

    Detail Images
