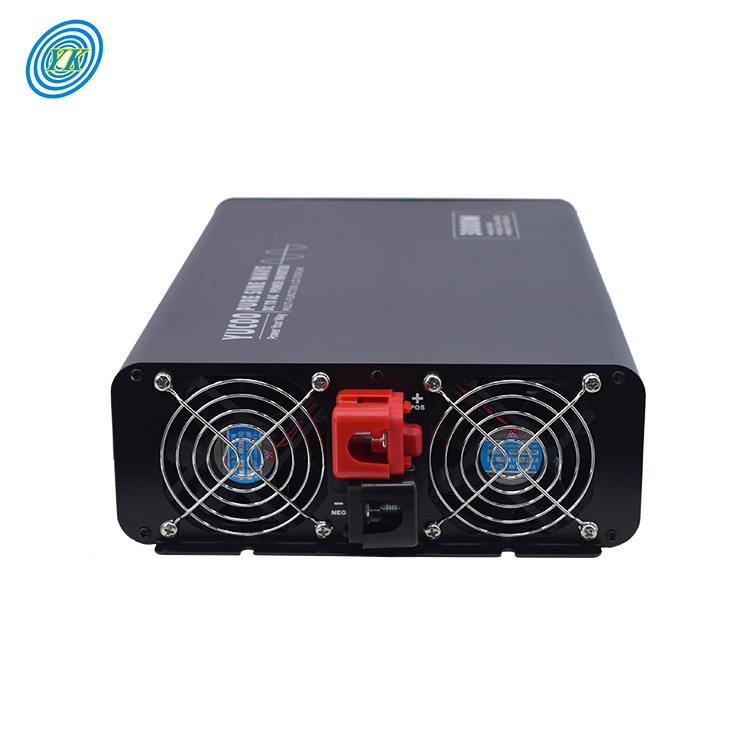

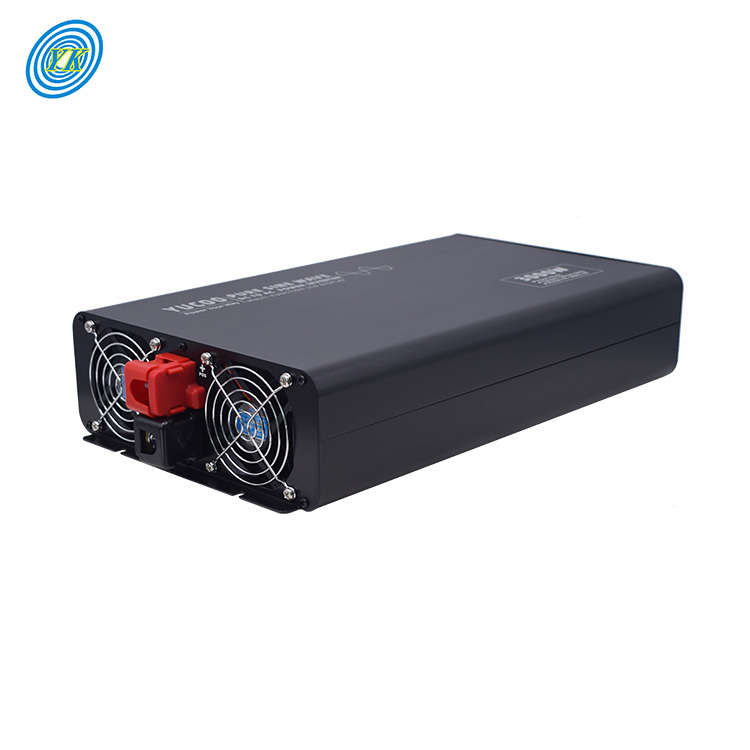

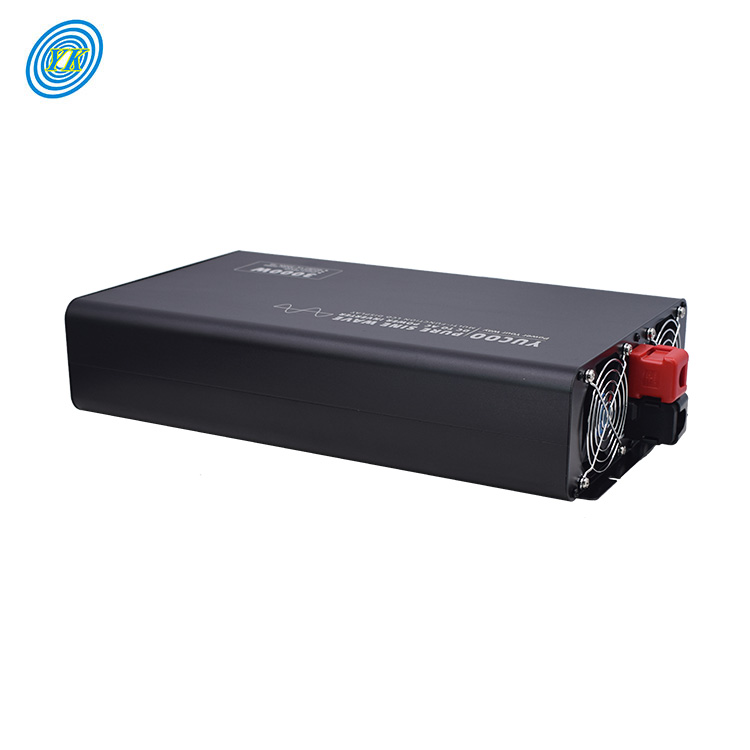

Yucoo 3000W 60V To 220V Inverter pure sine wave 3000W 60V To 110V Inverter

USD 200-234.2

Product Name

3000W pure sine wave car power inverter

Output Voltage

110vac or 220vac±5％

Intput Voltage

60Vdc(50-75Vdc)

Customization

Customized logo (Min. Order: 300 Sets)

Customized packaging (Min. Order: 300 Sets)

Graphic customization (Min. Order: 300 Sets)

Protection

Trade Assurance

On-time Dispatch Guarantee

Refund Policy

Product Details

Quick Details

Model Number:: YK-3000L-60

Rate voltage:: 60Vdc

Range voltage:: 50-75Vdc

Output Voltage:: 110vac or 220vac±5％

Output Frequency:: 50Hz or 60Hz±0.1%

Wave:: Pure Sine wave

Output Power:: 3000W

Working temperature:: -5～+50℃

Storage temperature:: -20～+70℃

Weight (kg):: 8.5kg


Introduction of power inverter

1.This inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is indeed pure. The unique dynamic current loop control technology ensures reliable operation of the inverter.

2.Load adaptability, including inductive load, capacitive load, resistive load, Hybrid load. High performance at over-load capacity and impact resistance.

3.It has perfect protection functions such as input over voltage, under-voltage, overload, overheat, and output short circuit etc.

4.The sine wave inverter adopts LCD liquid crystal display mode, and the state is clear at a glance.

5.Stable performance, safe and reliable, long service life.

Product Description

1. Efficiency: 85%-92%

2. The service life can reach a decade

3. Working noise is low and the efficiency is high

4. Strong ability of resist concussion

5. Good load ability: Inductive , capacitive load and Hybrid load

6. Protection: Battery Low Alarm/Battery Shut down/Over Voltage/Over Temp/ Output Short/Input polarity reverse/Overload

Product Parameters

Model	600L-60	1000L-60		1500L-60	2000L-60	3000L-60	4000L-60	5000L-60
Display	LCD Display
DC Input
Rate voltage	60Vdc
Range voltage	50-75Vdc
Output
Output Voltage	110vac or 220vac±5％
Output Frequency	50Hz or 60Hz±0.1%
Wave	Pure Sine wave
Output Power	600W	1000W	1500W		2000W	3000W	4000W	5000W
Peak Power	1200W	2000W	3000W		4000W	6000W	8000W	10000W
Conversion Efficiency	≥90%
Protect function
Function-1	Input reverse connection protection: Fuse
Function-2	Input low voltage protection : 50Vdc±0.3V
Function-3	Recovery voltage : 60V(65V±0.3)
Function-4	Input high voltage protection: 75Vdc±0.3V
Function-5	Over temperature protect: 80°± 5°
No-load current	0.3A	0.6A		0.7A	0.7A	1.0A	1.0A	1.0A
Over load protection	660±50W	1100±50W		1650±50W	2200±50W	3300±50W	4000±50W	5000±50W
Total Harmonic Distortion	≤3%
Working temperature	-5～+50℃
Storage temperature	-20～+70℃
Cooling method	Intelligent temperature controlled air cooling
Mechanical properties
Input terminal	Terminal form
Output socket	According request
Housing material	Aluminum
Size(mm)	200173 76	310173 76		340173 76	360173 76	400242 88	400242 88	420242 88
Weight (kg)	2.1	3.2		3.5	4.5	8.5	9.5	10.5
