  • Yucoo 36V 12A lead acid Battery Charger for Civil use 432W
  • Move the mouse over the graph to enlarge the picture
  • Yucoo 36V 12A lead acid Battery Charger for Civil use 432W Yucoo 36V 12A lead acid Battery Charger for Civil use 432W Yucoo 36V 12A lead acid Battery Charger for Civil use 432W

Yucoo 36V 12A lead acid Battery Charger for Civil use 432W

USD74-80.2

  • Output Voltage
  • 36V
  • Output current
  • 12A
  • Output Power
  • 432W
  • Customization
  • Customized logo (Min. Order: 300 Sets)

    Customized packaging (Min. Order: 300 Sets)

    Graphic customization (Min. Order: 300 Sets)

  • Protection
  • Trade Assurance

    On-time Dispatch Guarantee

    Refund Policy

  • Product Details

    Quick Details

    Product name:
    battery charger
    Model Number:
    YK-BUY600-3612
    Efficiency:
    86%
    Input voltage:
    AC:180-264v/95-120v
    Output current:
    12A
    Output voltage:
    36VDC
    Weight:
    2.5KG
    Dimension:
    207*120*70MM


    Product Description

    AC input: AC: 85-130v/180-264v (Pull switch), 47 to 63Hz

    Output power:600W

    DC output voltage: 12V/25A, 24V/18A, 36V/12A, 48V/10A, 60V/8A, 72V/6A

    LED indicator light logo: red and green, double color instructions, red charging green finished or standby

    Efficiency: >;;85%

    MTBF: 30000 hours

    Main export markets: Asia/Eastern Europe/Mid East/Africa/Australasia/North America/Central/South America/

    Western Europe

    Product Parameters

    Product name
    battery charger
    Model
    YK-BUY600-3612
    Input VoltageAC:180-264v/95-120v
    Output Voltage36VDC
    Output Current12Amps
    Output Power432Watts
    Inrush currentCold start 35A (220Vac Input)
    Input CurrentMax 13.5A
    Frequency47-63hz
    Input fuse15A
    Weight2.5kg
    Size

    207*120*70MM

    Leakage current
    <0.75mA
    Isolated

    Input to output : 1500Vac 50hz 1min ≤10mA

    Input to case :1500Vac 50Hz 1min≤10mA

    Output to case :500Vac 50Hz 1min≤10mA

    Voltage setting

    accuracy

    +/-1% (100/264Vac input)

    Total output voltage adjustable rate

    1%

    Ripple

    250mVp-p Main output (board edge) Test with adding 0.1Uf ceramic capacitor

    and10Uf tantalum capacitor filter at the output and the bandwidth is 20Mhz

    Charging Time

    Cut-off point for Li battery is 5% of CC and

    it can be set between 3-10%.(charging time:4 hours

    Operating Temperature

    -15℃~+60℃

    Store Temperature

    (-40~+80)℃

    Related humidity

    5% to 95% RH Non-condensing

    Protection Function

    Over voltage/Over temperature/Over current/Short

    circuit and Reverse polarity Protect

    Warranty

    1 YEAR

    MTBF

    30000h

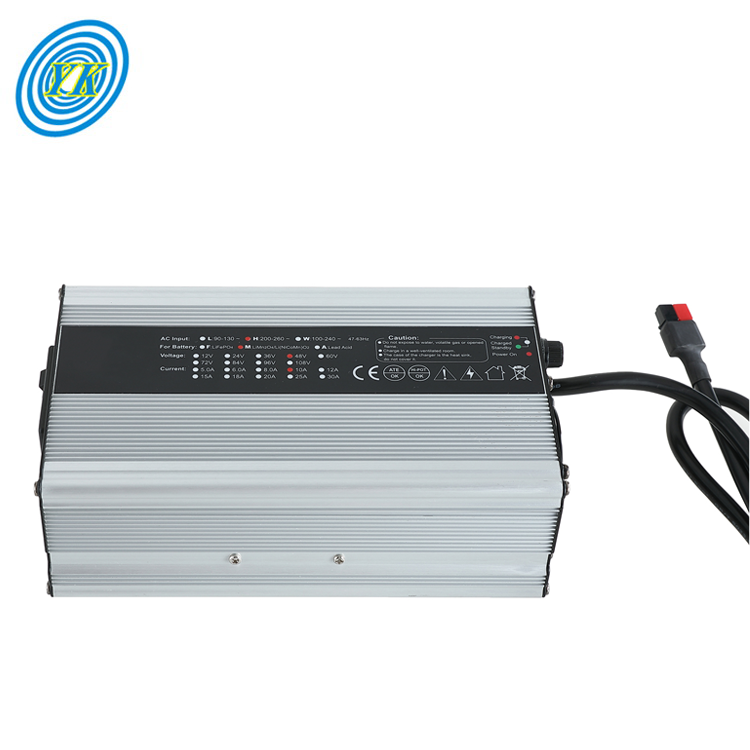

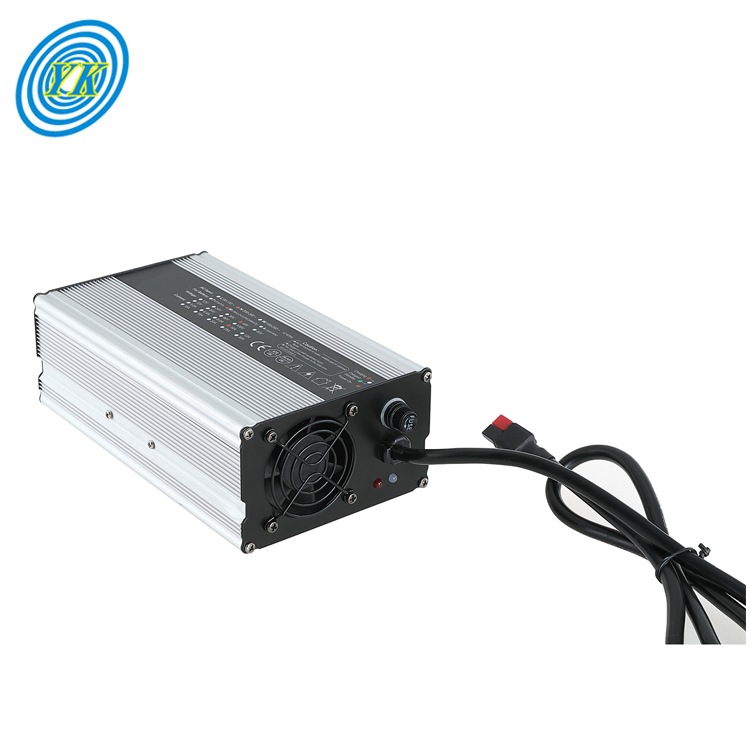

    Details Images

    600w battery charger (2).png

    aced6fd52ba2f00274de4413881b66c0_H085744a1e02e4986af900d6db7b352f8W_quality=close.jpg
