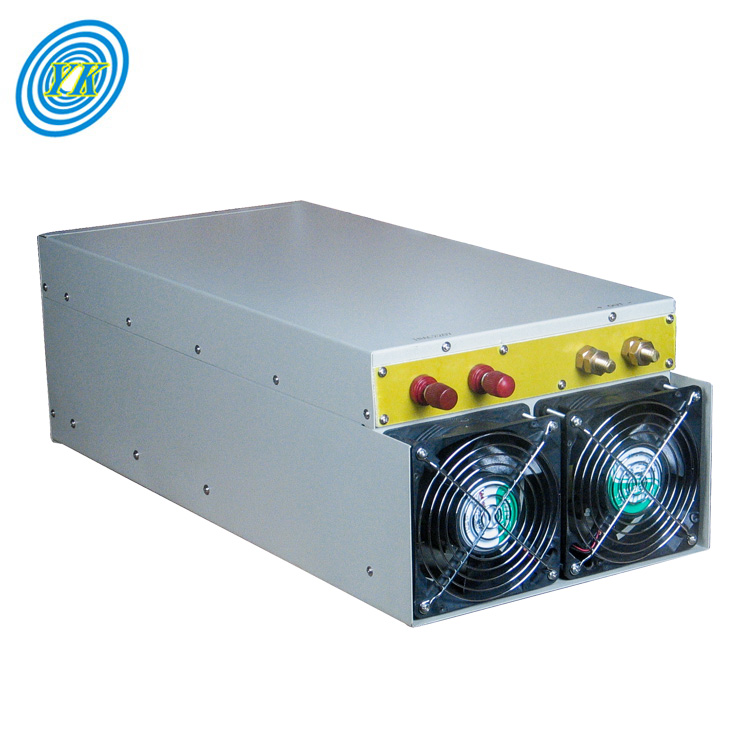

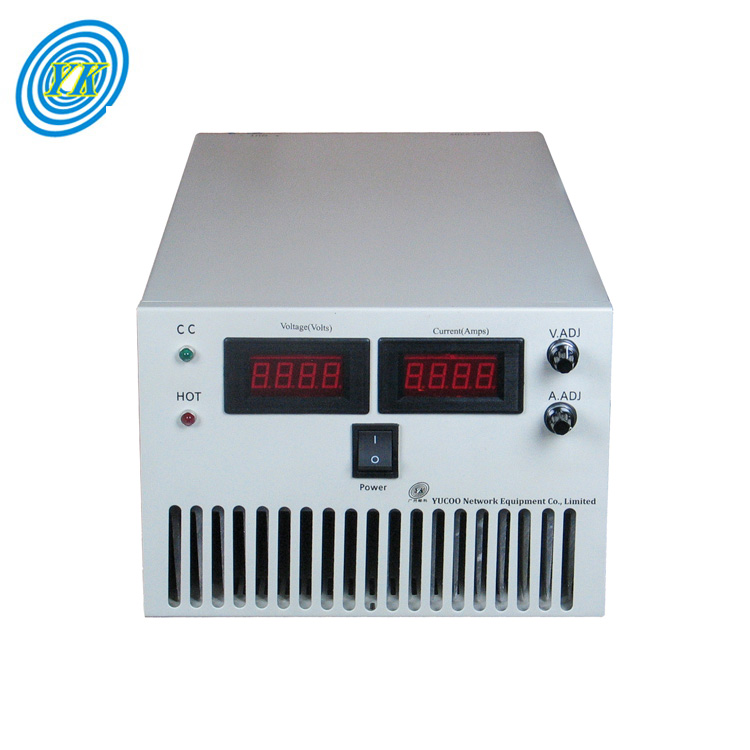

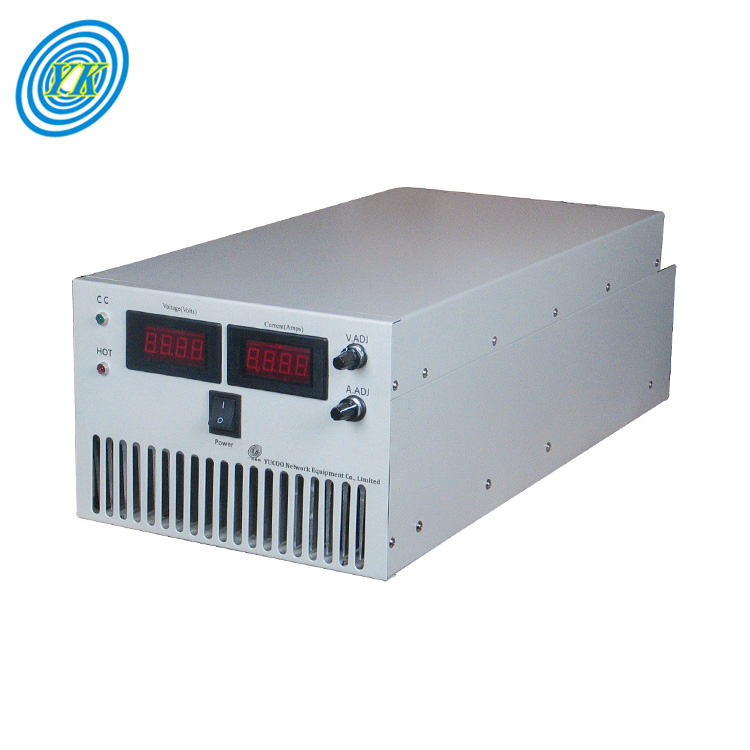

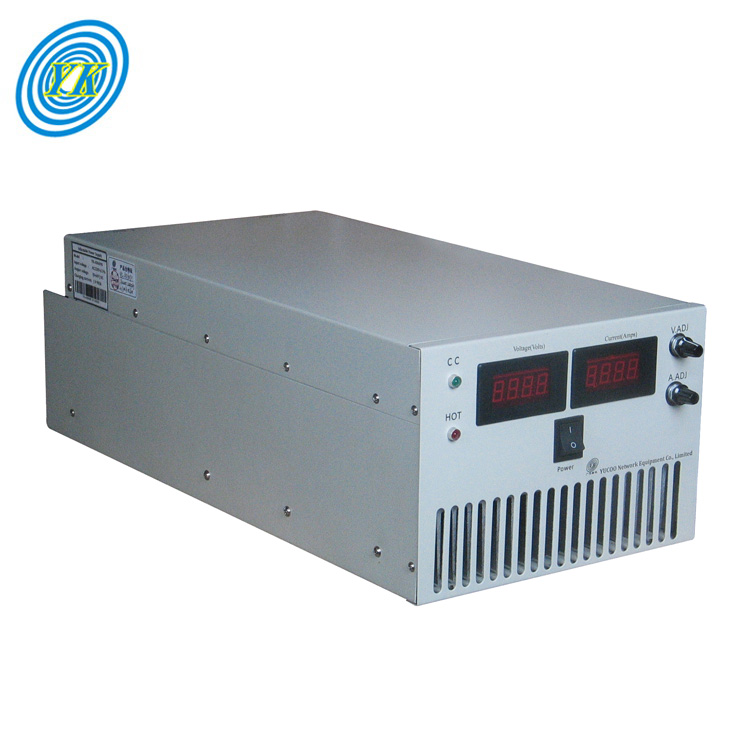

Yucoo 48V 100A Battery Charger Industry

USD1450-1869

Input Voltage

1 Phase 220V±15%VAC 50/60hz input

Equal Charging Voltage

62V ( unsealed battery), 58V (sealed battery)

Output Power:

5800W

Customization

Customized logo (Min. Order: 300 Sets)

Customized packaging (Min. Order: 300 Sets)

Graphic customization (Min. Order: 300 Sets)

Protection

Trade Assurance

On-time Dispatch Guarantee

Refund Policy

Product Details

Quick Details

Product name:: battery charger

Model Number:: YK-CD48100

Equal voltage:: 62V ( unsealed battery), 58V (sealed battery)

Floating voltage:: 54Vdc

Charge current:: 10-100A adjustable

AC compatible input:: 1 Phase 220V±15%VAC 50/60hz input

Power:: 5800W

Suitable for:: Lead Acid battery

Efficiency:: ≥86％

MTBF:: ≥50000h

Product Description

1.Advanced IC and components can ensure reliability and stability

2.Charge battery strictly according to Charging Curve.

3.The charging process is “(preset) constant current→(reach to equal charge constant voltage value)constant voltage reduce current→(automatic switch)float charge”. With strongpoint such as fast speed, high efficiency, unattended, non over charge etc

4.The charging current of 48V 100A auto battery charger is about 1-100A Constant adjustable. When in constant current charging status, the current is constant. No need manual adjustment.

5.AC wide range of input

6.Intelligent temperature controlled fan and over temperature automatic shut off protection.

7.Output short circuit protection and polarity reverse protection.

8.Suitable for assistant start-up power supply and complementary charge power supply such as car or generator etc.

Product Parameters

Product name	battery charger
Model	YK-CD48100
AC/DC compatible input	AD220V AD±15%, 50/60Hz
Charging current	10-100A constantly adjustable
Charging process	Constant current—(constant voltage) equal charge reduce current—(constant voltage) floating charge
Equal voltage	58VDC(For fully sealed maintenance-free battery), 62VDC(turn on the battery)
Floating voltage	54VDC
Working temperature	(-5~45)℃
Store temperature	(-20~60)℃
Related humidity	90%
Atomospheric pressure	(70~106)kPa
Dimension	255W176H540Dmm
Weight	16.5Kg
Efficiency	≥86%
Power factor	≥0.85
Input to shell	≥AC1500V
Input to output	≥AC1500V
Output to shell	≥AC500V
MTBF	≥50000h
Over heat shut off temperature	(75~80)℃
