  • Yucoo ac to dc rectifier power supply system 48v 30a rectifier module for communication
  • Move the mouse over the graph to enlarge the picture
  • Yucoo ac to dc rectifier power supply system 48v 30a rectifier module for communication Yucoo ac to dc rectifier power supply system 48v 30a rectifier module for communication Yucoo ac to dc rectifier power supply system 48v 30a rectifier module for communication Yucoo ac to dc rectifier power supply system 48v 30a rectifier module for communication

Yucoo ac to dc rectifier power supply system 48v 30a rectifier module for communication

USD300-495

  • Output Current
  • 30A
  • AC input voltage range
  • 90VAC-285VAC
  • Output Voltage
  • 48VDC
  • Customization
  • Customized logo (Min. Order: 300 Sets)

    Customized packaging (Min. Order: 300 Sets)

    Graphic customization (Min. Order: 300 Sets)

  • Protection
  • Trade Assurance

    On-time Dispatch Guarantee

    Refund Policy

  • Product Details

    Quick Details

    Product name:
    rectifier power supply system
    Model Number:
    YK-GPE4830
    Input Voltage:
    90VAC-285VAC
    Output Voltage:
    48VDC
    Output Current:
    30A
    AC input voltage range:
    90VAC-285VAC
    DC input voltage range(Option):
    100DC-400VDC
    Warranty:
    1 Year
    Dimensions:
    482.6*44*350mm
    Weight:
    3KG/5KG


    Product Description

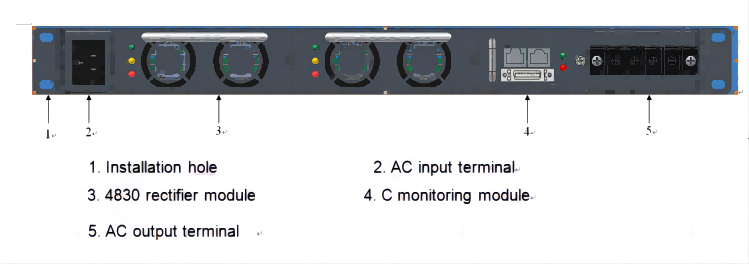

    1. Small size, height 1U, 2 *30A rectifier module

    2. Configurable module: 10A, 15A, 20A, 30A for option

    3. The standard 19-inch installation

    4. Improve monitoring and management and battery management

    5. Provide RS485 communication interface

    6. 1 channel load output, 1 channel battery input

    7. Battery anti-reverse function

    8. Under electrical function

    9. Support hot-swappable

    10.The energy-saving sleep function

    11.The independent design of lightning protection unit (optional)

    12.The power supply can be installed in any 19-inch rack independently

    Product Parameters

    Model NumberYK-GPE4830

    Output Power

    1440W

    Output Type

    Single

    Output Frequency

    50/60HZ

    Output Current

    30A

    Warranty

    1 Year

    Power Factor

    ≥0.99

    Efficiency

    ≥92%

    Rated output voltage range

    43VDC-58VDC

    Output rated current

    0A-30A

    Regulation accuracy

    ≤±0.6

    Peak to peak

    ≤200mV

    Equal current

    ≤5%

    Battery interface

    1-2way

    Dimensions

    482.6*44*350mm

    N.W.

    3/5KG

    Details Images
