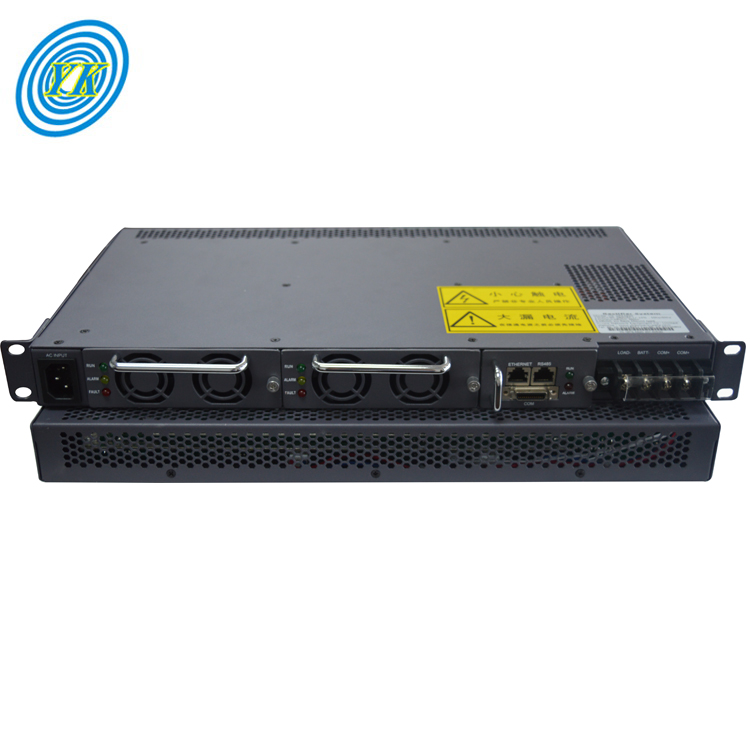

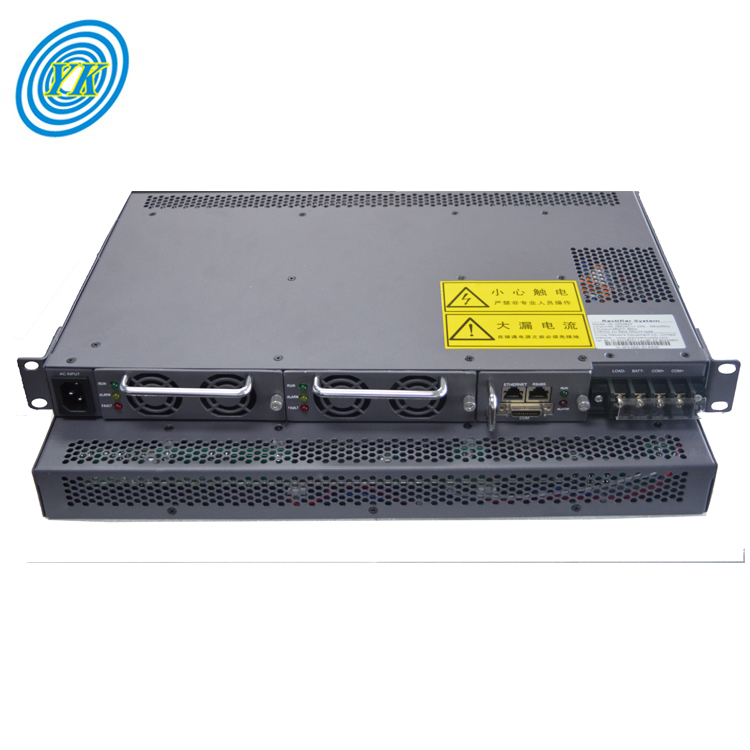

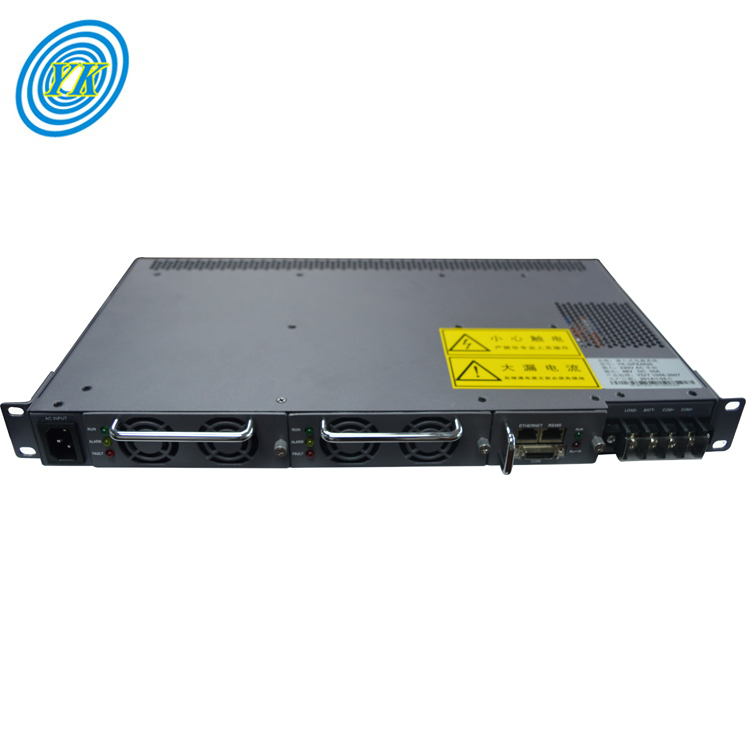

Yucoo ac to dc rectifier power supply system 48v 60a rectifier module for communication price
USD450-650
Customized logo (Min. Order: 300 Sets)
Customized packaging (Min. Order: 300 Sets)
Graphic customization (Min. Order: 300 Sets)
Trade Assurance
On-time Dispatch Guarantee
Refund Policy
Quick Details
- Product name:
- rectifier power supply system
- Model Number:
- YK-GPE4860
- Input Voltage:
- 90VAC-285VAC
- Output Voltage:
- 48VDC
- Output Current:
- 60A
- AC input voltage range:
- 90VAC-285VAC
- DC input voltage range(Option):
- 100DC-400VDC
- Warranty:
- 1 Year
- Dimensions:
- 482.6*44*350mm
- Weight:
- 3KG/5KG
Product Description

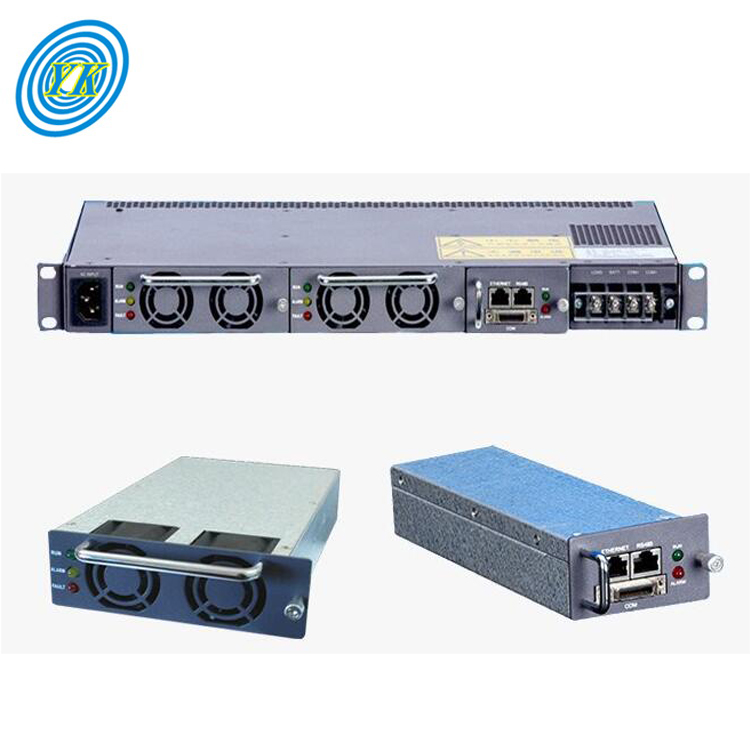

1. Small size, height 1U, 2 *30A rectifier module
2. Configurable module: 10A, 15A, 20A, 30A for option
3. The standard 19-inch installation
4. Improve monitoring and management and battery management
5. Provide RS485 communication interface
6. 1 channel load output, 1 channel battery input
7. Battery anti-reverse function
8. Under electrical function
9. Support hot-swappable
10.The energy-saving sleep function
11.The independent design of lightning protection unit (optional)
12.The power supply can be installed in any 19-inch rack independently
Product Parameters
| Model Number | YK-GPE4860 |
Output Power | 2880W |
Output Type | Single |
Output Frequency | 50/60HZ |
Output Current | 60A |
Warranty | 1 Year |
Power Factor | ≥0.99 |
Efficiency | ≥92% |
Rated output voltage range | 43VDC-58VDC |
Output rated current | 0A-60A |
Regulation accuracy | ≤±0.6 |
Peak to peak | ≤200mV |
Equal current | ≤5% |
Battery interface | 1-2way |
Dimensions | 482.6*44*350mm |
N.W. | 5KG |
Details Images
