Yucoo Portable power station 500W Portable power supply Mutil -function portable power station
USD405
Customized logo (Min. Order: 300 Sets)
Customized packaging (Min. Order: 300 Sets)
Graphic customization (Min. Order: 300 Sets)
Trade Assurance
On-time Dispatch Guarantee
Refund Policy
Quick Details
- Product name:
- Portable power supply
- Model number:
- YK-TL500
- Input :
- DC19V/3.75A
- Solar Panel Input:
- DC18-22V/3.75A MAX
- Operation temperature:
- -10℃-40℃
- DC Output:
- DC output 12~16.5V/10A(15A Max) (DC5521)
- AC Output rated voltage:
- AC Voltage: 110/220VAC ± 10%
- Output power:
- Rate Power：500W Pure Sine Wave
- Product Size(mm):
- 311*256*182MM
- Product Weight(kg):
- 5.8kg
Product Description
1.R&D and design the circuit by yourself;
2. Built-in charging function, built-in UPS function, built-in high-frequency inverter technology.
3. Purchasing portable lithium battery technology, greatly reducing the volume and weight of the product.
4. Adopt the charging and use technology, which is convenient for users to use.
5. There are three charging methods including mains charging, solar charging and vehicle charging.
6. Aluminum alloy shell, it can be used even at high temperature.
7. While using AC output, you can also use DC output, LED lighting.
8. The current data is always displayed when the battery is charged, including Short-circuit, Over-current protection,
Over-voltage, Low-voltage, Over-load and Over-temperature protection
9, the products have been tested by the national certification body, and the quality is guaranteed.
Product Parameters
Model | YK-TL500 | ||
Built-in Battery | High Quality Lithium ion Batteries 486Wh(135000mAh/3.6V) | ||
Input Charging | Power adapter：DC19V/3.75A | ||
Solar panel charger：DC18-22V/3.75A MAX | |||
Fully Charged Time：7h~8h | |||
AC Output | Rate Power：500W Pure Sine Wave | ||
Peak power：750W | |||
AC Voltage:110/220VAC ± 10% | |||
Output Frequency: 60/50HZ ± 10% | |||
DC Output | 2*DC output 12/10A(DC5521) | ||
USB Output | 3x USB 5V/2.4A, QC3.0, PD18W 1 x Type-C ,PD27W 1 x Type-C PD60W | ||
Bulb Type | 7W Ultra bright LED light with SOS/Blink mode | ||
Operation temperature | -10℃-40℃ | ||
Lifecycle | 500 times | ||
Certification | CE,FCC,RoHS,PSE，MSDS,UN38.3 | ||

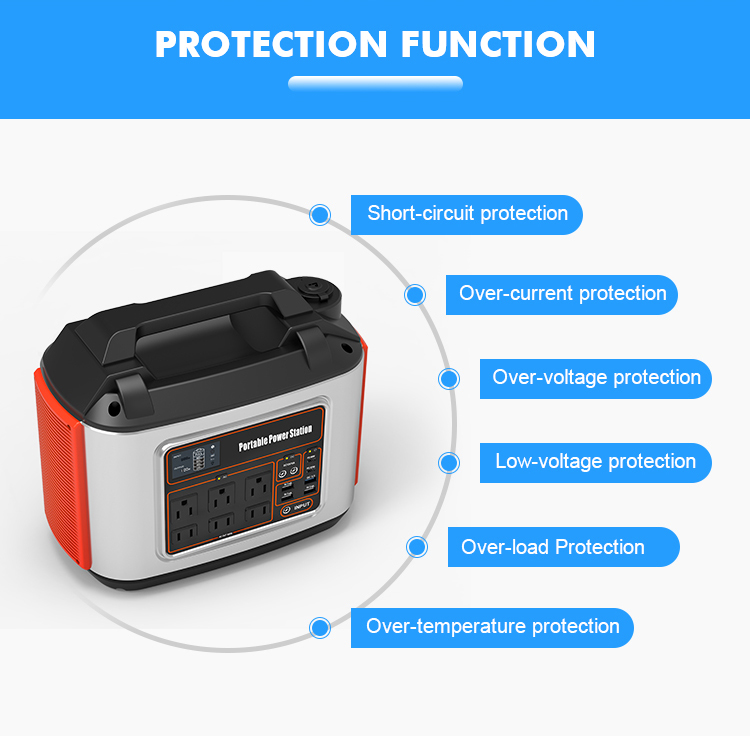

Multi-Protections | Short-circuit protection | Over-current protection | Over-voltage protection |
Low-voltage protection | Over-load Protection | Over-temperature protection | |

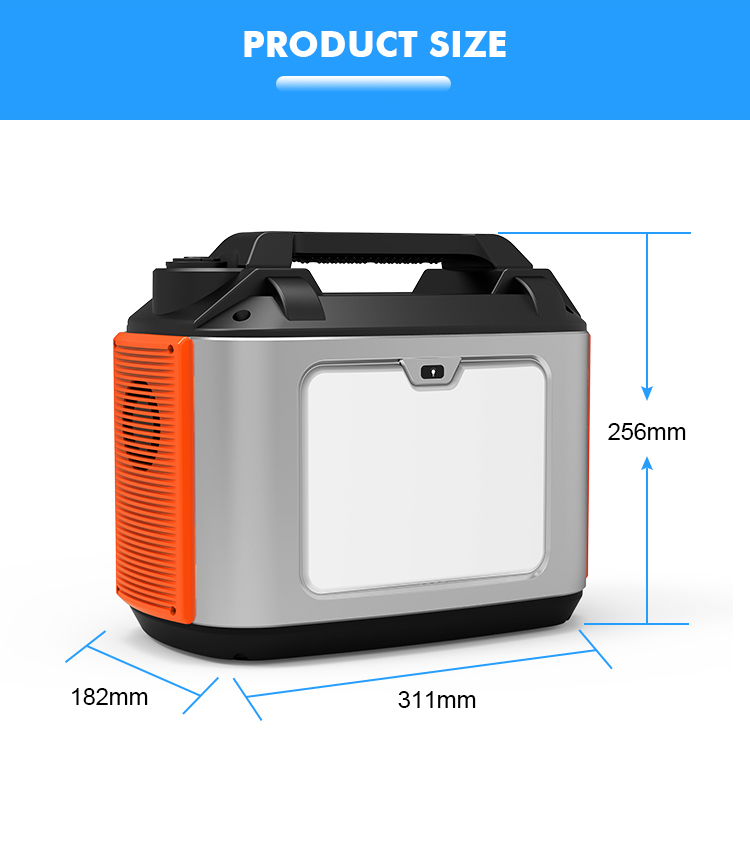

Size(mm) | 311*256*182MM | ||
Weight(kg) | 5.8kg | ||
Details Images
