Yucoo Portable power station 500W Portable power supply Mutil -function portable generater

USD382.3-417

AC Input Charging

AC TO DC（19~24V/5A）Adapter

Output Voltage

100V(95 ~ 115V) / 220V(215 ~ 225V)

Output Power

500W

Customization

Customized logo (Min. Order: 300 Sets)

Customized packaging (Min. Order: 300 Sets)

Graphic customization (Min. Order: 300 Sets)

Protection

Trade Assurance

On-time Dispatch Guarantee

Refund Policy

Product Details

Quick Details

Product name:: Portable power supply

Model number:: YK-WE500

AC Input :: AC TO DC（19~24V/5A）Adapter

Solar Panel Input:: 18~23V/5A Max

CAR Input:: 12~15V/8A Max

USB-C:: PD3.0 5-20V 60W Max

AC Output rated voltage:: 100V(95 ~ 115V) / 220V(215 ~ 225V)

Output power:: 500W

Product Size(mm):: 210*226*150mm

Product Weight(kg):: 6KG

Product Description

1.500Wh;

2. AC output 500W

3. LED highlight display

4. Solar charging function

5. BMS lithium battery multi-level protection

6. Dynamic power display

7. Aluminum alloy housing

8. PD3.0 45W output

9. 4USB

10.10W lighting

11. Fanless design

12. Adapter, car charging, etc.

13. With waterproof function

Product Parameters

Model		YK-WE500	YK-WE1000
Built-in Battery(High Quality 18650 lithium ion Batteries)		500Wh (135200mAh/14.8V)	1000Wh (270000mAh/14.8V)
Input Charging	AC Input Charging	AC TO DC（19~24V/5A）Adapter
	Solar Panel Input	18~23V/5A Max
	CAR Input Charging	12~15V/8A Max
	USB-C	PD3.0 5-20V 60W Max

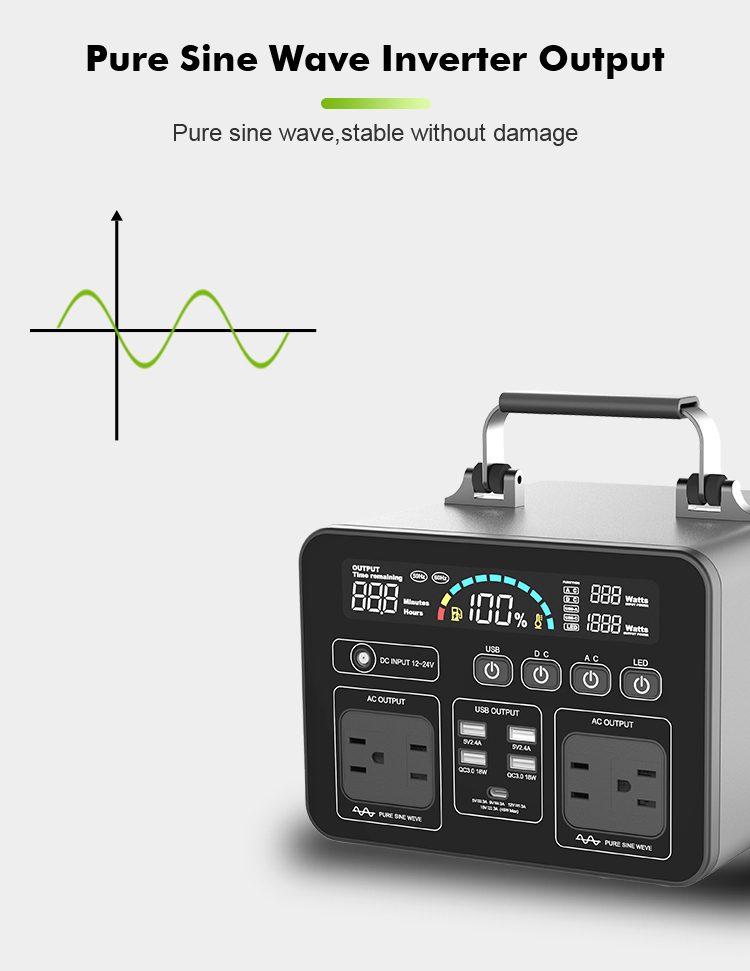

AC Output	Output waveform	Pure sine wave
	Output rated voltage	100V(95 ~ 115V) / 220V(215 ~ 225V)
	Output rated frequency	50Hz/60Hz±3HZ
	Rated output power	500W	1000W
DC Output		4xDC output 13V±5%V/5A(max12A±10%) (DC5521)
		1xCigarette Lighter:13V±5%V/10A(max12A±10%)
Display		LCD Display
Cooling method		Aluminum chassis heat dissipation and natural cooling (without fan design)
USB Output		2 x USB QC3.0; 2 x USB 5V2.4A 1 x USB-C 5~20V/3A( PD3.0)
Bulb Type		5W LED (Low,High,SOS,Flash mode)
Operation temperature		Charging: 0℃~45℃
		Discharge: -10℃~45℃
Inverter efficiency (70% load)		>;;;;;90%
Certification		FCC, UN38.3, PSE, MSDS, CE, ROHS
Multi-Protections		Short-circuit protection
		Over-current protection
		Over-voltage protection
		Low-voltage protection
		Over-load Protection
		Over-temperature protection

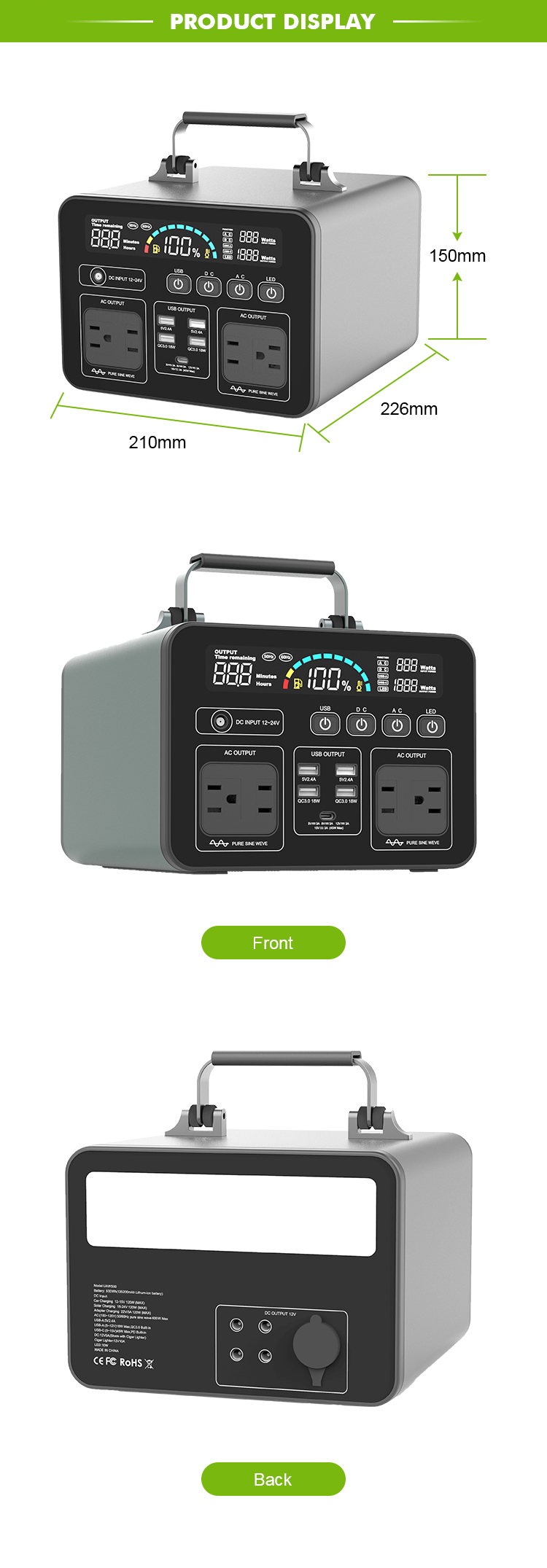

Product Size(mm)		210226150mm	210290150mm
Product Weight(kg)		6KG	10KG
Accessories		1 x AC Power Adapter
		1 x AC Power Cord
		1 x Car Cigarette Cable
		1 x User manual

Details Images

微安产品UAW500-详情页_01.jpg 微安产品UAW500-详情页_02.jpg 微安产品UAW500-详情页_03.jpg 微安产品UAW500-详情页_05.jpg 微安产品UAW500-详情页_04.jpg 微安产品UAW500-详情页_06.jpg 微安产品UAW500-详情页_07.jpg 微安产品UAW500-详情页_08.jpg
