Home > All Industries > Adjustable DC Power Supply > 1000W Adjustable DC Power Supply
  • 0-5v 0-200 amps variable voltage 1000w ac dc power supply
  • Move the mouse over the graph to enlarge the picture
  • 0-5v 0-200 amps variable voltage 1000w ac dc power supply 0-5v 0-200 amps variable voltage 1000w ac dc power supply 0-5v 0-200 amps variable voltage 1000w ac dc power supply 0-5v 0-200 amps variable voltage 1000w ac dc power supply 0-5v 0-200 amps variable voltage 1000w ac dc power supply

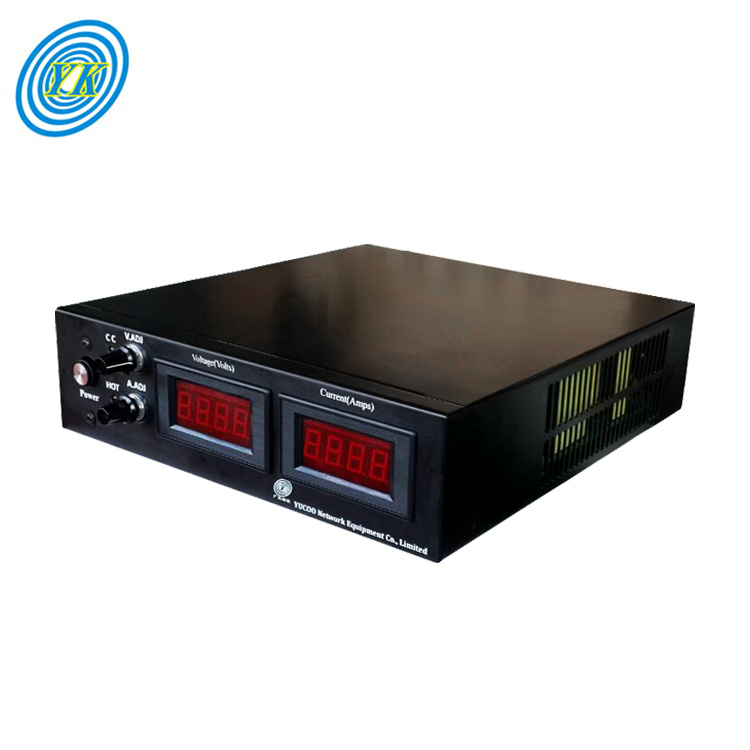

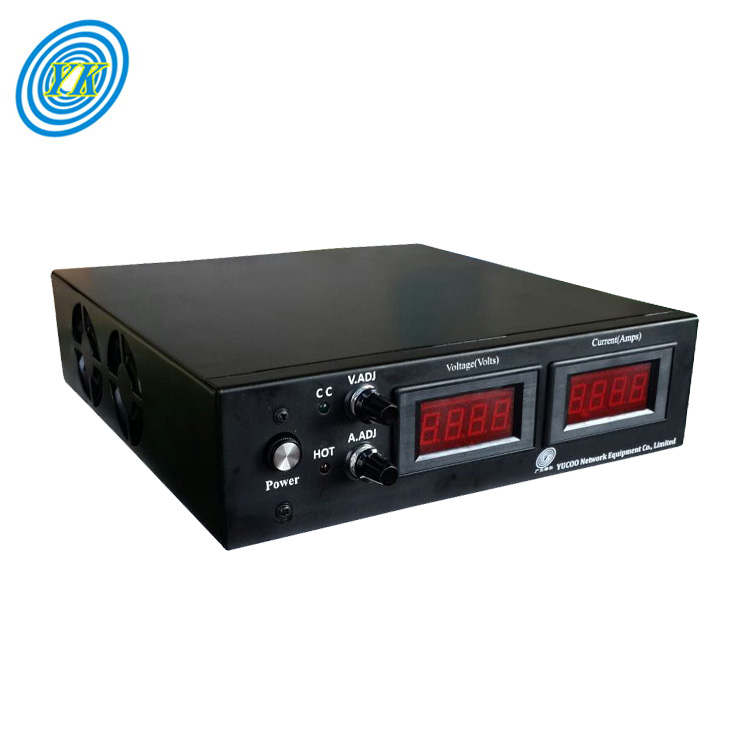

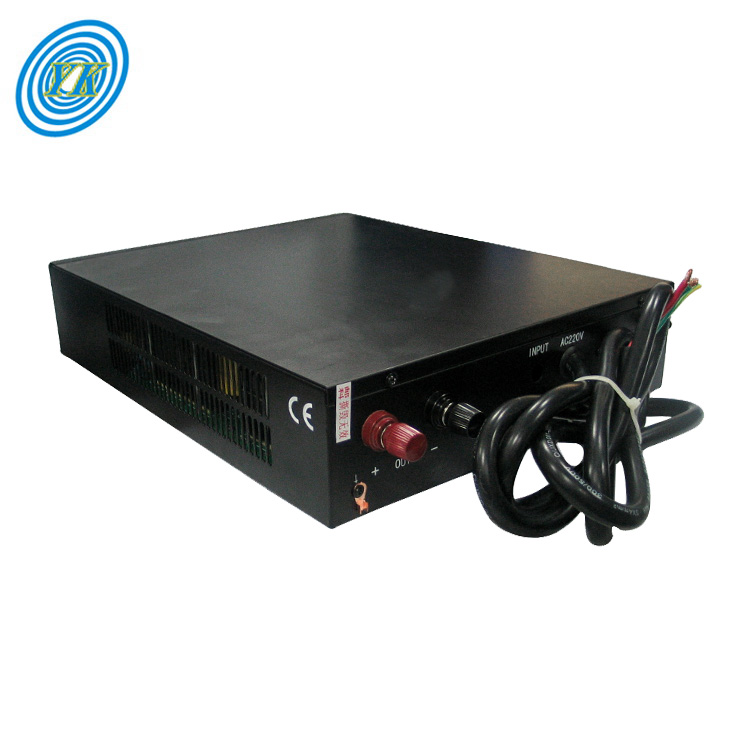

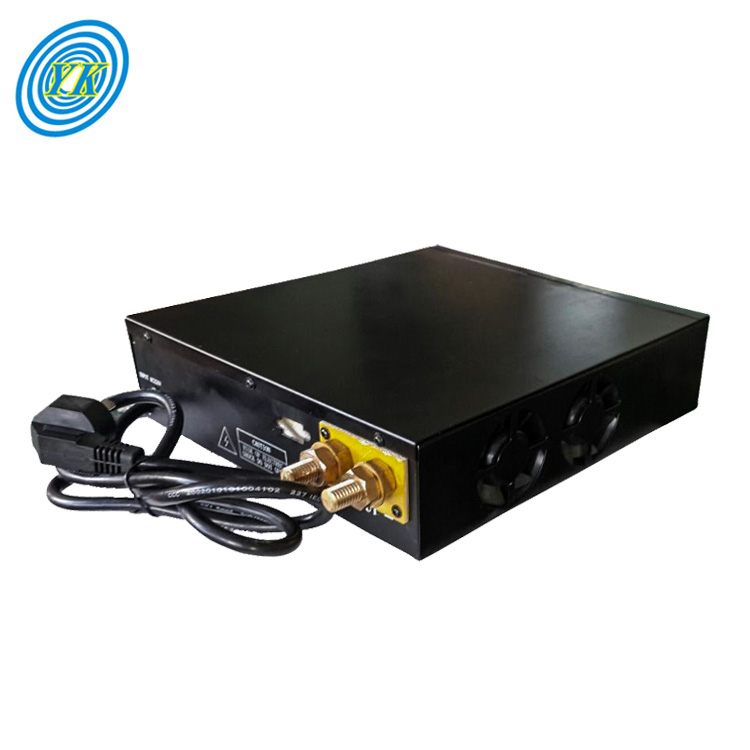

0-5v 0-200 amps variable voltage 1000w ac dc power supply

USD300-500

  • Input Voltage
  • 1phase AC110V/220v±15%
  • Output Voltage
  • 0-5VDC
  • Output Power
  • 1000W
  • Customization
  • Customized logo (Min. Order: 300 Sets)

    Customized packaging (Min. Order: 300 Sets)

    Graphic customization (Min. Order: 300 Sets)

  • Protection
  • Trade Assurance

    On-time Dispatch Guarantee

    Refund Policy

  • Product Details

    Quick Details

    Product Name:
    variable power supply
    Input :
    220Vac
    Output voltage:
    0-5V
    Output currents:
    0-200A
    Protection:
    output overvoltage, over-current and short-circuit protection
    Power:
    1000W
    weight:
    5.5Kg
    warranty:
    12months
    Display Type::
    Digital display
    MTTF:
    ≥50000h


    Product Description

    1. Advanced switching mode power supply technology and components, excellent design, small volume, light weight, high efficiency, which ensures the stability and reliability of long-term full-load operation.

    2. Constant voltage value and constant current value can be continuously adjustable within the range 0~100%

    3. Digital display output voltage and output current.

    4. Temperature control fan, over-temperature automatic protection; output overvoltage, over-current and short-circuit protection; start up delay soft starting can avoid the overshoot voltage when start up.

    5. Simple operation, convenient use.

    6. Store temperature: (-40~70), Working temperature: (-20~50)

    7. Relative humidity: 90% (40±2), atmospheric pressure (70-106)kPa

    Customize range

    Regards the Variable DC power supply,

    We can customize any constant voltage and constant current according to your request.

    Such as:

    1. 0-1500V variable or appointed

    2. 0-2000A variable or appointed

    Product Parameters

    Product name

    Adjustable DC Power Supply

    Model

    YK-AD5200

    Output range0-5VDC 0-200A
    Power1000W
    Output mode

    Constant voltage (or appointed) variable/adjustable

    Constant current (or appointed) variable/adjustable

    AC wide input
    1phase AC110V±15% 50/60Hz/1phase AC220V±15% 50/60Hz
    Source Voltage Regulationconstant voltage ≤0.2%
    Load Regulationconstant voltage ≤1%; constant current≤2%
    Line regulation
    constant voltage ≤0.3%

    Ripple Voltage

    total ripple Vpp≤2% (max voltage)(60V*2%=1.2V)

    100Hz Ripple: Vpp≤0.5%(max voltage)(60V*0.5%=0.3V)

    Operation Environment temperature(-10~45)℃
    Efficiency

    ≥89%

    Digital meter

    voltage meter and current meter

    Digital display

    Precision of output voltage±1.5%

    Precision of output current±2.0%

    Insulating resistanceInput-Output:≥20MΩ/Input— Shell:≥20MΩ/Output-Shell:≥80MΩ
    Insulating Strength≥AC1500V
    Imbalance of equalized current≤5%+2.5A
    Protection

    Temperature control fan, over-temperature automatic protection;

    output overvoltage,over-current and short-circuit protection;

    switch-on delay soft starting can avoid the

    over swung output voltage when switching on.

    Over heat shut off temperature(70~80)℃
    Radiating wind hole

    Internal radiating wind hole

    MTTF

    ≥50000h

    Dimension

    240*68*210mm

    NW

    3.5KG


    Details Images
