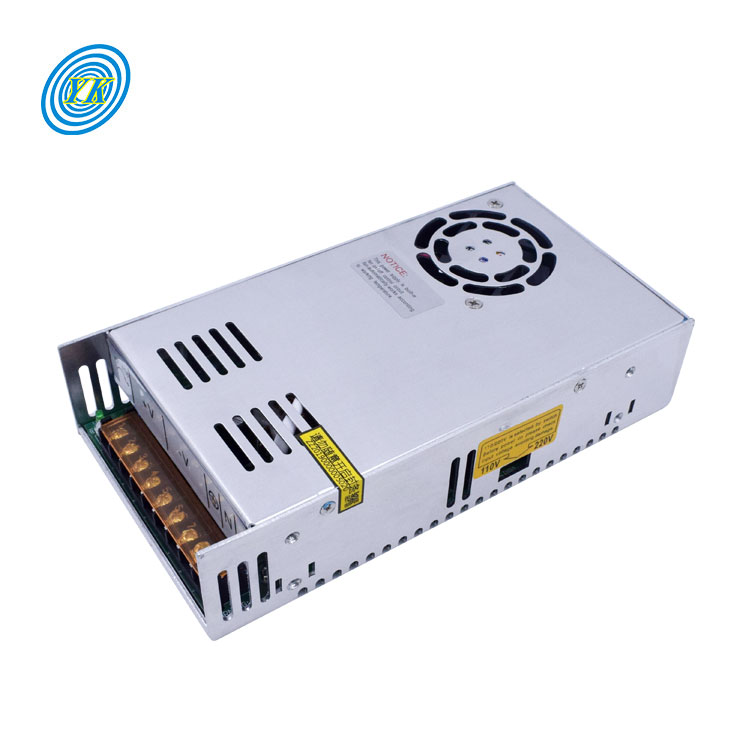

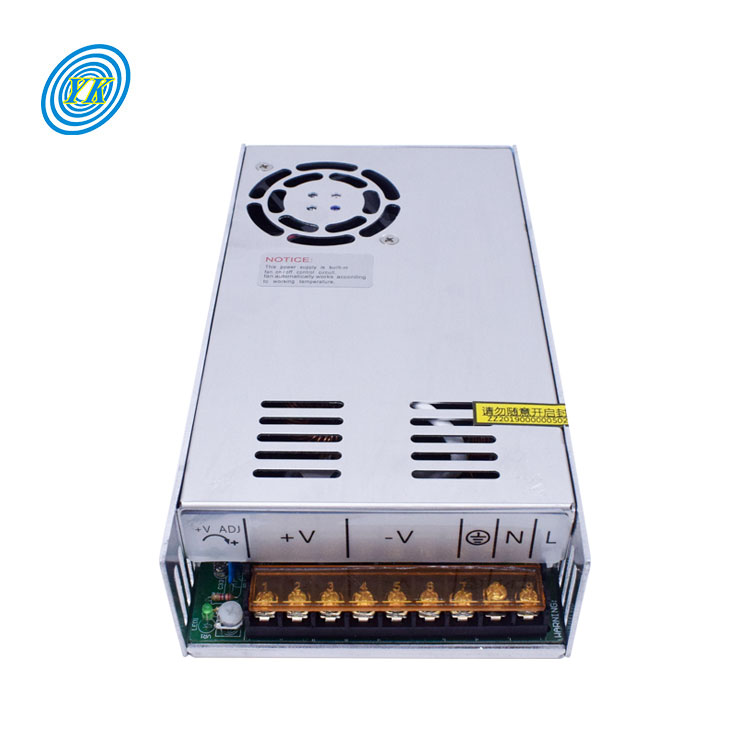

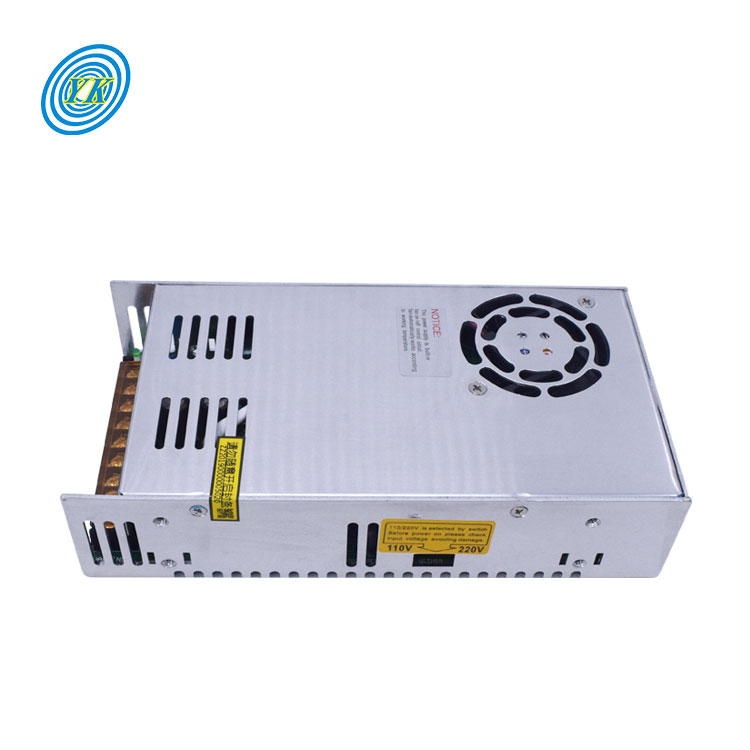

  • Yucoo 5V 50A 250W Switching power supply ac to dc power supply 5v
  • Move the mouse over the graph to enlarge the picture
  • Yucoo 5V 50A 250W Switching power supply ac to dc power supply 5v Yucoo 5V 50A 250W Switching power supply ac to dc power supply 5v Yucoo 5V 50A 250W Switching power supply ac to dc power supply 5v Yucoo 5V 50A 250W Switching power supply ac to dc power supply 5v Yucoo 5V 50A 250W Switching power supply ac to dc power supply 5v

Yucoo 5V 50A 250W Switching power supply ac to dc power supply 5v

USD17-18.4

  • Output Power
  • 250W
  • Output current
  • 50A
  • Output Voltage
  • 5VDC
  • Customization
  • Customized logo (Min. Order: 300 Sets)

    Customized packaging (Min. Order: 300 Sets)

    Graphic customization (Min. Order: 300 Sets)

  • Protection
  • Trade Assurance

    On-time Dispatch Guarantee

    Refund Policy

  • Product Details

    Quick Details

    Product name:
    switching power supply
    Model Number:
    YK-AD0550
    Efficiency:
    >70%
    AC Input Range:
    100-264VAC, 47Hz~63Hz (154VDC~370VDC)
    Output voltage:
    5VDC
    Output Current:
    50A
    Rated Power:
    250W
    Warrenty:
    3 YEAR
    Weight:
    936.3G
    Dimension:
    215*110*50mm


    Product Description

    · AC input range selectable by switch

    · Withstand 300VAC surge input for 5 second

    · Protections: Short circuit / Overload / Over voltage / Over temperature

    · Forced air cooling bu built-in DC fan

    · Built-in cooling Fan ON-OFF control

    · 1U low profile

    · Withstand 5G vivration test

    · LED indicator for power on

    · No load power consumption<;;;;;;;0.75W

    · 100% full load burn-in test

    · High operastion temperature up to 70°C

    · Operating altitude up to 5000 meters

    · High efficiency, long life and high reliability

    · 3 years warranty

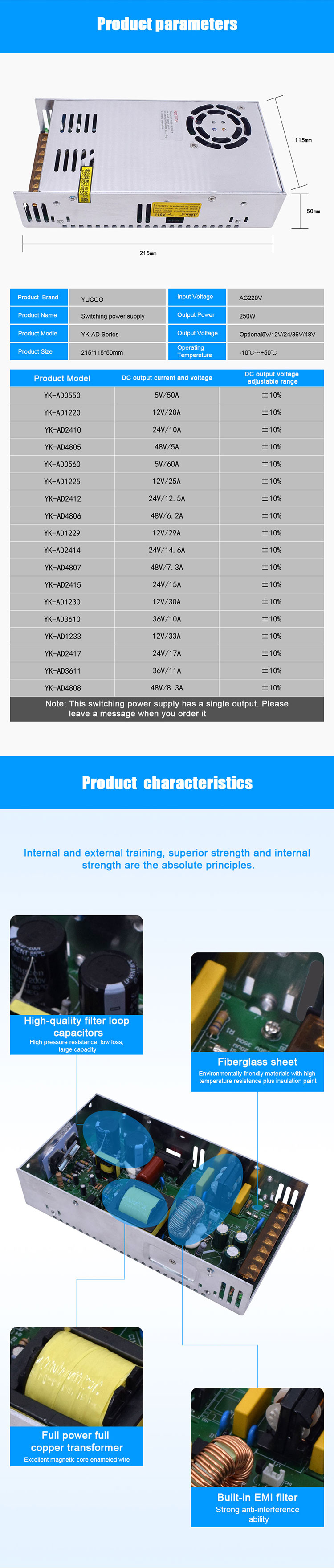

    Product Parameters

    Model NumberYK-AD0550

    DC output voltage

    5V

    Rated output

    current

    50A

    Rated output

    power

    250W

    Ripple and noise

    <150mV

    Voltage accuracy

    ±1%

    Output voltage

    adjustment range

    ±10%

    Load Regulation

    <±1.5%

    Line adjustment

    rate

    <±0.5%

    Efficiency (typical)

    >74%

    Overload

    protection

    When the output power is greater than 115% -135%, the voltage starts to drop.

    +VO drops to the Under voltage point. Cut off the output and reset: Power up again

    Output

    undervoltage

    protection

    35%-45%VOUT

    Input voltage range

    90-132VAC/180-264VAC, 47Hz~63Hz (254VDC~370VDC)

    Maximum input

    operating current

    <2.8A 115VAC <1.7A 230VAC

    Input inrush current

    115VAC 25A, 220VAC/50A

    Start, rise, hold

    time

    200ms、50ms、20ms :220VAC

    Withstand voltage

    Input-output: 1.5KVAC Input-case: 1.5kVAC

    Output-case: 0.5KVAC lasted 1 minute

    Leakage current

    Input-output at 1.5KVAC <;;;;;;;;;5mA

    Leakage current

    Input-output 220VAC <;;;;;;;;;1mA

    Isolation resistance

    Input-output, input-case, output-case: 500VDC / 100MΩ

    Working

    temperature and

    humidity

    -10℃~+50℃;20%~90RH

    Storage

    temperature and

    humidity

    -20℃~+85℃;10%~95RH

    Dimensions

    215*110*50mm

    N.W.

    936.3g

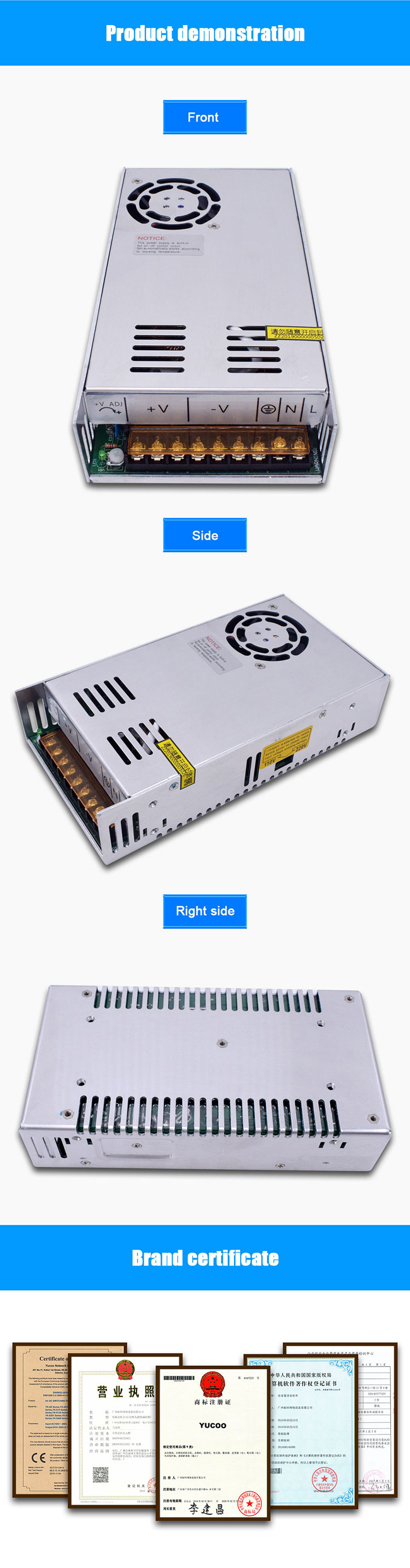

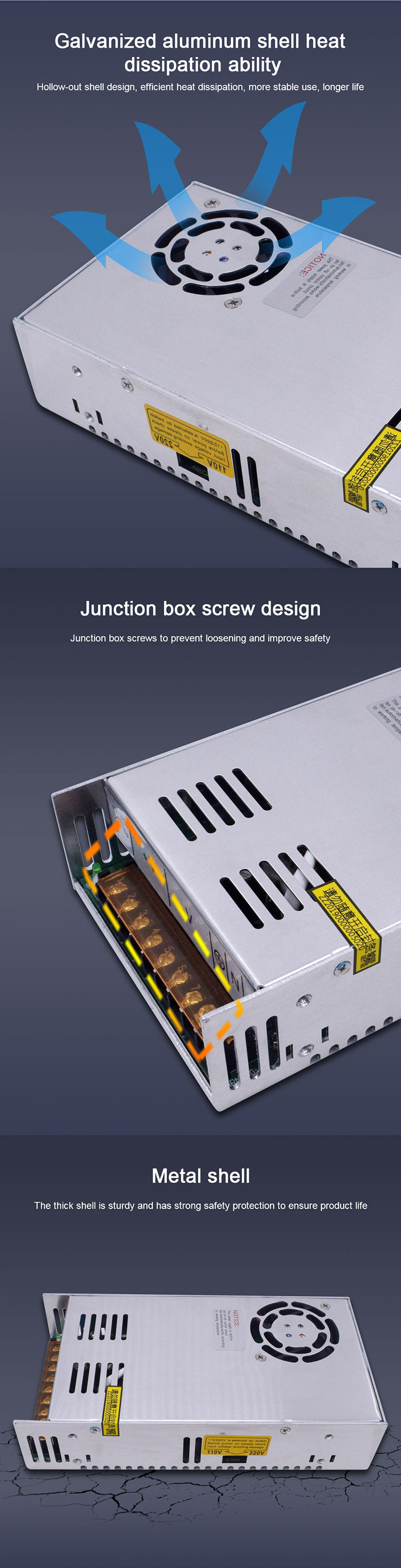

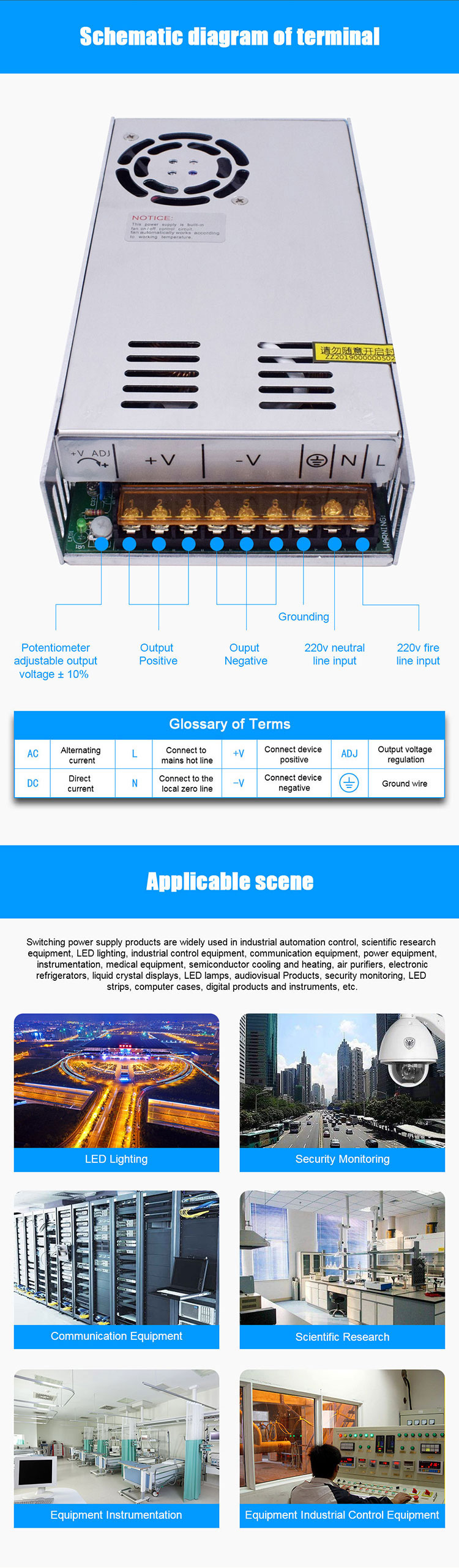

    Details Images
