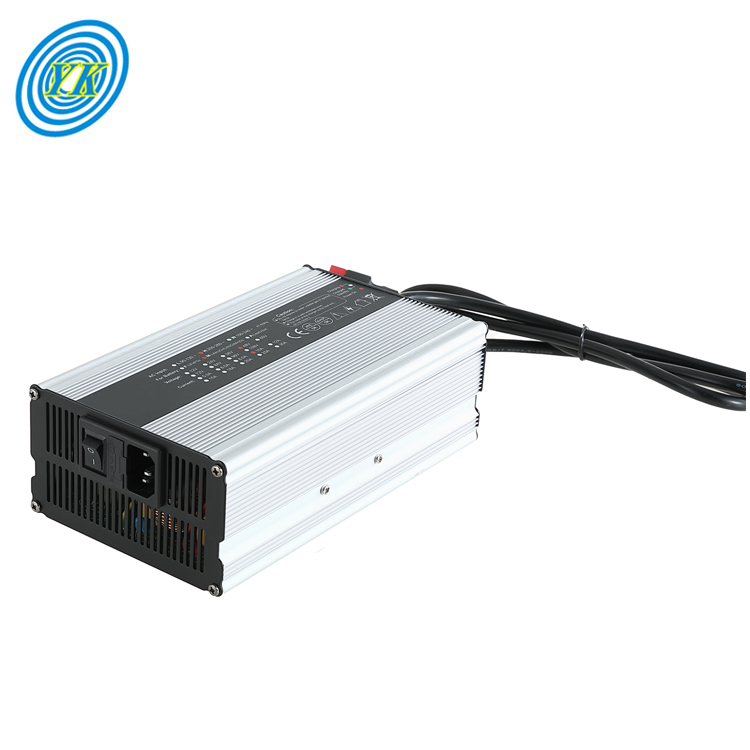

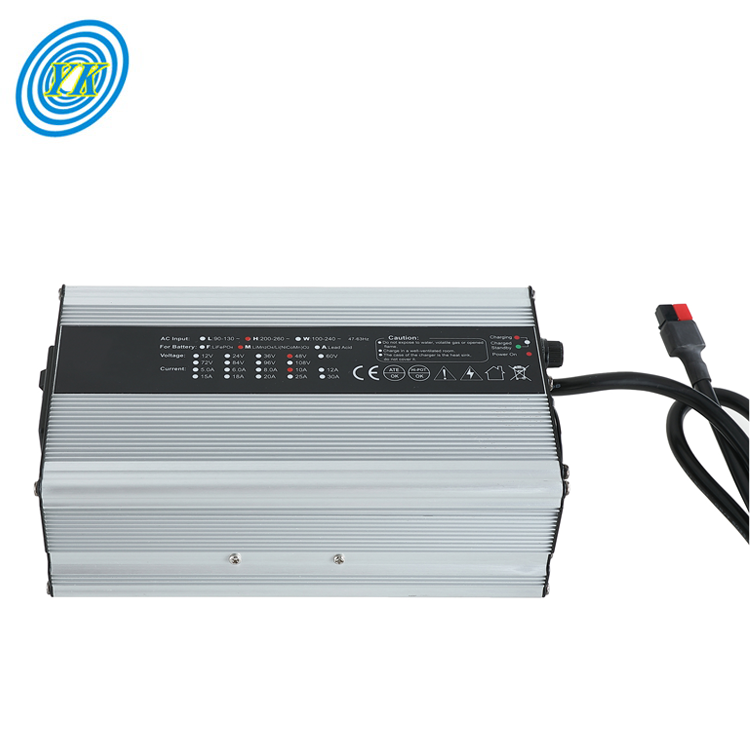

Yucoo 72V 6A lead acid Battery Charger for Civil use 432W

USD74-80.2

Output Voltage

72V

Output current

Output Power

432W

Customization

Customized logo (Min. Order: 300 Sets)

Customized packaging (Min. Order: 300 Sets)

Graphic customization (Min. Order: 300 Sets)

Protection

Trade Assurance

On-time Dispatch Guarantee

Refund Policy

Product Details

Quick Details

Product Description

AC input: AC: 85-130v/180-264v (Pull switch), 47 to 63Hz

Output power:600W

DC output voltage: 12V/25A, 24V/18A, 36V/12A, 48V/10A, 60V/8A, 72V/6A

LED indicator light logo: red and green, double color instructions, red charging green finished or standby

Efficiency: >;;;;85%

MTBF: 30000 hours

Main export markets: Asia/Eastern Europe/Mid East/Africa/Australasia/North America/Central/South America/

Western Europe

Product Parameters

Product name	battery charger
Model	YK-BUY600-7206
Input Voltage	AC:180-264v/95-120v
Output Voltage	72VDC
Output Current	6Amps
Output Power	432Watts
Inrush current	Cold start 35A (220Vac Input)
Input Current	Max 13.5A
Frequency	47-63hz
Input fuse	15A
Weight	2.5kg
Size	20712070MM
Leakage current	＜0.75mA
Isolated	Input to output : 1500Vac 50hz 1min ≤10mA Input to case :1500Vac 50Hz 1min≤10mA Output to case :500Vac 50Hz 1min≤10mA
Voltage setting accuracy	+/-1% (100/264Vac input)
Total output voltage adjustable rate	1%
Ripple	250mVp-p Main output (board edge) Test with adding 0.1Uf ceramic capacitor and10Uf tantalum capacitor filter at the output and the bandwidth is 20Mhz
Charging Time	Cut-off point for Li battery is 5% of CC and it can be set between 3-10%.（charging time:4 hours
Operating Temperature	-15℃~+60℃
Store Temperature	(-40~+80)℃
Related humidity	5% to 95% RH Non-condensing
Protection Function	Over voltage/Over temperature/Over current/Short circuit and Reverse polarity Protect
Warranty	1 YEAR
MTBF	30000h
