DC DC buck step down module 48V to 13.8V 60A converter step down buck converter
USD 45-47
Customized logo (Min. Order: 300 Sets)
Customized packaging (Min. Order: 300 Sets)
Graphic customization (Min. Order: 300 Sets)
Trade Assurance
On-time Dispatch Guarantee
Refund Policy
Quick Details
- Product name:
- DC DC Converter
- Input voltage:
- 48VDC(30--60VDC)
- Output voltage:
- 13.8VDC
- Current:
- 60A
- Certificate:
- CE ROHS
- Protections:
- Over-current / voltage / load protection
- Warranty:
- 1 year
- Working temperature:
- -40 ~ +80°c
- Output rated power:
- 828W
- Size:
- 150*130*50mm
Product Description
Constant voltage design
SMT Process
Non-Isolated Module
Wide input range
Built-in EMI filter, low ripple noise
100% full load burn-in test
Certificates :CE
Waterproof level : IP67
Protections: Short circuit/Over load /voltage / Automatic recovery work
Ultra compact size, light weight , high reliability
1 year warranty, lifetime up to 100,000 hours
Product Parameters
Model | YK-DD48S13.860 |
Input rated voltage | 48VDC |
Input voltage range | (30--60Vdc) |
Efficiency | 96% |
Output voltage | 13.8V DC |
Output current | 60Amps |
Output rated power | 828 Watts |
| Working Temperature | -35℃--85℃ |
Waterproof rating | IP 67 |
Protections | Over-temperature, Over-voltage |
Machine size | 150*130*50mm |
N. Weight | 1.5kg |
Cooling way | Free air convection |
Certifications | CE, RoHS |
Others | Carton packing |

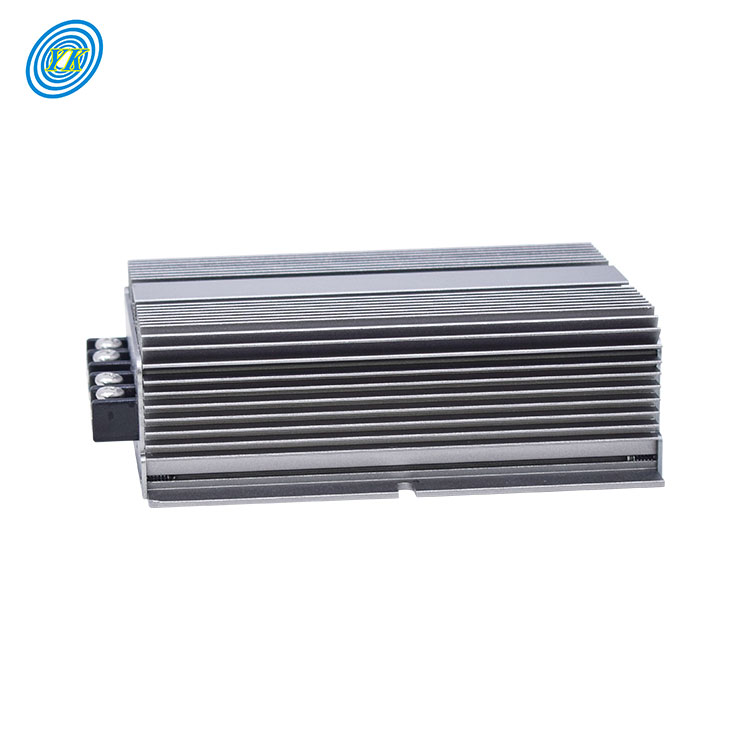

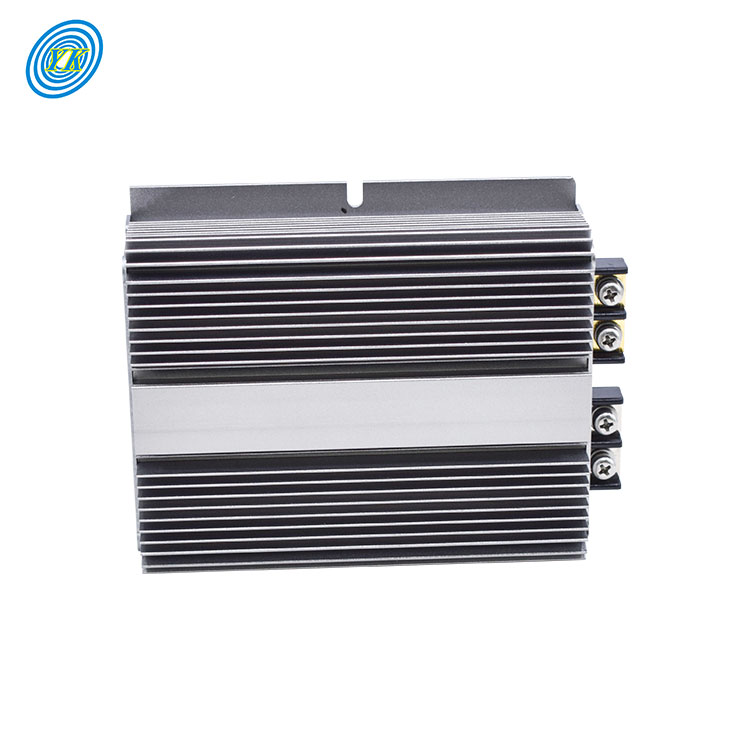

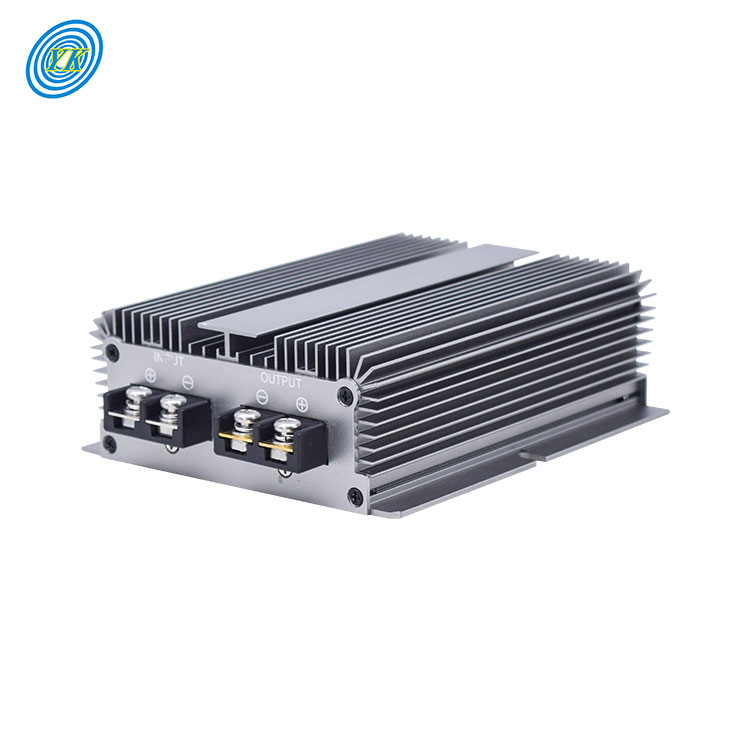

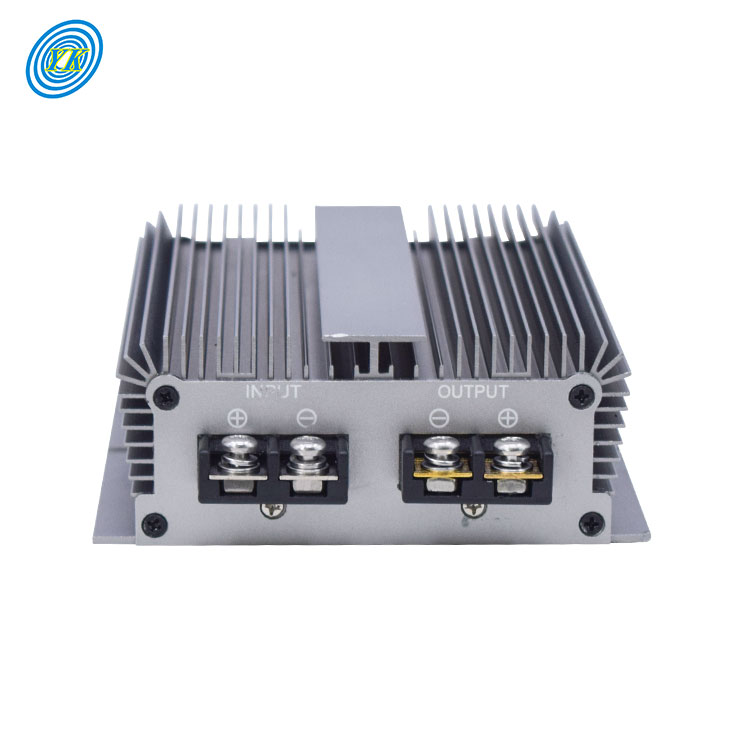

Detail Images
Recommend Products Range
| BUCK DC-DC CONVERTER MODEL LIST | |||
| Model Series | Input-V | Output-V | Output Current |
| YK-DD1224S5** | 12V/24V | 5v | 3A|5A|10A|15A|20A|30A|40A|50A|60A |
| YK-DD24S12** | 24v | 12v | 1.5A|3A|5A|8A|10A|15A|20A|30A|40A|50A|60A|85A|100A |
| YK-DD24S13.8** | 24v | 13.8V | 5A|10A|15A|20A|30A|40A|50A|60A |
| YK-DD24S19** | 24V | 19V | 5A|10A|15A |
| YK-DD36S12** | 36V | 12V | 5A|10A|15A|20A|30A|50A|60A |
| YK-DD48S5** | 48V | 5V | 5A|10A|15A|20A |
| YK-DD48S12** | 48V | 12V | 5A|10A|15A|20A|30A|40A|50A|60A |
| YK-DD48S13.8** | 48V | 13.8V | 5A|10A|15A|20A|30A|40A|50A|60A |
| YK-DD48S19** | 48V | 19V | 5A|8A|10A |
| YK-DD48S24** | 48V | 24V | 3A|5A|10A|15A|20A|30A|40A|50A |
| YK-DD60S12** | 60V | 12V | 5A|10A|15A |
| YK-DD60S24** | 60V | 24V | 5A|10A |
| BOOST DC-DC CONVERTER MODEL LIST | |||
| Model Series | Input-V | Output-V | Output Current |
| YK-DD12S24** | 12V | 24V | 1A|2A|3A|5A|8A|10A|15A|20A|25A|30A|40A|50A |
| YK-DD12S19** | 12V | 19V | 5A|8A|10A|15A|20A |
| YK-DD12S28** | 12V | 28V | 3A|5A|8A|10A|15A|20A|25A|30A|40A |
| YK-DD12S48** | 12V | 48V | 1A|2A|3A|4A|8A|10A|15A|20A |
| YK-DD24S48** | 24V | 48V | 3A|5A|10A|20A|30A|40A |
| YK-DD24S36** | 24V | 36V | 5A |
| BUCK& BOOST DC-DC CONVERTER MODEL LIST | |||
| Model Series | Input-V | Output-V | Output Current |
| YK-DD12S12** | 8-40V | 12V | 1A|2A|3A|5A|6A|10A|15A|20A|25A |
| YK-DD12S13.8** | 8-40V | 13.8V | 3A|5A|10A|15A|20A|25A |
| YK-DD24S24** | 9-40V | 24V | 2A|3A|4A|6A|10A|15A |
