Dc converter 12V 24V to 5V 15A dc step down converter

USD7.65-8.55

Input Voltage

12/24VDC

Output Voltage

5VDC

Output Voltage

15A

Out Power

75W

Customization

Customized logo (Min. Order: 300 Sets)

Customized packaging (Min. Order: 300 Sets)

Graphic customization (Min. Order: 300 Sets)

Protection

Trade Assurance

On-time Dispatch Guarantee

Refund Policy

Product Details

Quick Details

Product name:: dc to dc converter 12/24V to 5V

Place of Origin:: Guangdong, China

Brand Name:: YUCOO

Output Type:: Single

Type:: DC/DC Converters

Input voltage range:: 9-32V DC

Voltage regulation:: < 1%

Load regulation:: < 2%

Output peak power:: 125%

Ripple (full load test):: < 120-130mV

No-load current:: < 30mA

Product Description

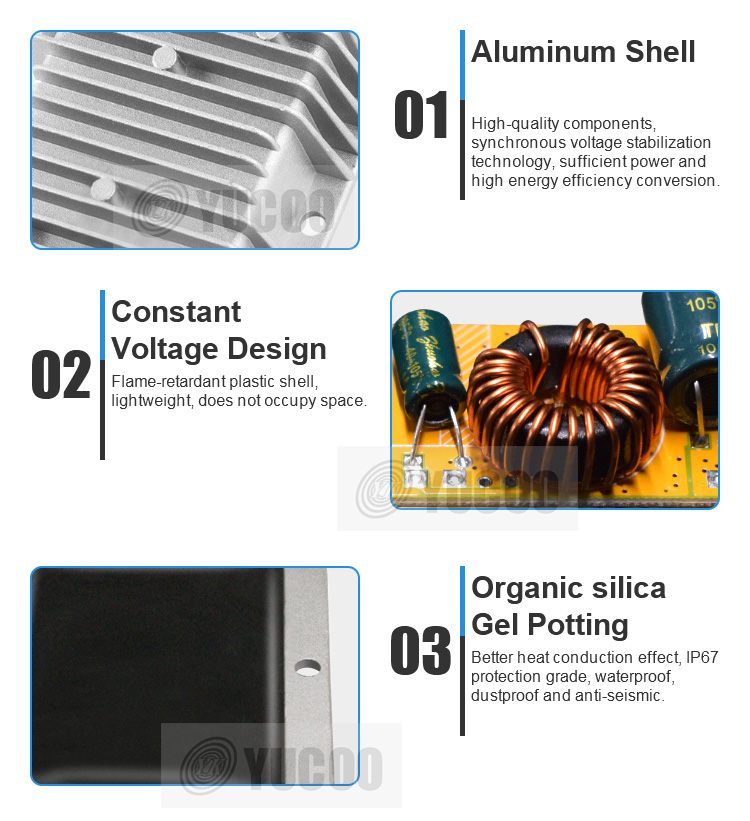

1. Constant voltage design

2. SMT Process

3. Non-Isolated Module

4. Wide input range

5. Built-in EMI filter, low ripple noise

6.100% full load burn-in test

7. Certificates :CE

8. Waterproof level : IP67

9. Protections: Short circuit/Over load /voltage /Automatic recovery work

10. Ultra compact size, light weight , high reliability

11. 1 year warranty, lifetime up to 100,000 hours

Product Parameters

Product name	DC DC Converter
Model	YK-DD1224S515
Input Voltage	12/24 VDC
Voltage range	9~32 VDC
Output Voltage	5 VDC
Output Current	15 Amps
Output Power	75 Watts
Effciency	92%
Working temperature	-40℃~+80℃
IP rating	IP68
Weight	250G

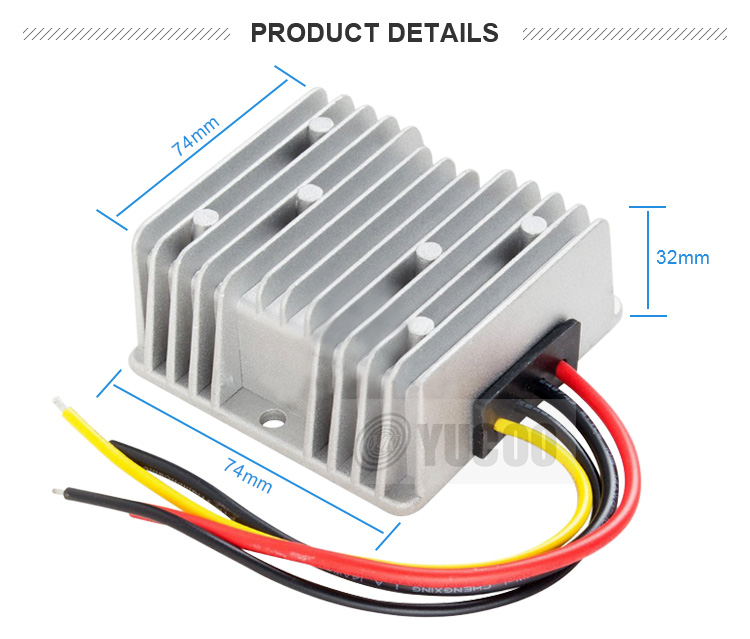

Size	747432MM
Installation length	13-15cm
Application	Motor, audio, navigation, monitoring, LED display, air conditioning, electric fans, solar energy, photovoltaic energy, DVD lights,motors, pumps and industrial equipment

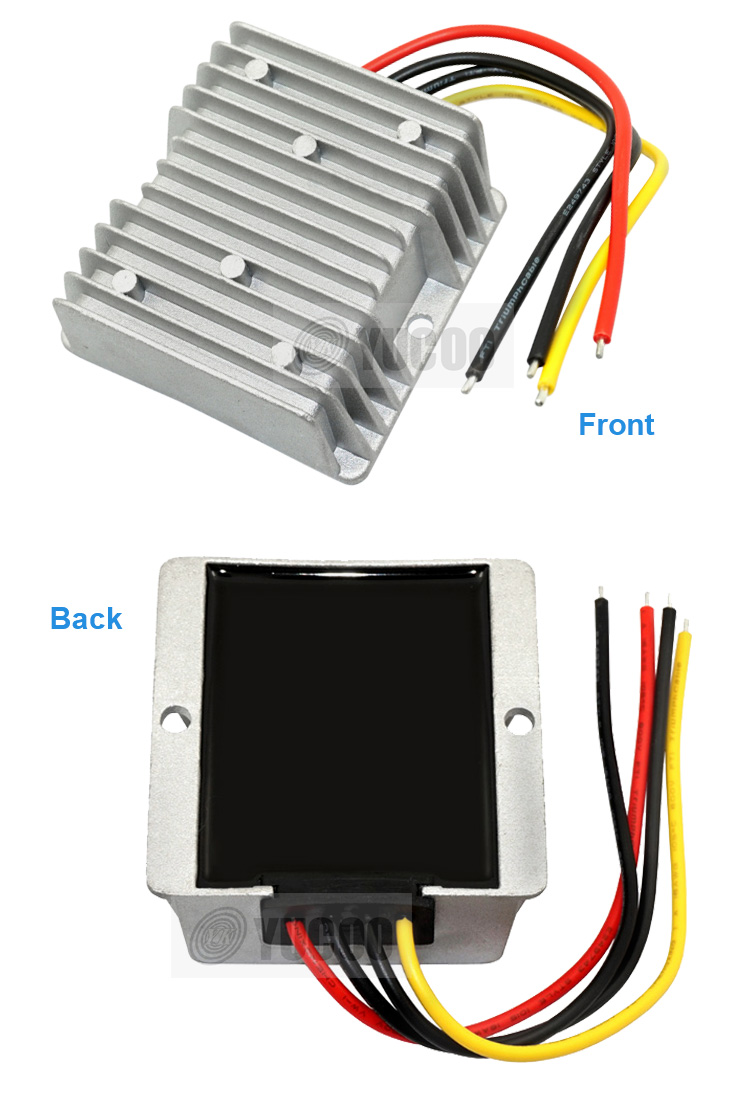

Details Images

photobank (3).jpg

Recommend Products Range

BUCK DC-DC CONVERTER MODEL LIST
Model Series	Input-V	Output-V	Output Current
YK-DD1224S5**	12V/24V	5v	3A\|5A\|10A\|15A\|20A\|30A\|40A\|50A\|60A
YK-DD24S12**	24v	12v	1.5A\|3A\|5A\|8A\|10A\|15A\|20A\|30A\|40A\|50A\|60A\|85A\|100A
YK-DD24S13.8**	24v	13.8V	5A\|10A\|15A\|20A\|30A\|40A\|50A\|60A
YK-DD24S19**	24V	19V	5A\|10A\|15A
YK-DD36S12**	36V	12V	5A\|10A\|15A\|20A\|30A\|50A\|60A
YK-DD48S5**	48V	5V	5A\|10A\|15A\|20A
YK-DD48S12**	48V	12V	5A\|10A\|15A\|20A\|30A\|40A\|50A\|60A
YK-DD48S13.8**	48V	13.8V	5A\|10A\|15A\|20A\|30A\|40A\|50A\|60A
YK-DD48S19**	48V	19V	5A\|8A\|10A
YK-DD48S24**	48V	24V	3A\|5A\|10A\|15A\|20A\|30A\|40A\|50A
YK-DD60S12**	60V	12V	5A\|10A\|15A
YK-DD60S24**	60V	24V	5A\|10A
BOOST DC-DC CONVERTER MODEL LIST
Model Series	Input-V	Output-V	Output Current
YK-DD12S24**	12V	24V	1A\|2A\|3A\|5A\|8A\|10A\|15A\|20A\|25A\|30A\|40A\|50A
YK-DD12S19**	12V	19V	5A\|8A\|10A\|15A\|20A
YK-DD12S28**	12V	28V	3A\|5A\|8A\|10A\|15A\|20A\|25A\|30A\|40A
YK-DD12S48**	12V	48V	1A\|2A\|3A\|4A\|8A\|10A\|15A\|20A
YK-DD24S48**	24V	48V	3A\|5A\|10A\|20A\|30A\|40A
YK-DD24S36**	24V	36V	5A
BUCK& BOOST DC-DC CONVERTER MODEL LIST
Model Series	Input-V	Output-V	Output Current
YK-DD12S12**	8-40V	12V	1A\|2A\|3A\|5A\|6A\|10A\|15A\|20A\|25A
YK-DD12S13.8**	8-40V	13.8V	3A\|5A\|10A\|15A\|20A\|25A
YK-DD24S24**	9-40V	24V	2A\|3A\|4A\|6A\|10A\|15A
