  • 1 Phase Converter 5KVA 4000W Frequency Converter 50HZ to 60HZ
  • Move the mouse over the graph to enlarge the picture
  • 1 Phase Converter 5KVA 4000W Frequency Converter 50HZ to 60HZ 1 Phase Converter 5KVA 4000W Frequency Converter 50HZ to 60HZ 1 Phase Converter 5KVA 4000W Frequency Converter 50HZ to 60HZ 1 Phase Converter 5KVA 4000W Frequency Converter 50HZ to 60HZ 1 Phase Converter 5KVA 4000W Frequency Converter 50HZ to 60HZ

1 Phase Converter 5KVA 4000W Frequency Converter 50HZ to 60HZ

USD1561-1615

  • AC input
  • Single-phase 220VAC 50Hz/60Hz
  • AC output Phase
  • Single-phase
  • Frequency
  • 47Hz~70Hz、50Hz、60Hz、400Hz(optional )
  • Customization
  • Customized logo (Min. Order: 300 Sets)

    Customized packaging (Min. Order: 300 Sets)

    Graphic customization (Min. Order: 300 Sets)

  • Protection
  • Trade Assurance

    On-time Dispatch Guarantee

    Refund Policy

  • Product Details

    Quick Details

    Model (YK-BP):
    YK-BP8005
    Output capacity (KVA):
    5KVA
    Circuit mode:
    IGBT/PWM pulse width modulation mode
    AC input:
    Single-phase 220VAC 50Hz/60Hz
    AC output Phase:
    Single-phase
    AC output Voltage:
    0~150V
    AC output Voltage:
    151~300V
    Frequency:
    47Hz~70Hz、50Hz、60Hz、400Hz(optional )
    Dimensions (cm):
    43*85*52CM
    Weight(Kg):
    68KG
    Product Name:
    China Professional Manufacturer 1 Phase Converter 5KVA 4000W Frequency Converter 50HZ to 60HZ
    Warranty:
    1 Year
    Color:
    silvery

    Product Description

    Programmable dynamic output voltage

    High precision frequency stabilizing and voltage stabilizing, key-press quick

    Adjustment voltage and frequency

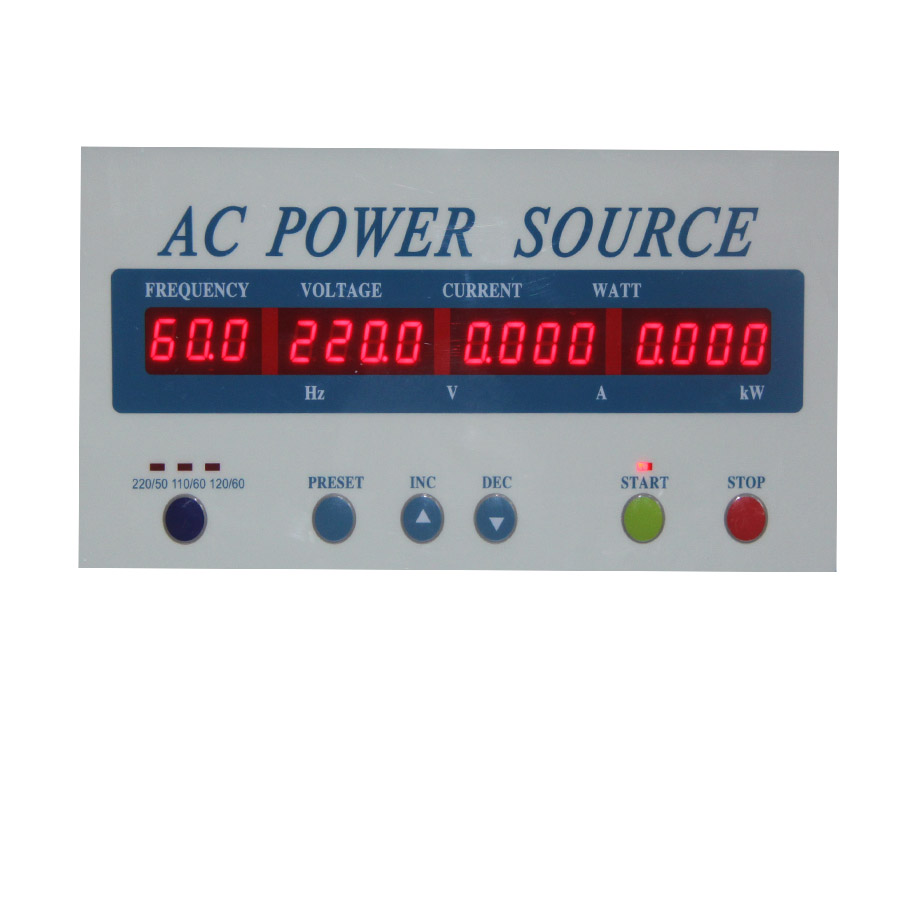

    High precision display: voltage, current, frequency and active power

    Unique time setting function, control output time 0~16 hours adjustable

    Unique voltage frequency group shortcut output mode 220V/50Hz, 110V/60Hz and 120V/60Hz

    Output frequency: 4763Hz(400Hz optional)

    Output voltage: 0~300V can adjust and simulate voltages from all countries in the world

    It has multiple protections of overvoltage, over current, overload, over temperature and alarm function

    Product Parameters

    Model (YK-BP)

    YK-BP 8001

    YK-BP 8002

    YK-BP 8003

    YK-BP 8005

    YK-BP 8006

    YK-BP 8010

    Output capacity (KVA)

    1

    2

    3

    5

    6

    10

    Circuit mode

    IGBT/PWM pulse width modulation mode

    AC input

    Single-phase 220VAC 50Hz/60Hz

    AC output

    Phase

    Single-phase

    Voltage

    Low range

    0~150V

    High range

    151~300V

    Frequency

    47Hz~70Hz50Hz60Hz400Hz(optional )

    Max
    current

    Voltage low range

    8.4

    16.8

    25

    42

    50

    84

    Voltage
    high range

    4.2

    8.4

    12.5

    21

    25

    42

    Frequency stability rate

    ≤±0.1%

    Load voltage stabilizing rate

    ≤±0.5%

    Waveform distortion degree

    ≤2%(resistance load)

    Response time

    ≤2ms

    Indication resolution

    Digit frequency

    4 digits display, resolution 0.1Hz

    Digit voltage

    4 digits virtual value display, resolution 0.1V

    Digit current

    4 digits virtual value display, resolution 0.01A

    Digit power

    4 digits virtual value display, resolution 1W

    Protection

    overvoltage, over current, overload, over temperature and short-circuit, as well as automatic jump protection and alarm device

    Cooling

    Forced fan cooling

    Security regulation

    Inslation resistance

    500VDC/200MΩ

    Compression
    resistance insulation

    1800VAC/5mA/1min

    Working temperature

    0~45

    Working humidity

    Relative 090% non-coagulation state

    Dimensions (cm)

    43*18*44

    43018*47

    43*85*52

    55*74*52

    Weight(Kg)

    32

    37

    66

    68

    80

    145

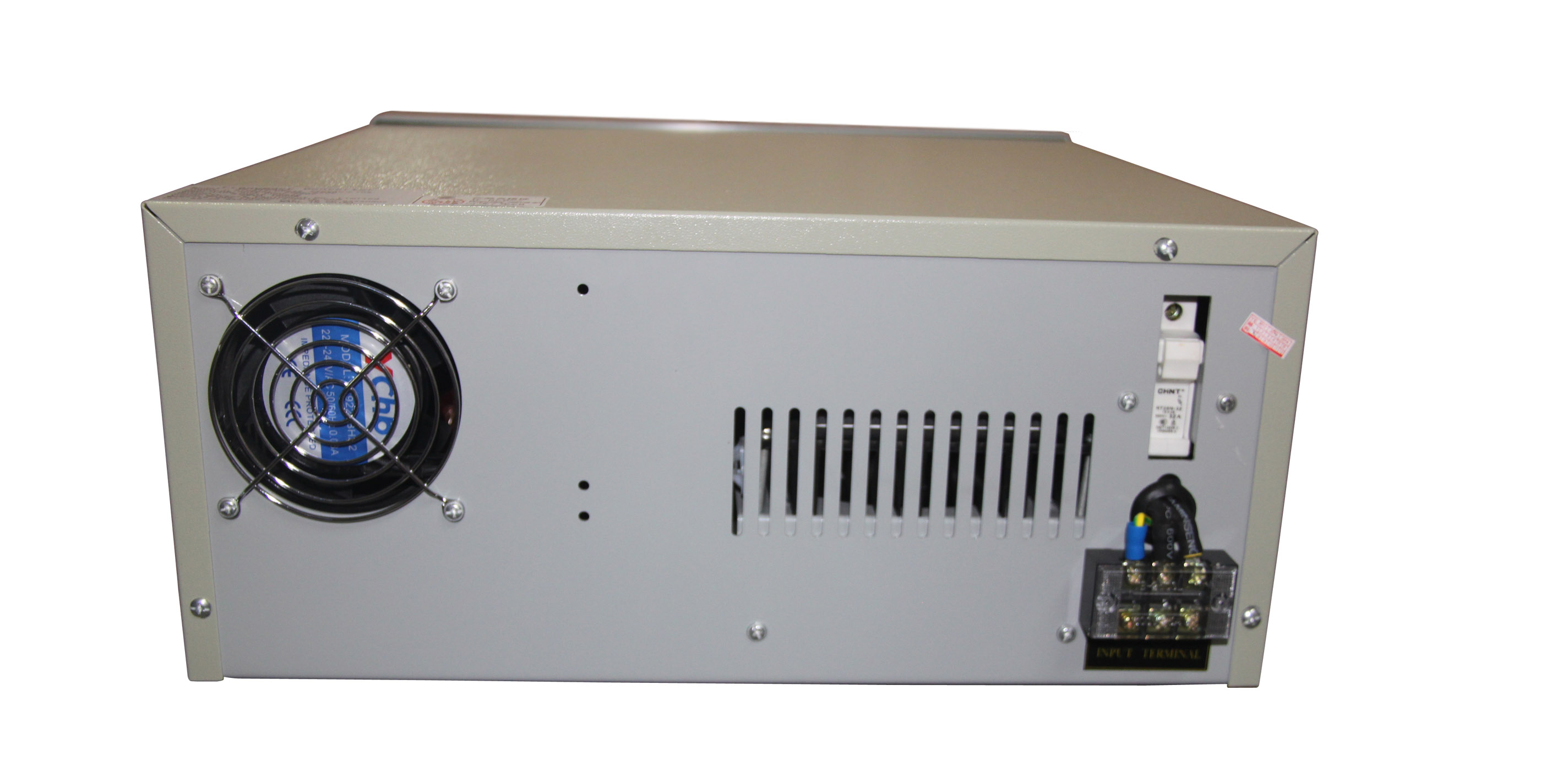

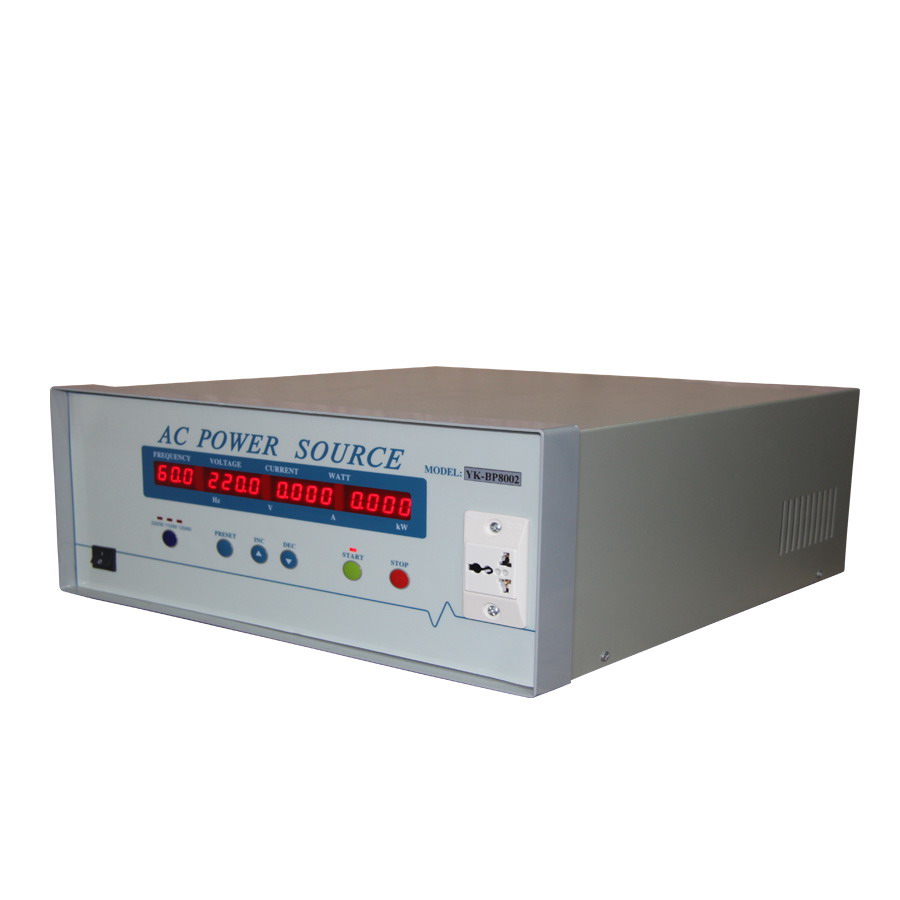

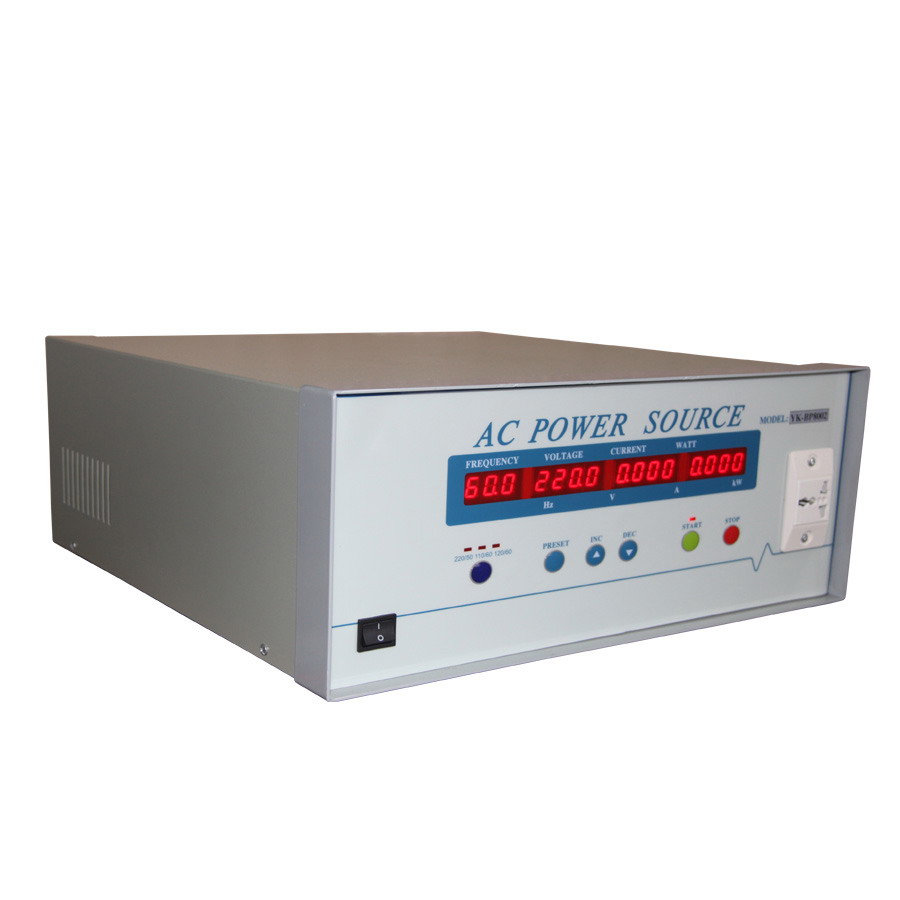

    Details Images

    How to choose the right model of frequency converter YUCOO Manufacture?

    Answer:

    Please check below table and find the different service in different specification

    For 3 phase output , it should be choose YK-BP83 Series

    For 400hz output , should be choose YK-BP88 Series, as YK-BP80 Series and YK-BP81 Series 400hz output did not support long time operating

    If the frequency converter should be working in vessel, please let us know before purchase

    If you can not choose the right one, please tell us detail for your application then we can recommend the right model for you


    Model

    Input voltage

    Output voltage

    AC Input frequency

    AC output Phase voltage

    Output frequency

    Output capacity

    Output adjust type

    YK-BP81 Series

    1phase/3 phase

    1 phase

    50/60hz

    0-150V

    0-300V

    50/60hz, 45-70hz, 400hz option

    0-200kva

    Knob type

    YK-BP80 Series

    1phase/3 phase

    1 phase

    50/60hz

    0-150v

    151-300v

    47-63hz

    220v/50hz, 110v/60hz, 120v/60hz

    0-200kva

    Press key type

    YK-BP83 Series

    1phase/3 phase

    3 phase

    50/60hz

    0-150V

    0-300V

    50/60hz, 45-70hz, 400hz option

    0-600kva

    Knob type

    YK-BP88 Series

    1phase/3 phase

    1phase/3 phase

    50/60hz

    0-150V

    0-300V

    400hz for military or aircraft

    0-600kva

    Knob type
