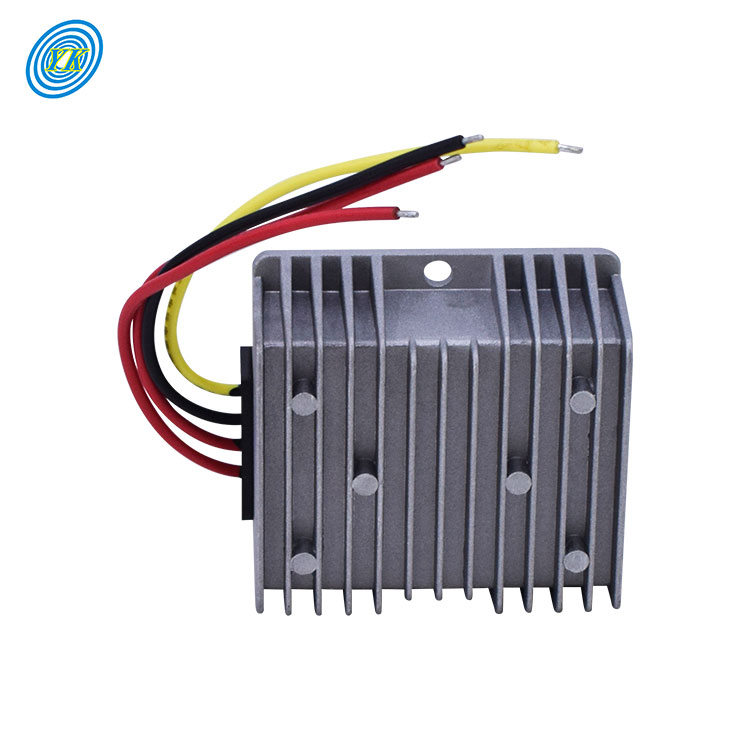

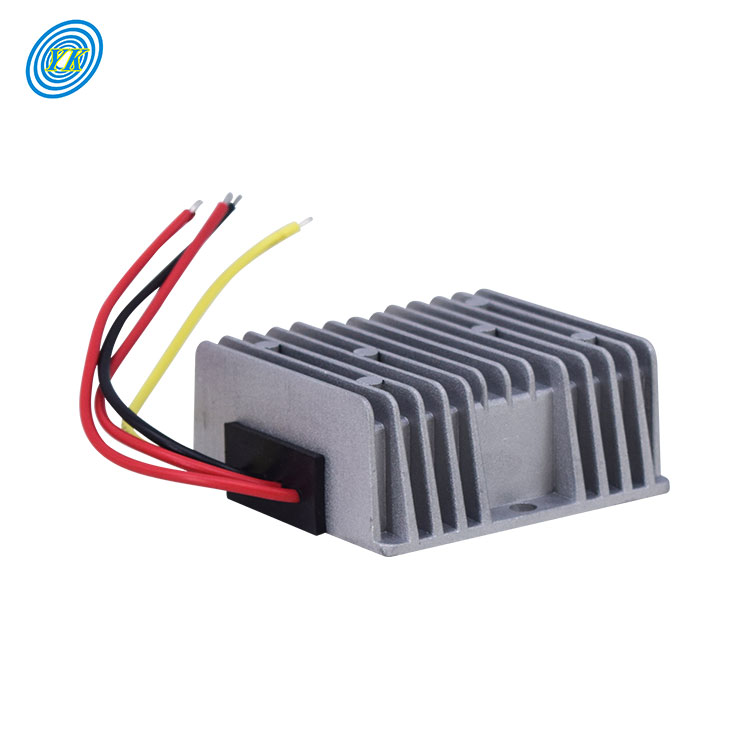

YUCOO ac to dc converter 60vac to 12vdc for electric bike voltage regulator converter 3a 36w

USD12-14.4

Input Voltage

60VAC

Output Voltage

12VDC

Output Power

36W

Customization

Customized logo (Min. Order: 300 Sets)

Customized packaging (Min. Order: 300 Sets)

Graphic customization (Min. Order: 300 Sets)

Protection

Trade Assurance

On-time Dispatch Guarantee

Refund Policy

Product Details

Quick Details

Product Description

1. 100% full power & stable current output

2. 100% Imported components

3. 100% waterproof & anti-shock protection, Ultra compact size, light weight

4. Certificates: CE/RoHS

5. Waterproof level: IP68

6. Aluminum shell, epoxy potting, Cooling by free air convection,

7. Protections: Over-current, Over-voltage, Over-temperature, Over-load and

8. Short-circuit, Auto-recovery when device is back to normal operating

9. Non-Isolated Module

10. 1 year warranty, lifetime up to 100,000 hours.

Product Parameters

Model	YK-AD60S1204
Input rated voltage	60VAC
Input voltage range	30-61VAC
Efficiency	93% (half load)
Output voltage	12VDC
Output current	4Amps
Output rated power	48 Watts
Output peak power	125%
Voltage regulation	<;;;;;;1%
Load regulation	<;;;;;;2%
Ripple (full load test)	150mV (full load)
No-load current	60mA @24V input
Working Temperature	-20°c ~ +80°c
Waterproof rating	IP 68
Protections	Over-temperature, Over-voltage
Machine size	747432MM
N. Weight	250g
Cooling way	Free air convection
Certifications	CE, RoHS
Others	Carton packing

Detail Images

AD-24S12 (3).jpg

Recommend Products Range

BUCK DC-DC CONVERTER MODEL LIST
Model Series	Input-V	Output-V	Output Current
YK-DD1224S5**	12V/24V	5v	3A\|5A\|10A\|15A\|20A\|30A\|40A\|50A\|60A
YK-DD24S12**	24v	12v	1.5A\|3A\|5A\|8A\|10A\|15A\|20A\|30A\|40A\|50A\|60A\|85A\|100A
YK-DD24S13.8**	24v	13.8V	5A\|10A\|15A\|20A\|30A\|40A\|50A\|60A
YK-DD24S19**	24V	19V	5A\|10A\|15A
YK-DD36S12**	36V	12V	5A\|10A\|15A\|20A\|30A\|50A\|60A
YK-DD48S5**	48V	5V	5A\|10A\|15A\|20A
YK-DD48S12**	48V	12V	5A\|10A\|15A\|20A\|30A\|40A\|50A\|60A
YK-DD48S13.8**	48V	13.8V	5A\|10A\|15A\|20A\|30A\|40A\|50A\|60A
YK-DD48S19**	48V	19V	5A\|8A\|10A
YK-DD48S24**	48V	24V	3A\|5A\|10A\|15A\|20A\|30A\|40A\|50A
YK-DD60S12**	60V	12V	5A\|10A\|15A
YK-DD60S24**	60V	24V	5A\|10A
BOOST DC-DC CONVERTER MODEL LIST
Model Series	Input-V	Output-V	Output Current
YK-DD12S24**	12V	24V	1A\|2A\|3A\|5A\|8A\|10A\|15A\|20A\|25A\|30A\|40A\|50A
YK-DD12S19**	12V	19V	5A\|8A\|10A\|15A\|20A
YK-DD12S28**	12V	28V	3A\|5A\|8A\|10A\|15A\|20A\|25A\|30A\|40A
YK-DD12S48**	12V	48V	1A\|2A\|3A\|4A\|8A\|10A\|15A\|20A
YK-DD24S48**	24V	48V	3A\|5A\|10A\|20A\|30A\|40A
YK-DD24S36**	24V	36V	5A
BUCK& BOOST DC-DC CONVERTER MODEL LIST
Model Series	Input-V	Output-V	Output Current
YK-DD12S12**	8-40V	12V	1A\|2A\|3A\|5A\|6A\|10A\|15A\|20A\|25A
YK-DD12S13.8**	8-40V	13.8V	3A\|5A\|10A\|15A\|20A\|25A
YK-DD24S24**	9-40V	24V	2A\|3A\|4A\|6A\|10A\|15A
