  • YUCOO 3kva 60hz to 50hz 47Hz~70Hz 400hz frequency converter 3 phase frequency converter
  • Move the mouse over the graph to enlarge the picture
  • YUCOO 3kva 60hz to 50hz 47Hz~70Hz 400hz frequency converter 3 phase frequency converter YUCOO 3kva 60hz to 50hz 47Hz~70Hz 400hz frequency converter 3 phase frequency converter YUCOO 3kva 60hz to 50hz 47Hz~70Hz 400hz frequency converter 3 phase frequency converter YUCOO 3kva 60hz to 50hz 47Hz~70Hz 400hz frequency converter 3 phase frequency converter YUCOO 3kva 60hz to 50hz 47Hz~70Hz 400hz frequency converter 3 phase frequency converter

YUCOO 3kva 60hz to 50hz 47Hz~70Hz 400hz frequency converter 3 phase frequency converter

USD2400-2500

  • Output Power
  • 3KVA(2400W)
  • Input Voltage
  • 220VAC 50/60HZ or 380VAC 50/60HZ
  • Output voltage
  • Low range(0-150V); High range(151-300V)
  • Customization
  • Customized logo (Min. Order: 300 Sets)

    Customized packaging (Min. Order: 300 Sets)

    Graphic customization (Min. Order: 300 Sets)

  • Protection
  • Trade Assurance

    On-time Dispatch Guarantee

    Refund Policy

  • Product Details

    Quick Details

    Product name:
    frequency converter
    Model Number:
    YK-BP8303
    Input Voltage:
    Single-phase 220VAC 50Hz/60Hz or 3 Phase 380Vac 50Hz/60Hz
    Output Voltage:
    0~300VAC
    Output Power:
    3KVA(2400W)
    Frequency:
    47Hz~70Hz,50Hz,60Hz,400Hz
    Working temperature:
    0-45℃
    Working humidity:
    Relative 0-90%
    Dimensions:
    43*65*65cm
    Weight:
    95KG


    Product Description

    1. Programmable dynamic output voltage;

    2. High precision frequency stabilizing and voltage stabilizing, key-press quick;

    3. Adjustment voltage and frequency ;

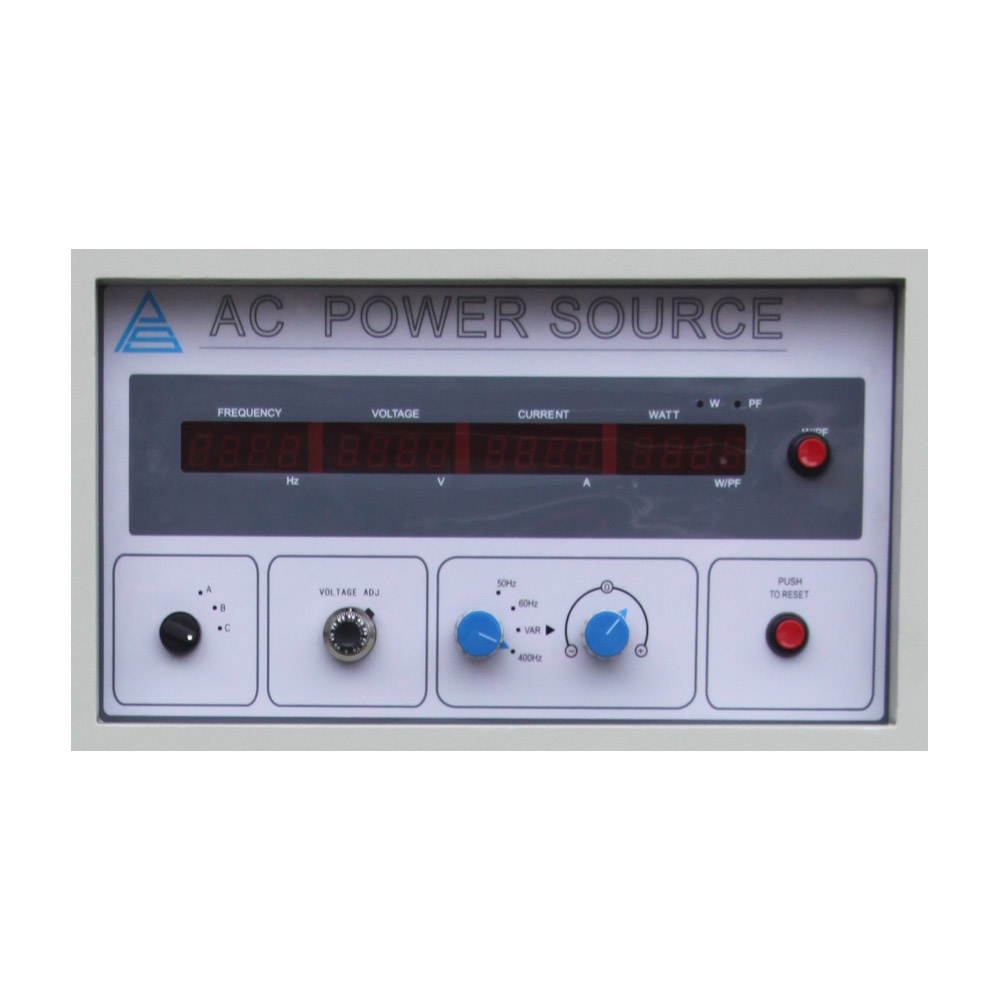

    4. High precision display: voltage, current, frequency and active power;
    5. Unique voltage frequency group shortcut output mode 220V/50Hz, 110V/60Hz and 120V/60Hz ;
    6. Output frequency: 47~63Hz(400Hz optional) ;
    7. Output voltage: 0~300V can adjust and simulate voltages from all countries in the world ;

    8. It has multiple protections of overvoltage, over current, overload, over temperature and alarm function

    Product Parameters

    Model NumberYK-BP8303

    Output capacity

    (KVA)

    3KVA

    Output Rate power

    (KW)

    2400W

    Circuit mode

    IGBT/PWM pulse width modulation mode

    AC input

    Single-phase 220VAC 50Hz

    AC output Phase

    Tri-phase

    AC output Low

    range

    0-150V Adjustable or 0-260V Adjustable

    AC output High

    range

    0-300V Adjustable line Voltage 0-520V

    Adjustable

    Frequency

    50HZ,60HZ, 400HZ can be optional, 45hz-70hz can be adjustable

    AC output Max

    current Low range

    84A

    AC output Max

    current high range

    42A

    Frequency stability

    rate

    ≤±0.1%

    Load voltage

    stabilizing rate

    ≤±0.5%

    Waveform distortion degree

    ≤2%(resistance load)

    Response time

    ≤2ms

    Digit frequency

    4 digits virtual value display, resolution 0.1hz

    Digit voltage

    4 digits virtual value display, resolution 0.1V

    Digit current

    4 digits virtual value display, resolution 0.01A

    Digit power

    4 digits virtual value display, resolution 1W

    Protection

    overvoltage,over current,overload,over temperature and short-circuit,as well as automatic jump protection and alarm device

    Cooling

    Forced fan cooling

    Insulation resistance

    500VDC/200MΩ

    Compression

    resistance insulation

    1800VAC/5mA/min

    Working temperature

    0-45℃

    Working humidity

    Relative 0-90%

    Dimensions

    43*65*65CM

    N.W.

    95KG

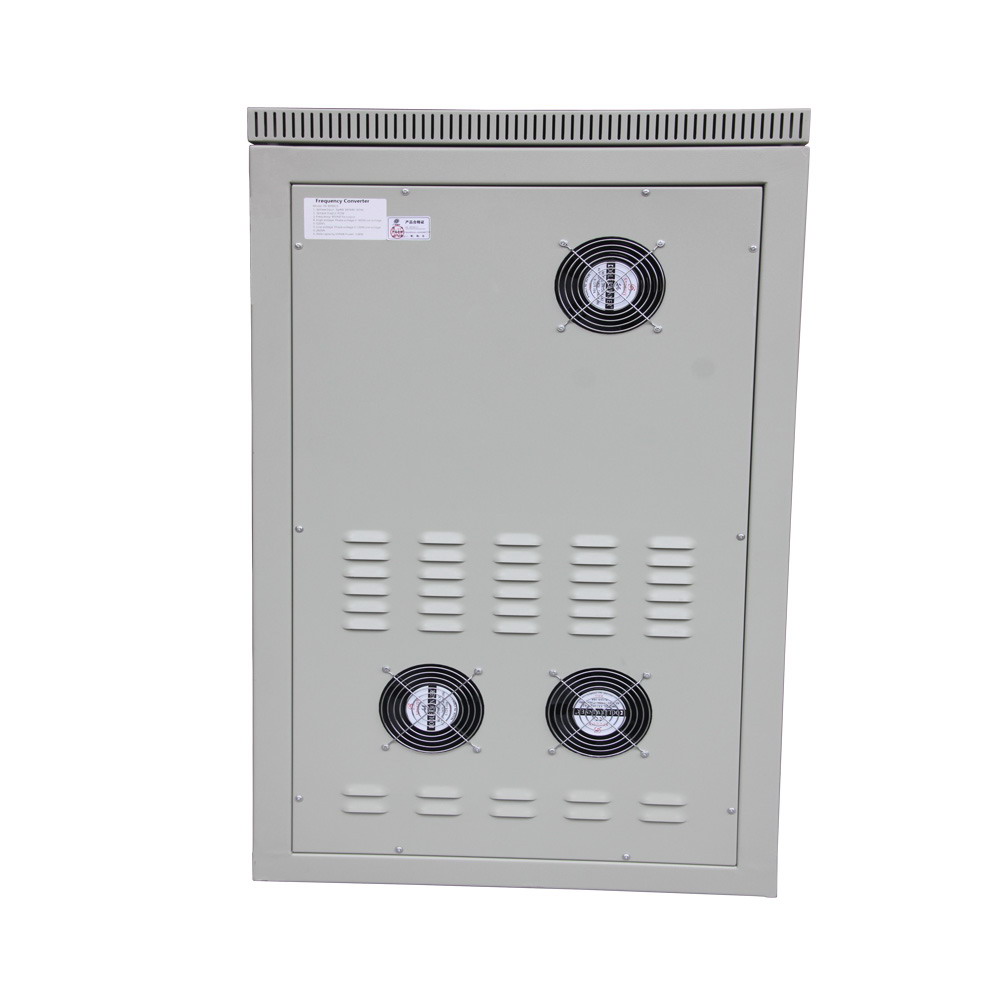

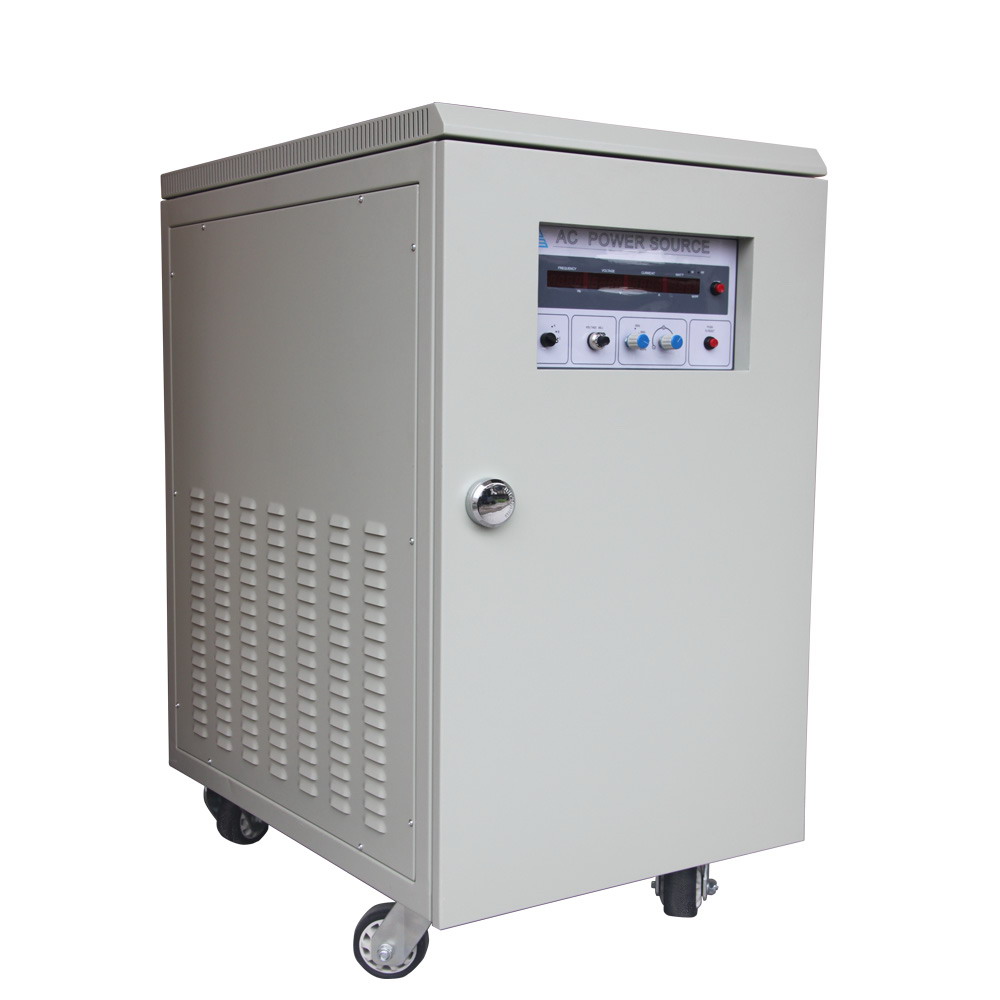

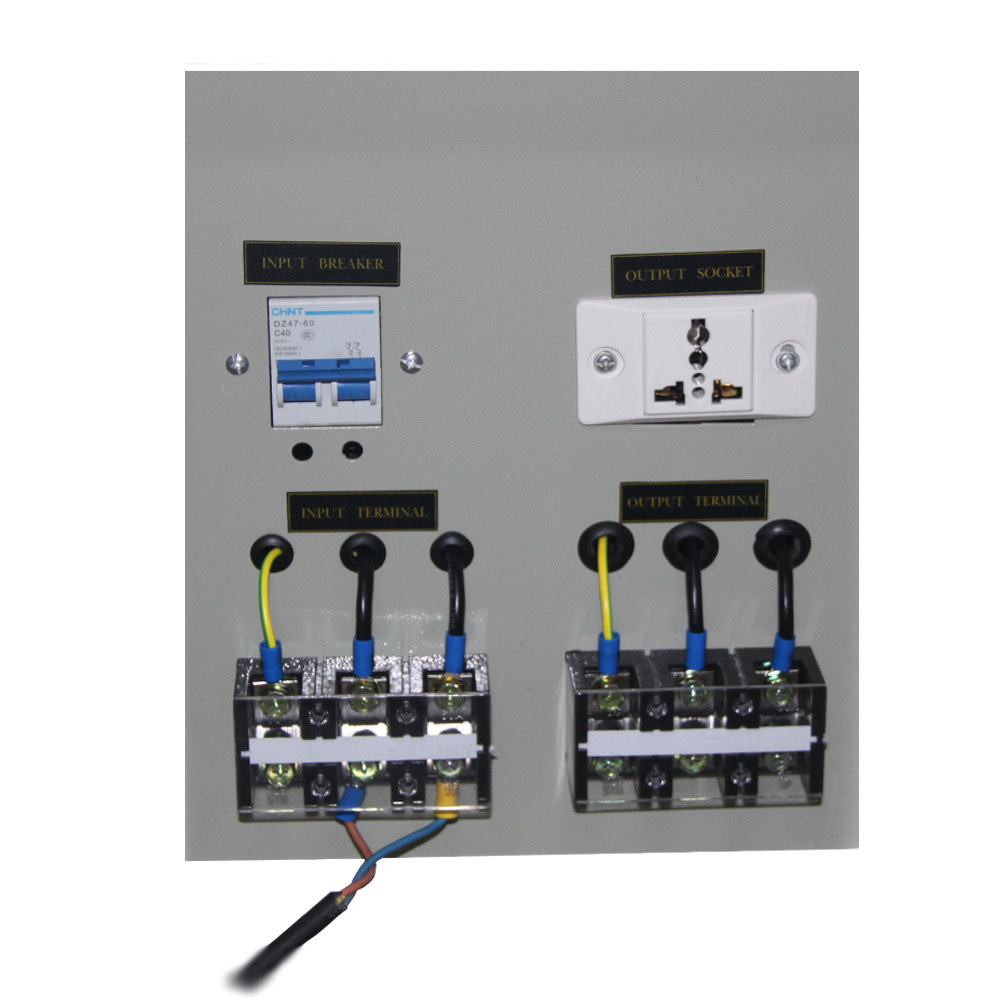

    Details Images
