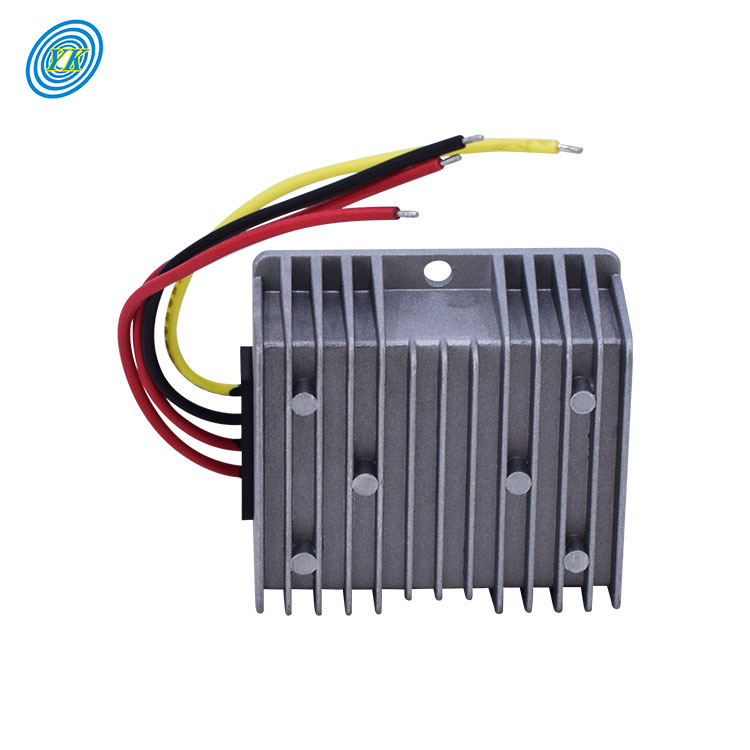

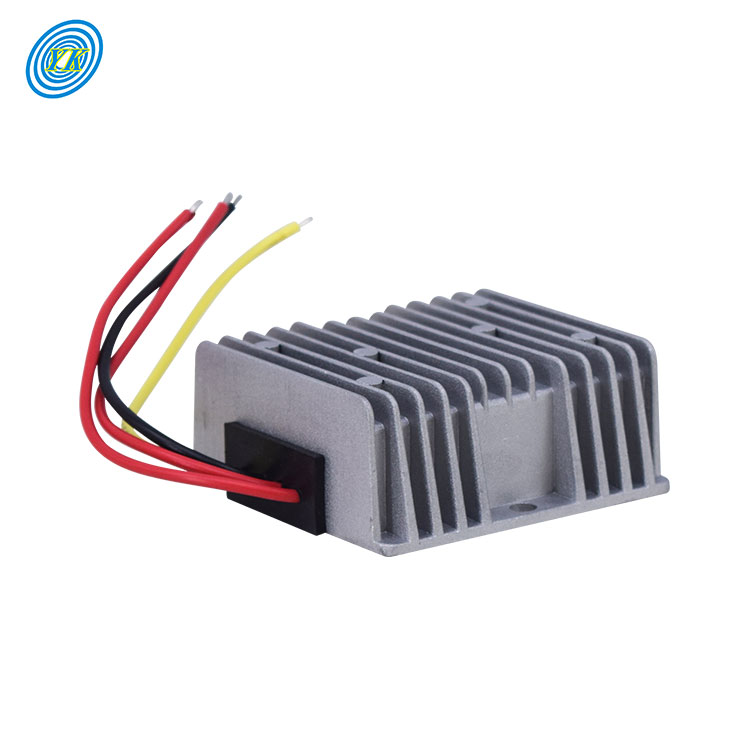

  • YUCOO ac to dc converter 36vac to 12vdc for electric bike voltage regulator converter 5a 60w
  • Move the mouse over the graph to enlarge the picture
  • YUCOO ac to dc converter 36vac to 12vdc for electric bike voltage regulator converter 5a 60w YUCOO ac to dc converter 36vac to 12vdc for electric bike voltage regulator converter 5a 60w YUCOO ac to dc converter 36vac to 12vdc for electric bike voltage regulator converter 5a 60w

YUCOO ac to dc converter 36vac to 12vdc for electric bike voltage regulator converter 5a 60w

USD11.25-13.5

  • Input Voltage
  • 36VAC
  • Output Voltage
  • 12VDC
  • Output Power
  • 60W
  • Customization
  • Customized logo (Min. Order: 300 Sets)

    Customized packaging (Min. Order: 300 Sets)

    Graphic customization (Min. Order: 300 Sets)

  • Protection
  • Trade Assurance

    On-time Dispatch Guarantee

    Refund Policy

  • Product Details

    Quick Details

    Product Name:
    AC DC Converter
    Input voltage:
    36VAC(17-36VAC)
    Output voltage:
    12VDC
    Current:
    5A
    Certificate:
    CE ROHS
    Protections:
    Over-current / voltage / load protection
    Warranty:
    1 YEAR
    Working temperature:
    -40 ~ +80°c
    Output rated power:
    60Watts
    Size:
    74*74*32mm


    Product Description

    1. 100% full power & stable current output

    2. 100% Imported components

    3. 100% waterproof & anti-shock protection, Ultra compact size, light weight

    4. Certificates: CE/RoHS

    5. Waterproof level: IP68

    6. Aluminum shell, epoxy potting, Cooling by free air convection,

    7. Protections: Over-current, Over-voltage, Over-temperature, Over-load and

    8. Short-circuit, Auto-recovery when device is back to normal operating

    9. Non-Isolated Module

    10. 1 year warranty, lifetime up to 100,000 hours.

    Product Parameters

    Model

    YK-AD36S1205

    Input rated voltage

    36VAC

    Input voltage range

    17-36VAC

    Efficiency

    93% (half load)

    Output voltage

    12VDC

    Output current

    5Amps

    Output rated power

    60 Watts

    Output peak power

    125%

    Voltage regulation

    <;;;;;;;;1%

    Load regulation

    <;;;;;;;;2%

    Ripple (full load test)

    150mV (full load)

    No-load current

    60mA @24V input

    Working Temperature

    -20°c ~ +80°c

    Waterproof rating

    IP 68

    Protections

    Over-temperature, Over-voltage

    Machine size

    74*74*32MM

    N. Weight

    250g

    Cooling way

    Free air convection

    Certifications

    CE, RoHS

    Others

    Carton packing


    Detail Images

    AD-24S12 (3).jpg

    photobank (3).jpg

    Recommend Products Range

    BUCK DC-DC CONVERTER MODEL LIST
    Model SeriesInput-VOutput-VOutput Current
    YK-DD1224S5**12V/24V5v3A|5A|10A|15A|20A|30A|40A|50A|60A
    YK-DD24S12**24v12v1.5A|3A|5A|8A|10A|15A|20A|30A|40A|50A|60A|85A|100A
    YK-DD24S13.8**24v13.8V
    5A|10A|15A|20A|30A|40A|50A|60A
    YK-DD24S19**24V19V5A|10A|15A
    YK-DD36S12**36V12V5A|10A|15A|20A|30A|50A|60A
    YK-DD48S5**48V5V5A|10A|15A|20A
    YK-DD48S12**48V12V5A|10A|15A|20A|30A|40A|50A|60A
    YK-DD48S13.8**48V13.8V5A|10A|15A|20A|30A|40A|50A|60A
    YK-DD48S19**48V19V5A|8A|10A
    YK-DD48S24**48V24V3A|5A|10A|15A|20A|30A|40A|50A
    YK-DD60S12**60V12V5A|10A|15A
    YK-DD60S24**60V24V5A|10A
    BOOST DC-DC CONVERTER MODEL LIST
    Model SeriesInput-VOutput-VOutput Current
    YK-DD12S24**12V24V1A|2A|3A|5A|8A|10A|15A|20A|25A|30A|40A|50A
    YK-DD12S19**12V19V5A|8A|10A|15A|20A
    YK-DD12S28**12V28V3A|5A|8A|10A|15A|20A|25A|30A|40A
    YK-DD12S48**12V48V1A|2A|3A|4A|8A|10A|15A|20A
    YK-DD24S48**24V48V3A|5A|10A|20A|30A|40A
    YK-DD24S36**24V36V5A
    BUCK& BOOST DC-DC CONVERTER MODEL LIST
    Model SeriesInput-VOutput-VOutput Current
    YK-DD12S12**8-40V12V1A|2A|3A|5A|6A|10A|15A|20A|25A
    YK-DD12S13.8**8-40V13.8V3A|5A|10A|15A|20A|25A
    YK-DD24S24**9-40V24V2A|3A|4A|6A|10A|15A
